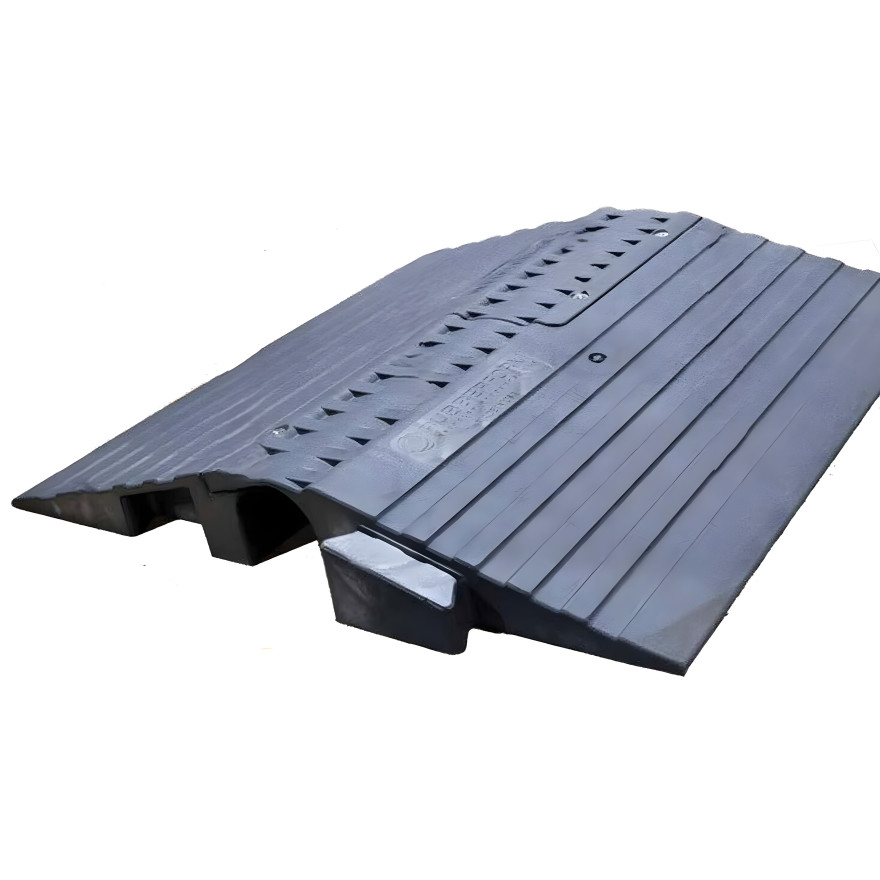

Heavy-Duty Curb Ramp and 4 Inch Pipe/Hose Protector

Give curbs, raised edges, and surface lines the kind of no-drama access they deserve. This heavy duty curb ramp is built for driveways, job sites, parking lots, loading areas, temporary access points, and other curbside spots where wheels need a smoother path. The modular 2-piece setup pulls double duty, so you can use it for curb access or switch it into a bridge-style pipe and hose ramp when you need to protect lines running across the ground. It is a tough, practical worksite access ramp for vehicles, carts, equipment, trailers, and other wheeled traffic.

Specifications

• Shared Construction and Performance:
  • Convertible design functions as either a curb ramp or a pipe and hose protector
  • 2-piece interlocking design
  • Supports loads up to 34,000 lbs per axle
  • Includes hardware kit with 4 flat head hex screws and 4 molded-in hex jam nuts for assembly
  • Textured ribbed surface for improved traction
  • Gradual ramp angle provides smooth passage for vehicles and equipment
  • Suitable for temporary or permanent installation
  • Indoor and outdoor rated
  • UV resistant
  • Resists heat, cold, rain, snow, and ice
  • Will not crack, crush, crumble, or corrode
  • Made from 100% recycled post-industrial TPO material
  • Made in the USA
• Curb Ramp Configuration:
  • Approximately 72" Long
  • Approximately 19.5" Deep
  • Approximately 5" High
  • Creates a 6-foot-wide curb ramp for vehicles, trailers, carts, and equipment

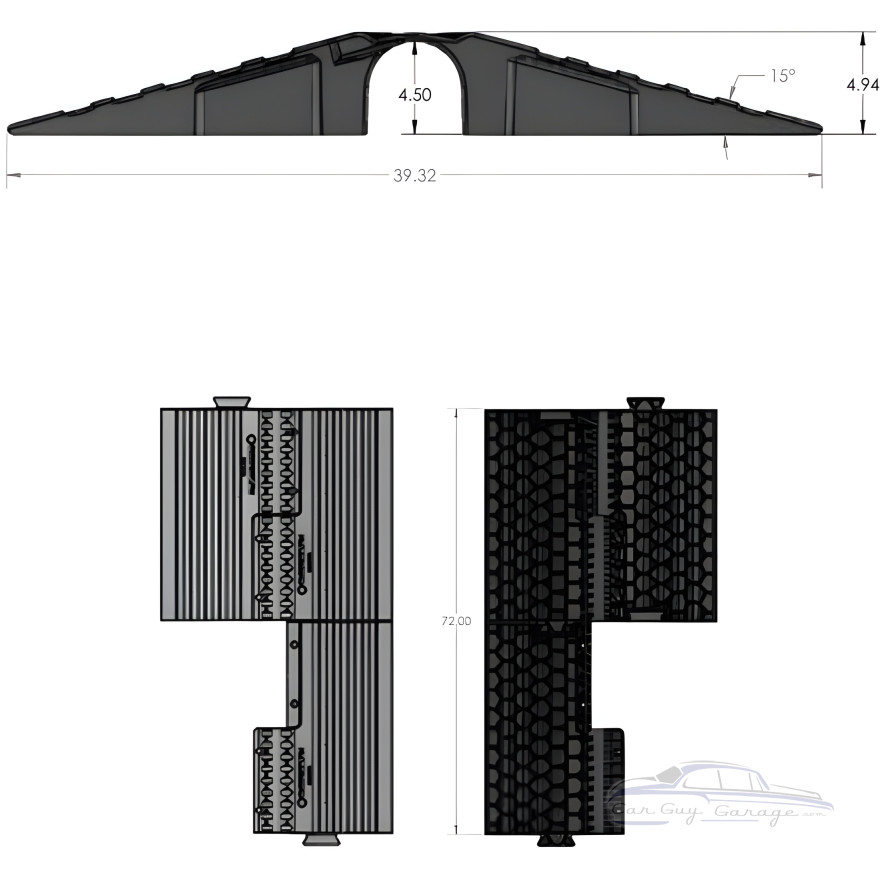

• Pipe & Hose Ramp Configuration:
  • Approximately 39" Wide
  • Approximately 36" Long
  • Approximately 5" High
  • Fits pipes, hoses, cables, and conduit up to 4.5" in diameter

Configuration Notes

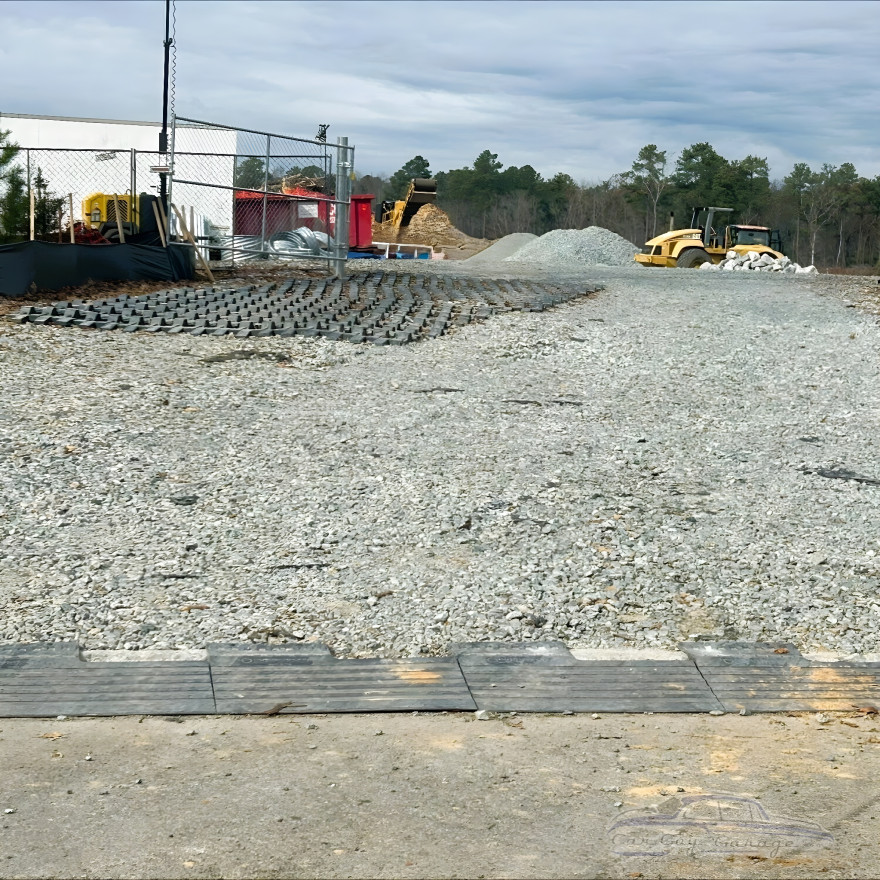

Set the two ramp pieces side by side when you need a long vehicle curb ramp for crossing a street curb, driveway lip, or raised edge. When the job changes, reconfigure the same pieces into a hose protector ramp that bridges over pipes, hoses, cables, electrical conduit, and similar lines. That flexibility makes it especially handy anywhere traffic patterns change or different work areas need protection from day to day.

Whether you are cleaning up a curbside access problem or keeping lines protected from wheeled traffic, this ramp brings serious versatility without overcomplicating the job. Keep it in place for a long-term setup or use it where temporary access is needed, then reconfigure it when the next project calls.
