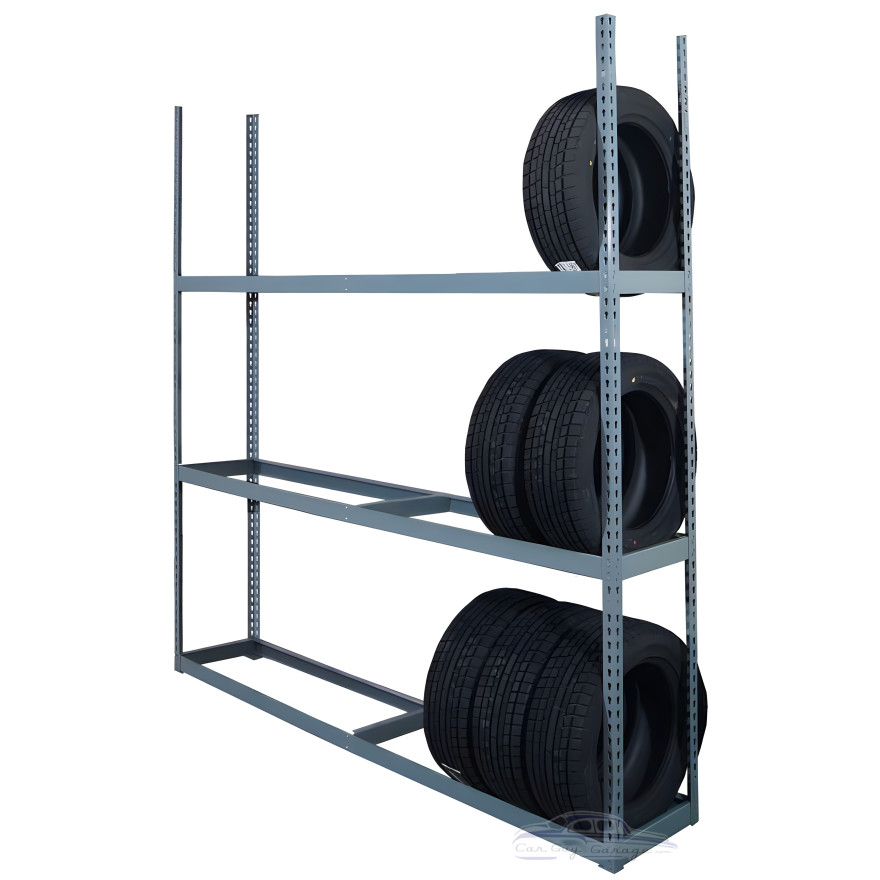

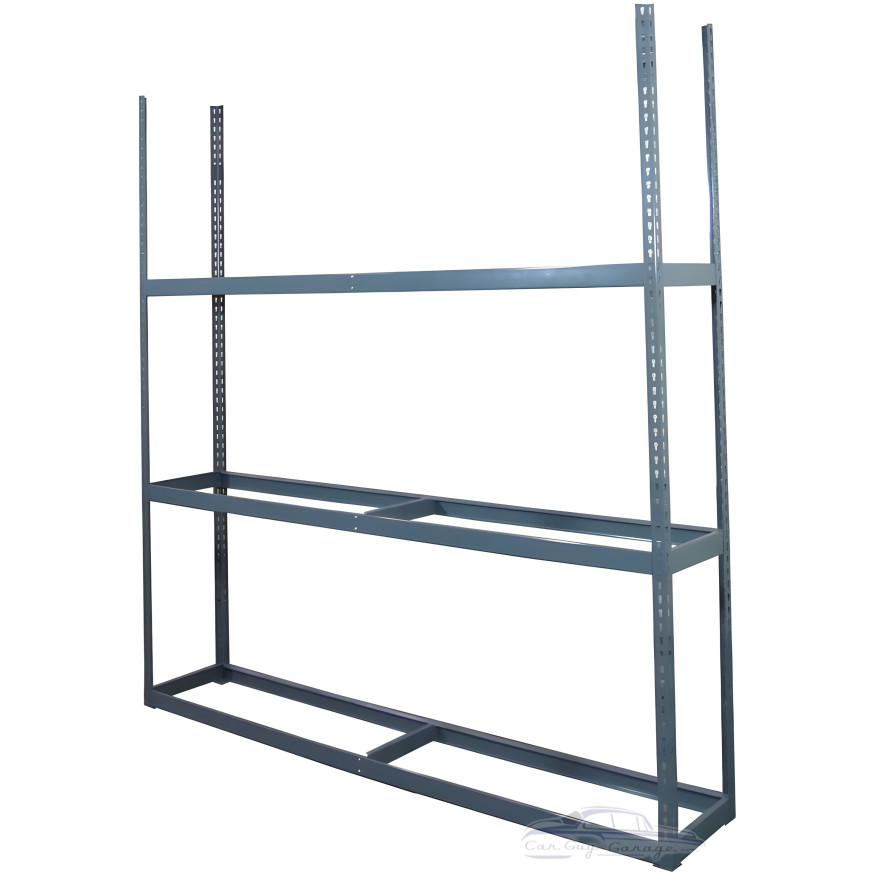

This three tier tire rack can hold from 27 to 33 tires depending on the size of the tire. The total weight capacity of this tire storage unit is 1,500 lbs.
- 92" wide x 16.5" deep x 92" tall
- Each shelf can hold 9 to 11 tires for a total of 27 to 33 tires
- Load capacity 1500lbs
- Shelves are adjustable in 1" increments to accommodate different tire sizes.
- 45 degree angle beams to properly position the tire in the rack and avoid long-term marks.
- Overall tire diameter 28 inches max.
- Weight 66 lbs
- Powder coated grey paint UV resistant
Included in the box:
- Upright beam (4x)
- Front beam (6x)
- Side beam (6x)
- Center bracket (3x)
- Wall bracketLeft & right (2x)
- Back-to-back bracket (2x)to connect two racks back-to-back
- Square bracket (4x)to connect two racks side to side
- Hardware kit
- Assembly instructions
