Telescoping Overhead Vehicle Exhaust Hose Drop Kit, 7 ft to 16 ft 9 in

Build a cleaner, safer service bay without turning your ceiling layout into a project that eats the whole afternoon. This garage exhaust hose kit gives exhaust shops, muffler shops, and busy garages an out-of-the-box overhead drop that is easy to use when a vehicle rolls in and easy to stow when the job is done. It extends from 7' to 16'9" and is only 19 lbs, giving you practical reach across the service lane without a bulky feel. If you want a straightforward shop exhaust hose system for real garage work, this one keeps things simple and effective.

It works on all gas vehicles because you can change out the stock adapter (included) for any of our other 3" threading adapters or for a Y assembly in dual exhaust applications. The unit comes fully assembled and installs in minutes to a 5" duct, so you can get your overhead setup moving fast. Use a quality reducer adapter if you have a different size. When the hose is collapsed, it stores neatly overhead so the bay stays clear for the next job.

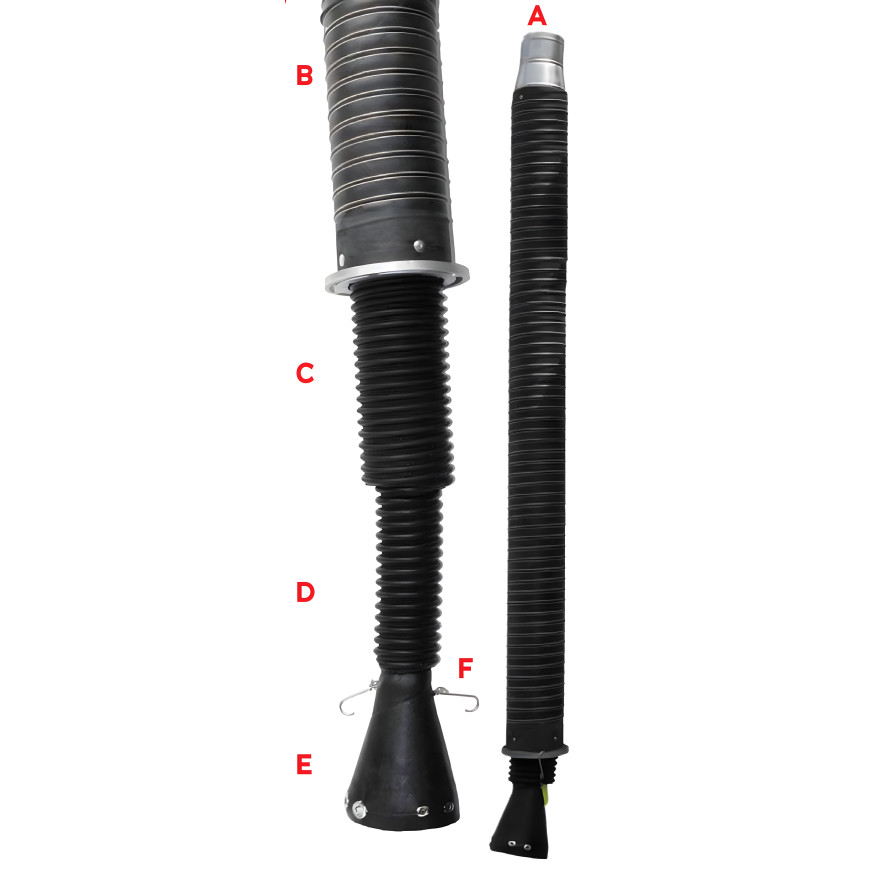

Specifications

• Overall:
  • Extends from 7' to 16'9"
  • Weight: 19 lbs
  • Comes fully assembled
• A - Duct Connector:
  • Duct connector designed for a 5" "T" or stub
  • Extend "T" or stub to increase length of unit
• B - 6" Hose Section:
  • 6" I.D. X 5' 6" high-temp fabric and wire hose
• C - 4 1/2" Hose Section:
  • 4 1/2" I.D. x 5' 6" Crushproof 600F Garage Exhaust Hose
• D - 3" Hose Section:
  • 3" I.D. x 5' 6" Crushproof 600F Garage Exhaust Hose
• E - RA300 Universal Adapter:
  • Comes with three locking snaps that allow unit to be shut off
  • Will not damage any vehicle and is 100% Crushproof
• F - Storage Hooks:
  • Hooks above RA300 hold unit up through holes in a metal ring at the base of the 6" section

For a no-drama overhead vehicle exhaust extraction hose setup, this kit brings the reach, adapter flexibility, and clean stow-away design shops appreciate. It is a solid fit for bays that need exhaust control without overcomplicating the install.
