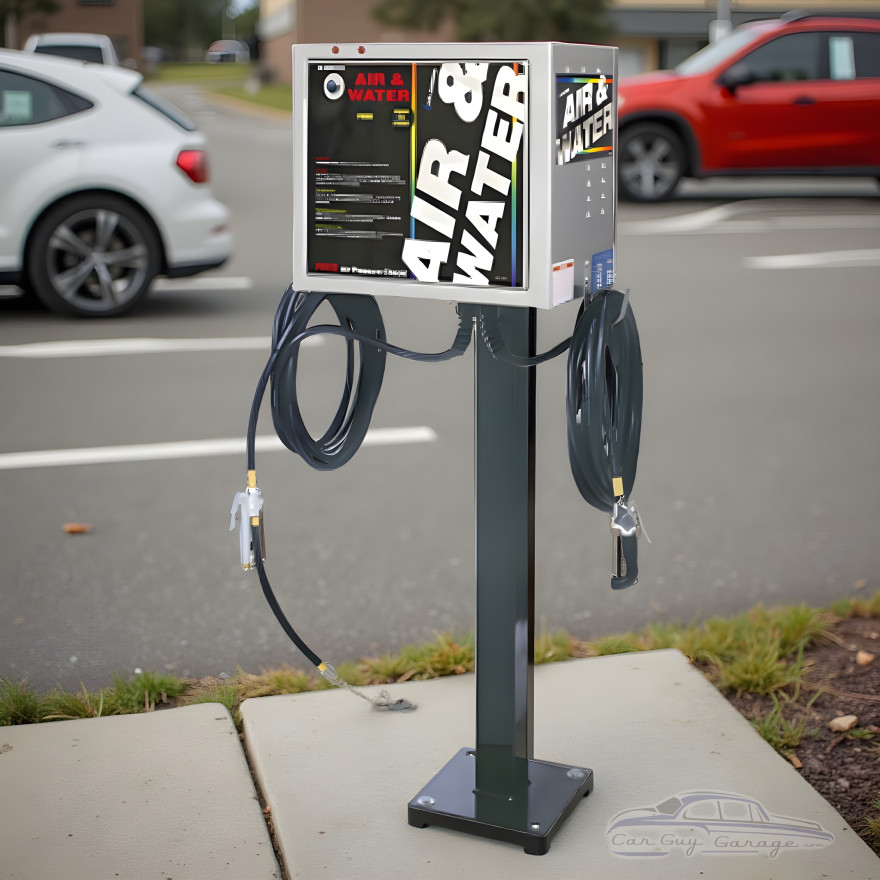

Service Station Free Air and Water Machine with Mount Options

Give drivers an easy stop for tire air and water with this Service Station Free Air and Water Machine. It is built for facilities that want customers to fill tires, top off windshield wash containers, or even top off a radiator without sending them hunting for help. Both services can be used at the same time, so one customer is not holding up the next when traffic is steady. For a station owner or facility looking for a dependable air and water machine for gas station service areas, this unit keeps the experience simple and useful.

Specifications

• Main Unit:
  • Product Manual (PDF)
  • Requires 10 AMP service
  • Dimensions: 16.5"H x 12.5"D X 18.5"W
  • Both services can be used simultaneously
  • GAST 3/4 HP air compressor
  • Cut resistant 25' x 1/4" wire braid service station quality air hose with 90 PSI inline air gauge
  • 25' water hose with water spout
  • High security lock bar system
  • SSAC 110 volt non-accumulating timer standard
  • Voltage: 120
  • Water: True
  • Air: True
  • ETL: True
  • Shipping Weight: 125.00 LBS
• Optional Pedestal:
  • Powder coated mild steel pedestal
  • Electrical conduit is run through the center of the stand
  • Dimensions: 47.25 H x 10.75 W x 10 D (32" from ground to bottom of mounting plate)

Mount and option details

This unit is available as a Wall Mount without pedestal or as a Pedestal Mount, so you can match the layout of your service area. The standard setup is a free use unit, not a coin-op unit, making it a good fit when customer convenience is the priority. Additional optional timers, coin mechs, cycle counters, and coin counters are available if your location needs a different operating setup. The optional "Free Service" wireless push button remote control allows customers to receive free use of either service for the normal cycle time, and it can be activated by the attendant or the cashier with the push of a button for customer convenience.

With air, water, security features, and flexible mounting choices in one clean package, this commercial tire inflator with gauge is ready for real service station use. Pick the mount configuration that fits your site and give customers a fast, familiar stop they will appreciate.
