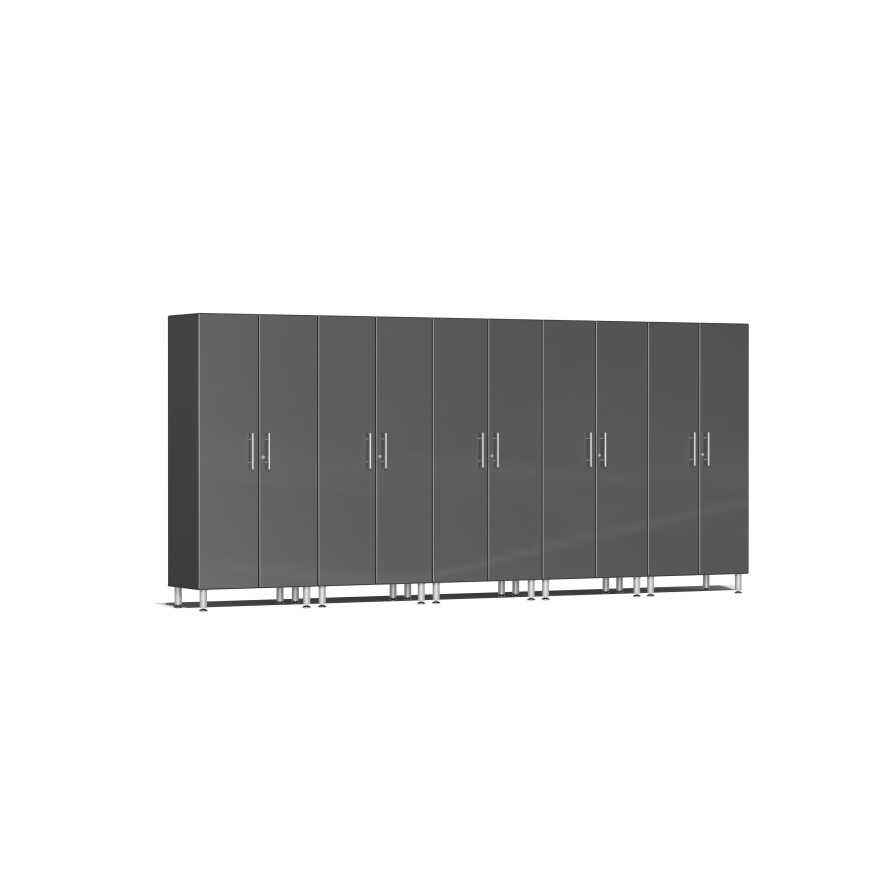

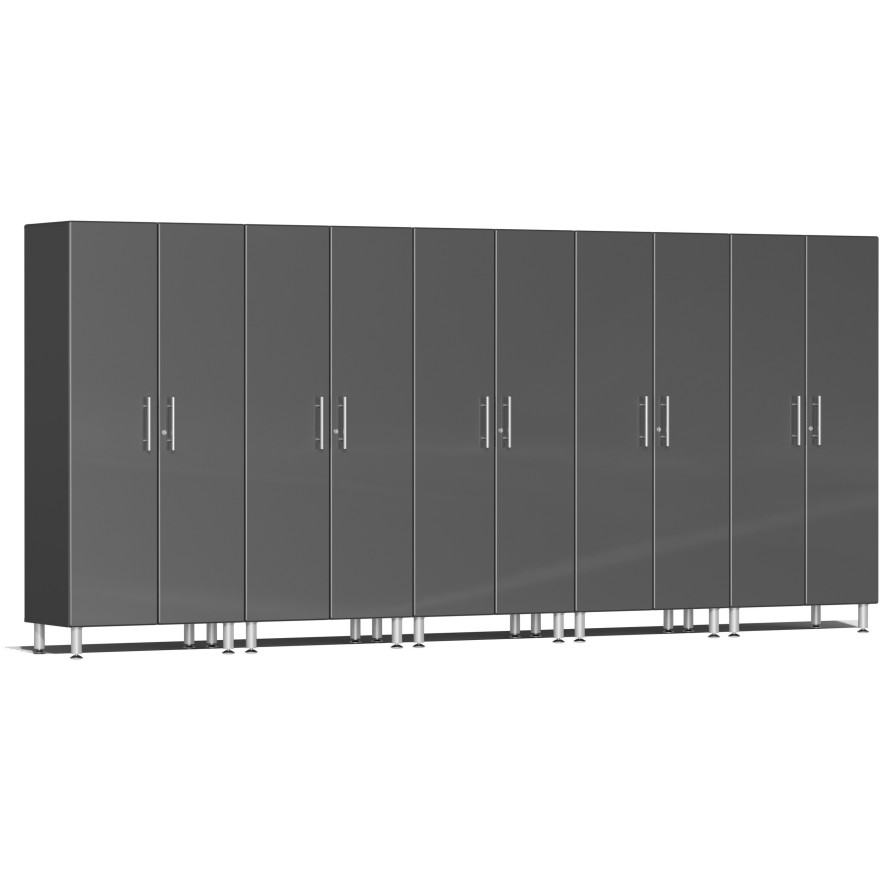

Grey Modular 5 Piece Garage Storage Closets

The 5 Piece Garage Storage Closets featured in Graphite Grey Metallic measures in at approximately 177.5" wide, 21" deep, 80" high. That is roughly 14 feet 10 inches wide, 1 foot 9 inches deep, and 6 feet 8 inches high. The cabinets are made from medium-density fiberboard (MDF) and particle board (PB) with a PVC laminate coating. The doors of the cabinet are made from MDF coated with the Graphite Grey Metallic laminate. The rest of the cabinet is made from particle board laminated in a charcoal grey. These cabinets are purpose-built for garage storage and organization. The total weight of this cabinet set is 987.75 lbs. They are delivered by truck freight as a signature required curbside delivery.

Also available in: • white • silver • red • black

Want a larger or smaller set of these storage closets? Here are sets ranging from 1 to 10 closets

This Ulti-Mate Garage cabinet set includes:

• 5 of the Grey Modular 2-Door Tall Storage Closets
  • Width 35.5 inches (almost 3 feet)
  • Depth 21 inches (1 foot 9 inches), excluding the handles.
  • Maximum height 82 inches (6 feet 10 inches) with adjustable feet fully raised
  • Minimum height 80 inches (6 feet 8 inches) with adjustable feet fully lowered
  • Weight 197.55 lbs.
  • Each cabinet ships as two boxes:
    • Box 1: 80 x 24.8 x 5.5 inches at 154.32 lbs.
    • Box 2 (the doors): 72.2 x 19.7 x 2 inches at 52.91 lbs.
  • Assembly instructions (PDF)
  • Assembly instructions (Video)
    [x] Close

  • Interior Width 33.9 inches
  • Interior Depth 19.4 inches
  • Interior Height 72.7 inches
  • Assembled depth with doors open 38.7 inches
  • 3 Shelves: 1 fixed in the center and 2 adjustable. If you wish to remove the fixed center shelf for accommodating taller items such as fishing rods, golf clubs, brooms, and tools, you can do so. However, please note that without the fixed shelf, the cabinet will require additional bracing. This can be achieved by either securing it to the back wall or attaching it to another closet cabinet placed adjacent to it.
  • Additional shelves available
  • Optional wall cleat set (not included) secures closet to the wall
  • If you want to go further up the wall above the closet there are two optional cabinets that are the same width as this closet:
    • Oversized Partitioned 2-Door Wall Cabinet is the same 35.5 inch width with a shallower depth at 14 inches. This adds 23.6 inches of height.
    • 2-Door Oversized Base Cabinet is the same 35.5 inch width and 21 inch depth. See example photos in this set of cabinets. To use it above the closet cabinet you can remove the legs and mount the doors up-side-down so it matches as a large wall cabinet. This cabinet adds 29 inches of height with the legs removed.

• Strong 3/4 inch MDF doors with particle board cabinet construction made specifically for garage storage
• Easy to grab 9.8 inch tall by .75 inch thick brushed stainless steel door handles
• Adjustable soft-close hinges keeps doors from slamming
• Unique metallic PVC laminate adds a touch of sparkle to the door finish
• Textured PVC laminate grey finish on the sides, top, bottom, and back for easy cleaning
• The individual cabinets are modular and not connected to each other so they can be arranged however you prefer
• Strong 6mm angled steel shelf supports included for adjustable shelves
• Four 6 inch aluminum feet with 2 inch leveling screws keep each base cabinet level and away from ground moisture
• The cabinet doors are secured with keyed alike locks
• Industrial strength 1 inch thick shelves with a 200 lb. load rating each
• Wire management system on closets and two door base cabinets provides easy access to wall outlets
• CARB (California Air Resources Board) approved to help keep your home safe

LTL Freight Shipment: Delivery is curbside at the end of your driveway on weekdays during normal business hours. The freight company will contact you to schedule a delivery window, and you must reply to confirm it. Someone must be present to inspect and sign for the delivery. If you're out of town or unable to accept the delivery once it reaches your local terminal, storage fees may be charged because of the delay.

NOTICE: Can not ship to: Alaska, Delaware, Hawaii, Louisiana, Maine, Massachusetts, Mississippi, New Hampshire, New York, Rhode Island, or Vermont

Please Note: In extremely hot unventilated garages, such as those in desert climates, the PVC laminate may separate from the wood base over time.
