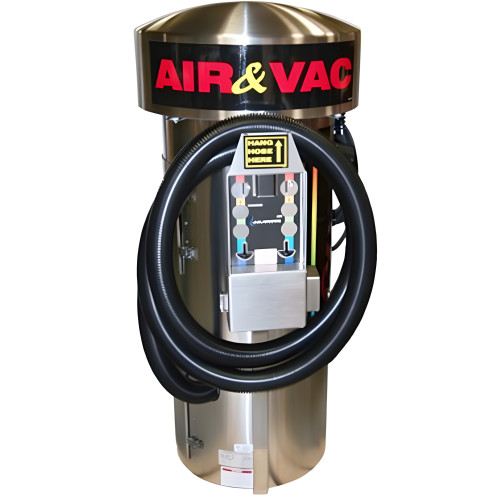

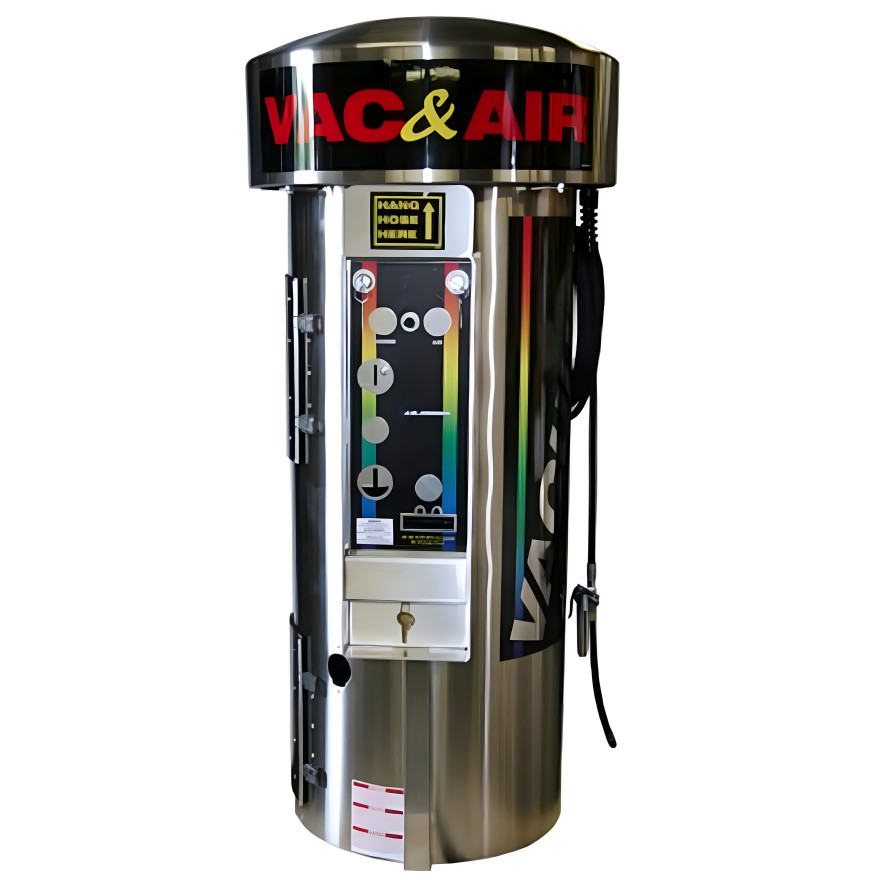

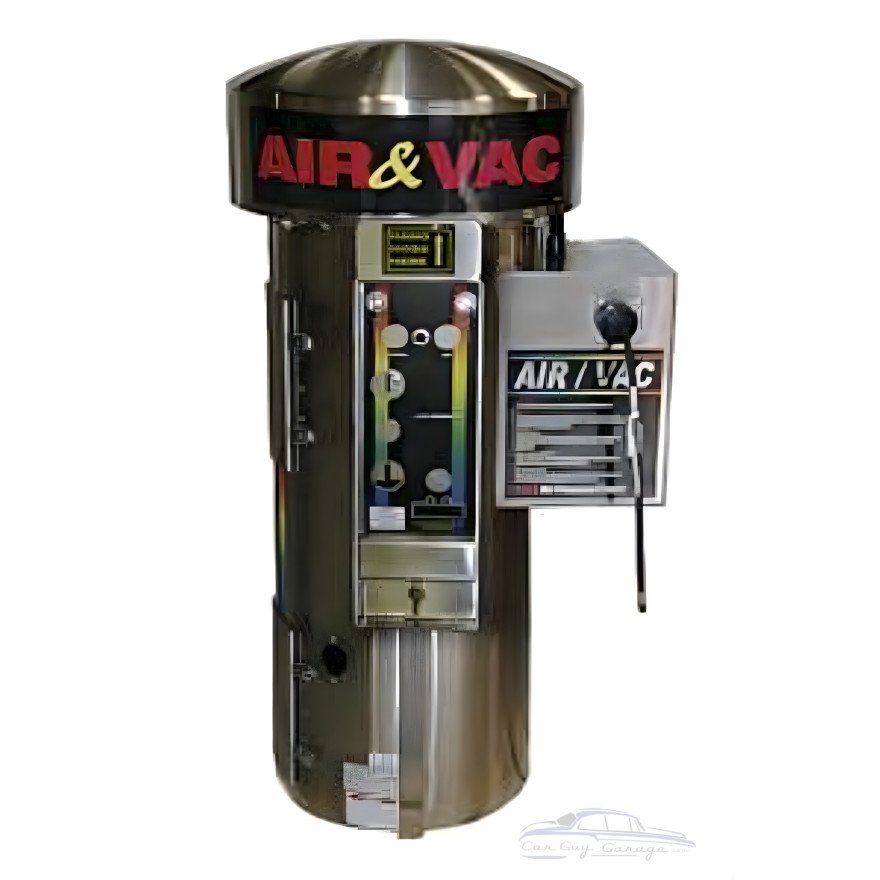

Vacuum and Air Machine - 120V 20A 2 Motor Vac and 10A Tire Air

Deliver powerful, commercial-grade air and vacuum service with this highly customizable unit built around the reliable GAST 3/4 HP compressor and dual 1.6 HP vacuum motors. Whether you're offering free use, coin-operation, or full-service coin and bill acceptance, this machine is designed to adapt to your needs while delivering dependable performance and a great customer experience.

Flexible Usage Options (included where selected)

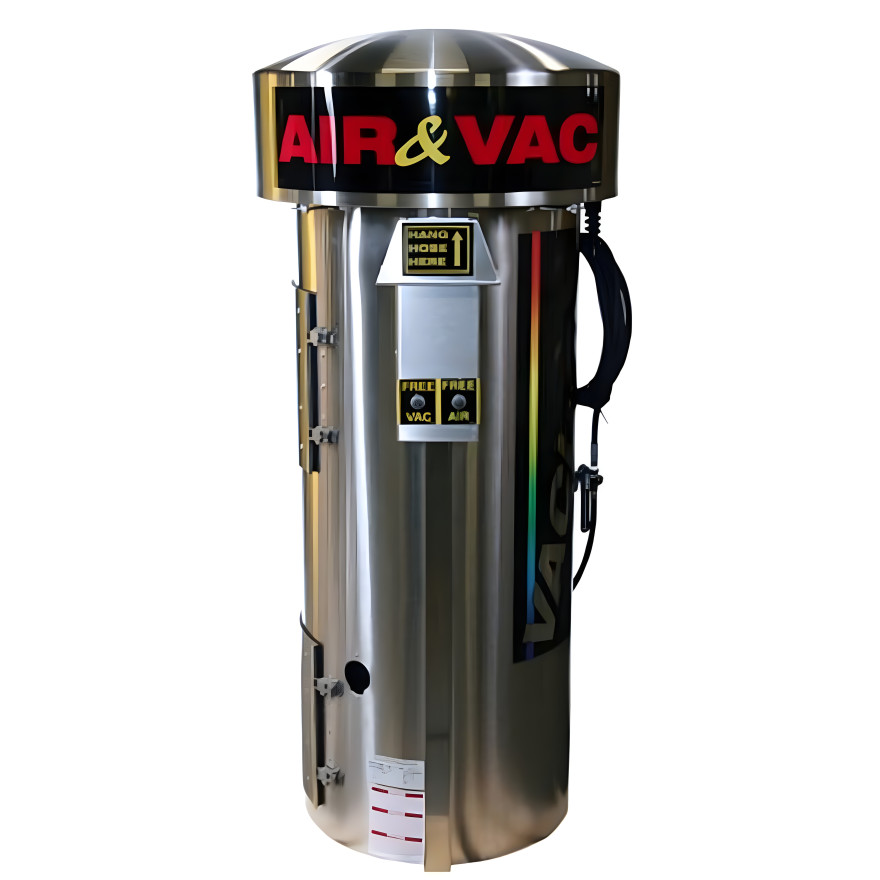

• Free Use: Toggle switch operation ideal for complimentary air and vacuum service.
• Coin-Operated: Includes Imonex coin acceptors and 940-quarter capacity coin box.
• Coin + Bill Operated: Adds $1/$5 bill acceptor and secure bill vault holding up to 400 bills.

The vacuum is optionally equipped with a high-capacity bill acceptor and coin box to ensure uninterrupted operation in busy environments. The bill acceptor is designed to take both $1 and $5 bills, accommodating up to 400 bills in total for extended use before needing to be emptied. Additionally, the coin box offers a robust capacity, holding up to 940 quarters, equivalent to $235.00. These features reduce the frequency of cash collection and maintenance, allowing operators to focus on providing seamless service to customers.

Here's what comes standard:

• Dual 1.6 HP, 120V vacuum motors – provides strong suction power for efficient cleaning
• GAST 3/4 HP air compressor – delivers reliable air service at 90 PSI
• 25' air hose with built-in 90 PSI air gauge
• 2" x 15' vacuum hose with swivel cuff and heavy-duty nozzle
• 4-bag quick-change vacuum filter system for easy maintenance
• Two service doors for separate access to filter bags and debris clean-out
• Large stainless steel dome for durability and visibility
• Imonex coin acceptor – accepts quarters (standard on coin and bill models)
• Bill acceptor – accepts $1 and $5 bills (standard on coin + bill model)
• Coin box holds up to 940 quarters ($235.00 value)
• 90 PSI gauge and timer system for air service
• 120V configuration – requires (1) 20 AMP and (1) 10 AMP services (220V model available contact us at 800-736-9308)

Here's your options explained:

Decal Color
The vacuum comes standard with black decals, offering a clean and professional appearance. For those looking to add a splash of color or align the machine with a specific brand aesthetic, optional decal colors are available. These options include yellow, blue, and purple, providing a bold and eye-catching look. Opting for these custom decal colors may come with an additional cost. Choosing a unique color can make the machine stand out, draw more attention, and create a more personalized or branded appearance.

Hose Sizes
The difference between a 2" hose and a 1.5" hose comes down to the balance of airflow, suction power, and air velocity. Each option has its own strengths, so the best choice depends on your cleaning needs.

A 2" hose delivers more airflow with 163.5 CFM (Cubic Feet per Minute) and 193.4 Air Watts. This higher CFM moves larger amounts of air, making it ideal for general-purpose cleaning and picking up larger debris. The wider diameter reduces the chance of clogs and allows for faster cleaning, making it the best option for everyday use.

A 1.5" hose increases the speed of the air moving through the hose, known as air velocity, while providing stronger suction with 140.8 CFM and 402.4 Air Watts. The smaller diameter creates more focused suction at the nozzle, making it much more effective at removing stubborn debris from carpet fibers, upholstery, and tight spaces. This makes the 1.5" hose the preferred option for more detailed, precision cleaning tasks.

The 1.5" hose excels in situations where stronger, more focused suction is needed to pull fine particles from deep, textured surfaces or tight spaces. Some of the most common examples include:

• Sand in Carpets: Perfect for pulling out sand and fine dirt deeply embedded in car mats and carpeting, especially after trips to the beach or construction sites.
• Pet Hair in Upholstery: The concentrated suction lifts pet hair from fabric seats, carpet, and upholstery, making it easier to clean vehicles used by pet owners.
• Construction Dust and Fine Debris: Fine dust, powder, and road salt particles are difficult to remove with a 2" hose, but the stronger suction of the 1.5" hose pulls them out with ease.
• Deep Cleaning Car Upholstery and Seat Crevices: The smaller nozzle creates a more concentrated pull, perfect for extracting dirt, crumbs, and other debris lodged in the seams of car seats, cupholders, and other small compartments.
• Tight Spaces and Small Compartments: Ideal for cleaning cupholders, air vents, and small storage areas where the larger 2" hose can't fit.

The 2" hose is better for fast, general-purpose cleaning of large open areas. It's ideal for handling larger debris and for jobs where clogging could be an issue. Here are some of the best use cases:

• General Car Wash Cleaning: Covers larger areas more quickly and moves more total air, making it great for cleaning car floors, seats, and cargo areas.
• Larger Debris: Better for picking up larger items like leaves, pebbles, and larger chunks of debris that might clog a smaller hose.
• Everyday Cleaning: If you want a simple, all-around option for general cleaning, the 2" hose is versatile and effective.

Which Hose Should You Choose?

• 2" Hose = 210 CFM / 415.4 Air Watts - Best for large debris, general cleaning, and faster cleanup of large areas.
• 1.5" Hose = 165.9 CFM / 662.3 Air Watts - Best for sand, pet hair, construction dust, deep cleaning of carpets, upholstery, and small crevices.

Hose Color
You can customize your hose with a variety of color options to match your style or branding. Available colors include red, black, blue, yellow, and green, giving you the flexibility to create a distinctive and eye-catching look. Not all colors are available in every hose size, but if your chosen color isn't available for the selected size, we'll reach out to provide you with alternative options. This ensures you get a hose that fits both your functional needs and visual preferences.

Claw Nozzle Color
The Claw Nozzle is the key component at the end of the hose where suction is concentrated. Designed for optimal performance, it provides strong, focused suction to effectively remove dirt, debris, and other particles from surfaces. You have the option to choose the nozzle color that best suits your style or branding needs. Available color options are black or orange, allowing you to customize the appearance of your cleaning equipment. Both color choices maintain the same level of durability and performance.

Coin Security
Keep your cash safe and secure with our complete Coin Security solution. This all-in-one system provides maximum protection for your coin box, deterring theft and safeguarding your investment. Featuring a durable lock, a reinforced lock bar, and a protective coin box cover, this trio of security components works together to create a powerful barrier against unauthorized access. Each part is crafted with precision and strength to ensure long-lasting performance in even the toughest conditions.

Our Coin Security package includes:

• ABUS Lock: Protect your investment with the durable and secure ABUS Lock. Crafted with a stainless steel body and reinforced with both internal and external stainless steel construction, this lock is built to resist harsh conditions and corrosion. Its shackle is made from hardened steel, providing enhanced resistance to cutting and tampering. The advanced 5-pin tumbler system features pick-resistant mushroom pins, offering an extra layer of protection against unauthorized access. With compact dimensions of 3/4" D x 3/4" W x 13/32", this lock delivers powerful security in a sleek, space-saving design.
• Lock Bar: The Lock Bar adds an essential layer of protection to your coin box. Measuring 8.87 inches long, 1.5 inches wide, and 1/4 inch deep, this sturdy bar works in conjunction with a lock to block access to the coin box. Its robust design serves as a physical barrier, deterring theft and ensuring the security of your cash storage. Built for strength and reliability, the Lock Bar is a simple yet effective solution for safeguarding your investment.
• Coin Box Cover: The Coin Box Cover provides an added layer of protection for your vacuum's coin box. It acts as a deterrent against theft by concealing and safeguarding the coin storage area. Built for durability and ease of use, this cover offers a simple yet effective solution for keeping your profits secure.

Invest in peace of mind with the ultimate Coin Security solution - a reliable defense against theft and tampering. Let this robust system protect your earnings so you can focus on running your business with confidence.

Clean Out
The clean-out options are designed to make emptying the machine faster and more convenient. While not required for operation, they simplify maintenance by providing an easy way to collect and remove debris. Without these options, debris will naturally collect at the bottom of the machine, which can be swept out manually when the access door is opened.

For added convenience, you can choose one of the following clean-out options:

• Rubber Container is a sturdy, reusable option that sits inside the unit to collect dirt, debris, and waste. It features a tapered design with dimensions of 10.709" at the bottom, 18.5" at the top, and 7" in height. This shape allows for easy removal, emptying, and reinsertion. Its rugged construction ensures long-lasting durability, even with frequent use.
• Vinyl Bag is a lightweight, flexible option that also collects debris as the machine operates. It is easy to remove and empty when full, offering a simple, low-maintenance alternative. The vinyl material allows for easy handling and is ideal for those looking for a more flexible cleanup solution.

Both options provide effective debris collection. If you prefer a heavy-duty, reusable option, the Rubber Container is recommended. For a lighter, more flexible option, the Vinyl Bag is a great choice. Regardless of which option you choose, you still have the ability to sweep out the bottom of the machine manually when needed.

Access Door Security
The vacuum features two access doors located on the back of the unit, each serving a specific purpose. The upper door provides access to the vacuum filters, while the bottom door allows access to the debris collection area. To ensure proper operation, both doors must be securely closed and sealed, as this maintains the vacuum's suction power and overall efficiency.

While not required, there are optional security features available to prevent tampering with the access doors and protect the internal components of the machine. These security options provide an extra layer of protection and peace of mind.

The Security Kit offers flexible protection for the access doors. It includes brackets that are pop-riveted onto the machine, allowing you to use a padlock (not included) to secure the doors. This option is available for either or both the top and bottom access doors, depending on the level of security you require. This simple, cost-effective option ensures that unauthorized access is prevented.

The Security Cover provides a more robust, permanent solution. This cover is welded directly onto the machine and comes with a built-in Medeco lock. It conceals and secures the latches for both the upper and lower access doors, offering comprehensive protection against tampering. The integrated lock system ensures only authorized personnel can access the clean-out area and filter bags.

Both security options offer effective protection. Choose the Security Kit for a versatile, padlock-based solution, or opt for the Security Cover for maximum protection with a fully integrated locking system.

Counters
There are two optional counter choices available to help track machine usage and monitor revenue. These non-resettable counters are installed internally to protect them from tampering and environmental damage. You can choose to install one, both, or opt for no counters at all, depending on your specific tracking needs.

The Cycle Counter records every cycle the machine completes. This option provides a clear, permanent record of how often the machine is used, making it useful for tracking usage trends, scheduling maintenance, and understanding customer demand.

The Coin Counter tracks the total number of coins deposited into the machine. This option offers an accurate, non-resettable record of revenue, ensuring transparent tracking of cash intake.

For complete oversight, you can install both counters to monitor both usage frequency and revenue. Alternatively, you may choose to have no counters if tracking usage and deposits isn't a priority for your operation. The internal placement of these counters ensures they remain secure, out of sight, and fully protected.

Upgrade your car wash operation with this Vacuum and Air Machine. It's the perfect blend of power, convenience, and durability. Invest in the best for your customers and your business today!

• Product Manual (PDF)
• (2) 1.6 HP, 120 volt motors
  • Requires (1) 20 AMP and (1) 10 AMP services at 120V (220V model available contact us at 800-736-9308)
• 2 Motors with 2" hose = 163.5 CFM / 193.4 Air Watts
• 2 Motors with 1 1/2" hose = 140.8 CFM / 402.4 Air Watts
• Double service doors offer easy access to clean out area and 4 filter bag system
• Imonex coin acceptor takes quarters
• Coin box holds 940 quarters or $235.00
• Bill acceptor takes $1.00 and $5.00 bills and holds up to 400 bills
