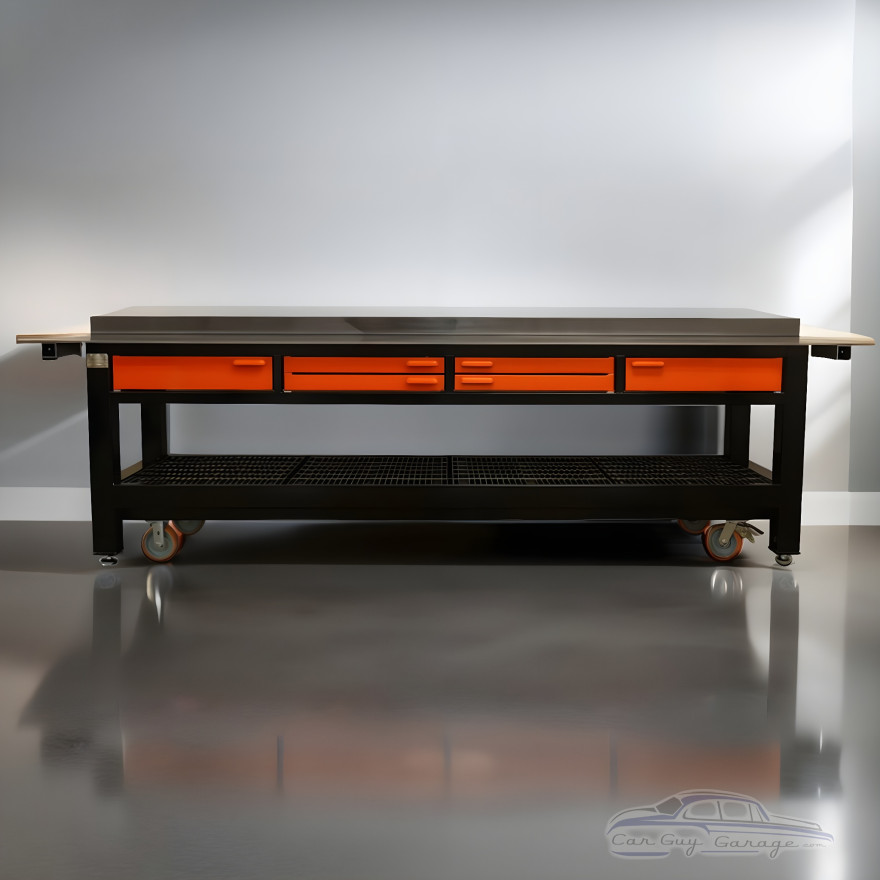

12 ft Heavy-Duty Steel Workbench with 4 Drawers, 8000 lb Capacity

Meet the 12 ft workbench you bring in when the job is bigger than a weekend tune-up. This heavy-duty steel workbench is hand-built from heavy gauge steel with an all-welded frame of structural steel tubing, giving serious shops a stable place to fabricate, wrench, grind, and organize. The 12-foot work surface gives you room to spread out, while the drawers and lower shelf keep tools and bulky gear from taking over the floor. Steel plate top options are left unfinished so you can weld, grind, or wrench without babying them. Use it as a fabrication bench, mechanic work table, or a dialed-in steel shop workbench for the garage that does not mess around.

Specifications

• Length of Top: 144 inches
• Depth of Top: 32 inches
• Height to work surface: 37.5 inches
• Height to top of backsplash: 41.5 inches with backsplash top
• Length of base frame: 121.5 inches
• Depth of base frame: 30 inches
• Approx Weight: 1300 lbs
• Table capacity (without casters): 8,000 lbs. uniform load
• Table capacity with casters: 4800 lbs.
• Construction: Hand-built from heavy gauge steel with an all-welded frame of structural steel tubing
• Bench frame finish: Powder coated in selected color
• Legs: Each 4" by 4" leg uses a 3/8" thick threaded base plate with a heavy duty leveling pad
• Forklift moving: Two heavy duty tubes are welded to the frame so a forklift can lift and move the workbench
• Storage: Bottom shelf with wire mesh decking and a single row of four drawers above
• Drawers: 6 inch wide drawers swivel out seamlessly on a one inch cold rolled steel shaft
• Drawer capacity: 450 lbs each
• Drawer features: Magnetic closure, grease fitting for easy maintenance, and rubber mat insert
• Drawer finish: Powder coated in selected color

Configuration options

• Bench Frame Color: Gloss Black, Red, Blue, Green, Yellow, Orange, Grey, White, Tan, Lime Green, Pink, Clear
• Casters: Without, With
• Drawer Color: Gloss Black, Red, Blue, Green, Yellow, Orange, Grey, White, Tan, Lime Green, Pink, Clear
• Keyed Locks: Without, With
• Receiver tubes and plate: None, With right side tube, With left side tube, With left and right side tubes, With right side tube and plate, With left side tube and plate, With right and left tube and one plate, With right and left tube and two plates. When selected with a plate, the receiver tube uses a formed receiver tube channel of 1/4" thick steel with 3 tapped holes with set screws and a 3/8" steel plate used to mount a bench vise, grinder, belt sander, drill press, etc.
• Tabletop: 3/8" top flat (without backsplash), 3/8" top with backsplash, 1/2" top flat (without backsplash), 1/2" top with backsplash, 1 3/4" Hardwood butcher block

The caster option is there if you want a movable setup, while the leveling pads are ready for dialing in the bench on an uneven floor. Receiver tube and plate choices let you plan where mounted tools should live, and keyed locks are available when you want drawer security. If you want the two different size drawer setup shown, a powder coated top, pegboard, or a vise added for an additional cost, please call 800-736-9308 or email sales@carguygarage.com to discuss those additions.

This steel workbench with drawers is built for the shop that needs real capacity, real workspace, and a layout that fits how you work. Choose your frame color, drawer color, tabletop, caster setup, lock setup, and receiver tube configuration, then get ready to put 12 feet of bench to work.
