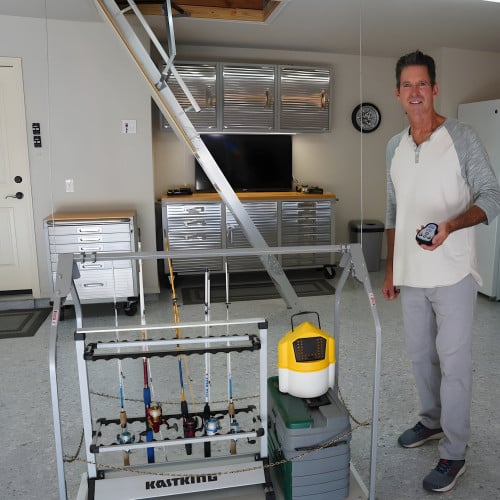

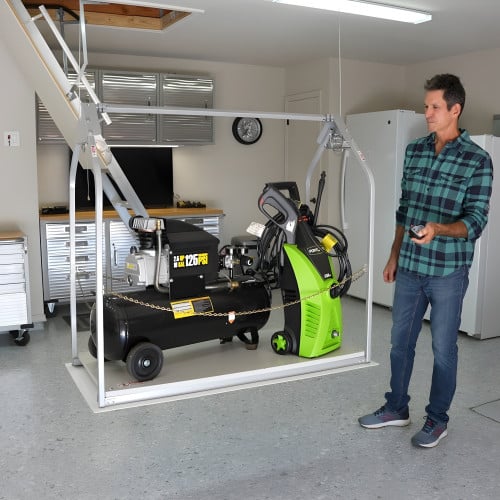

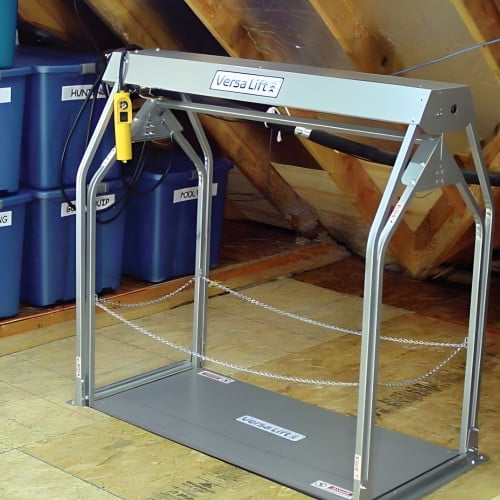

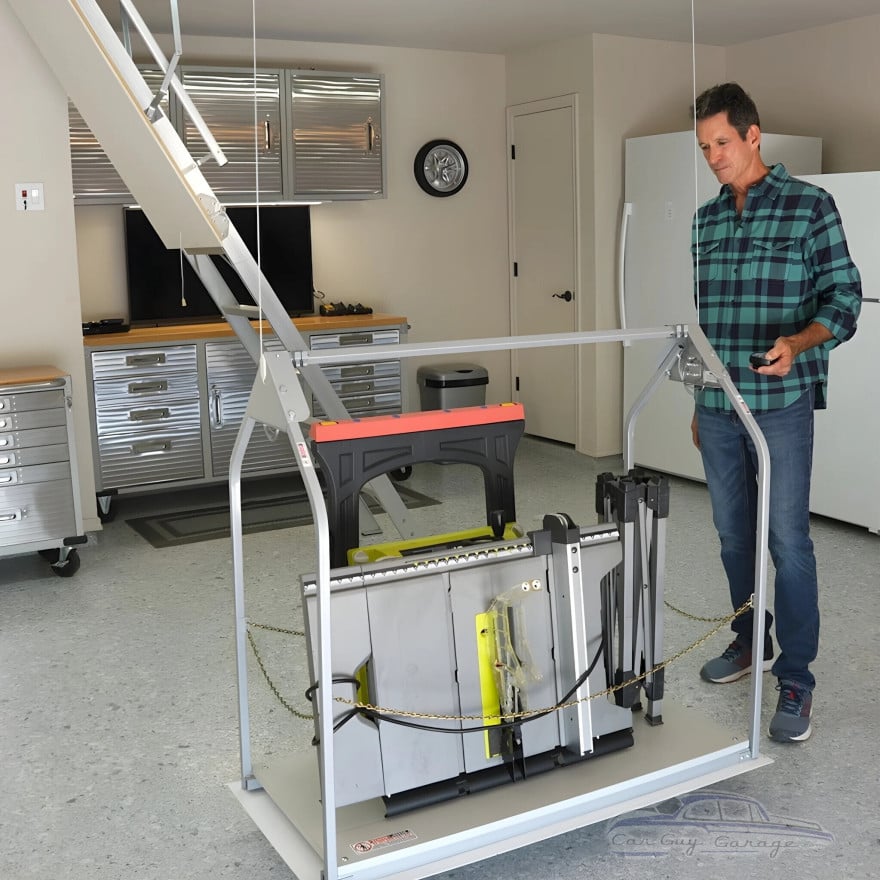

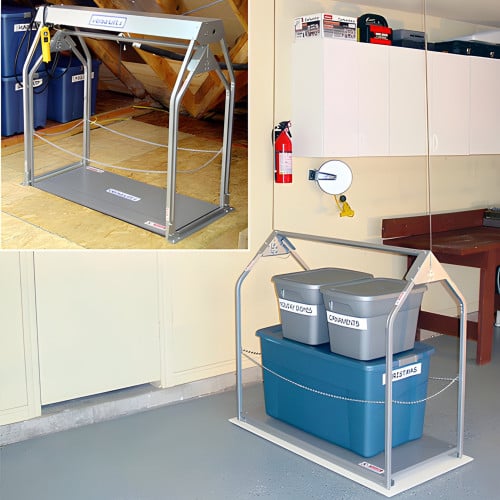

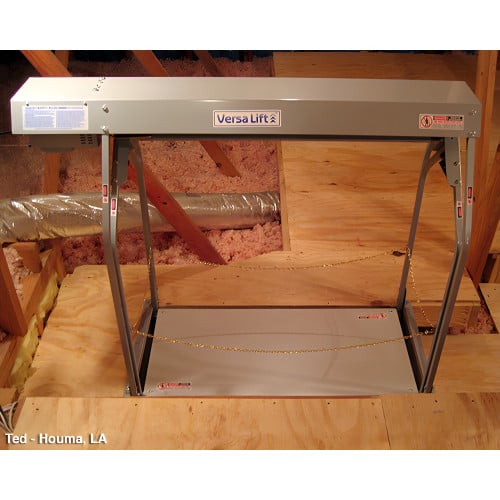

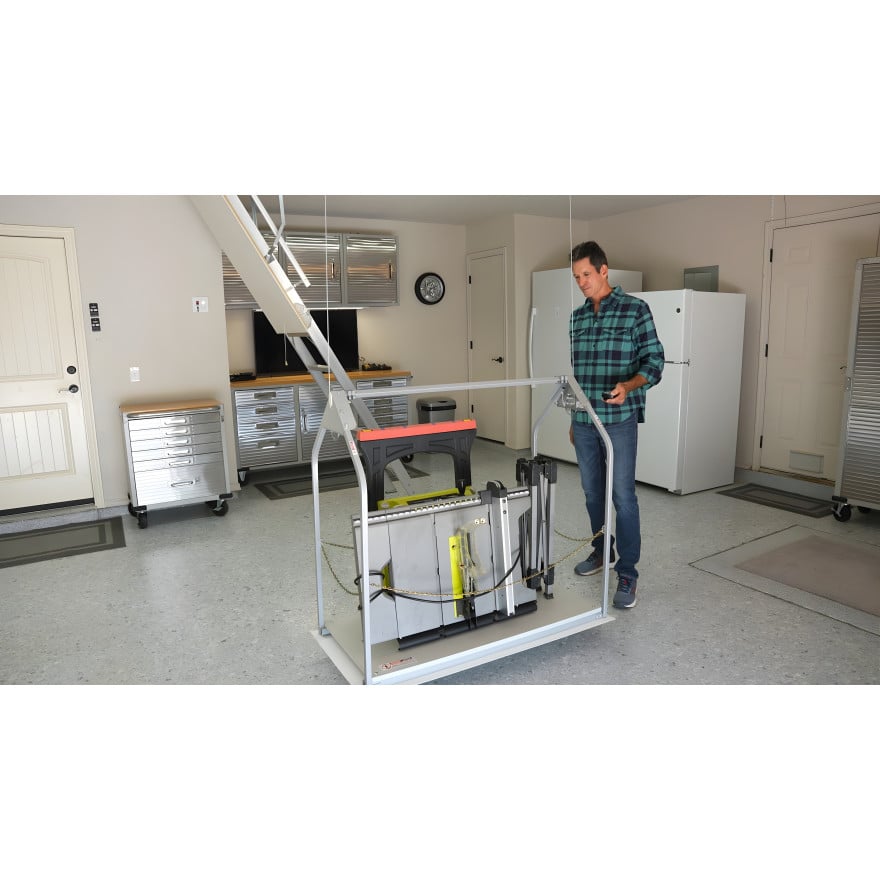

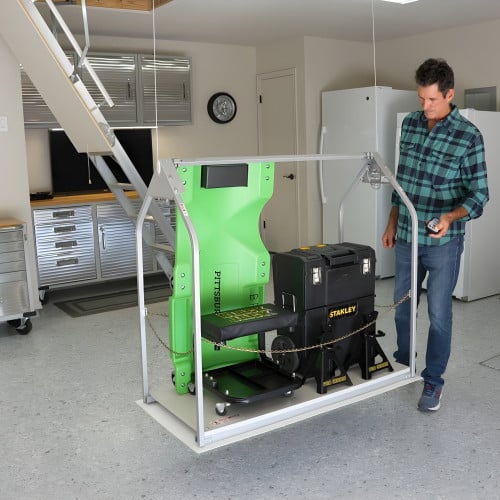

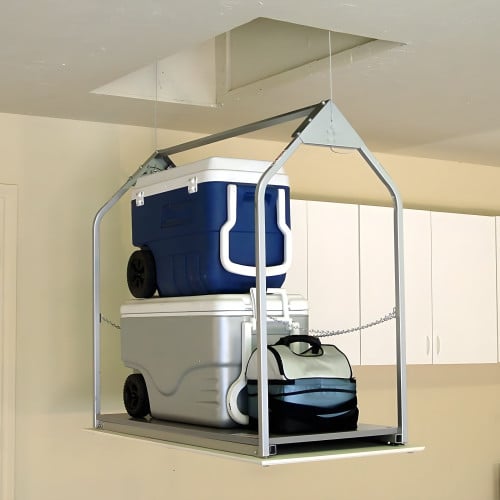

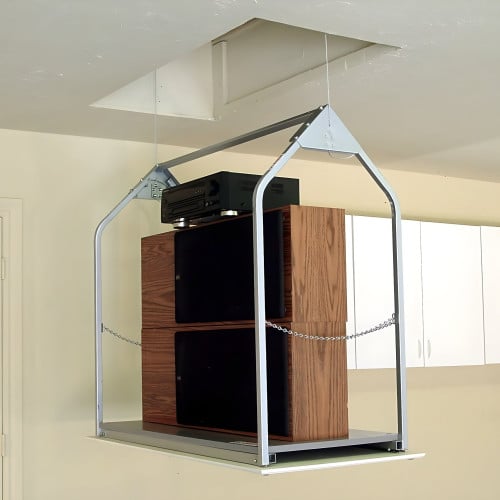

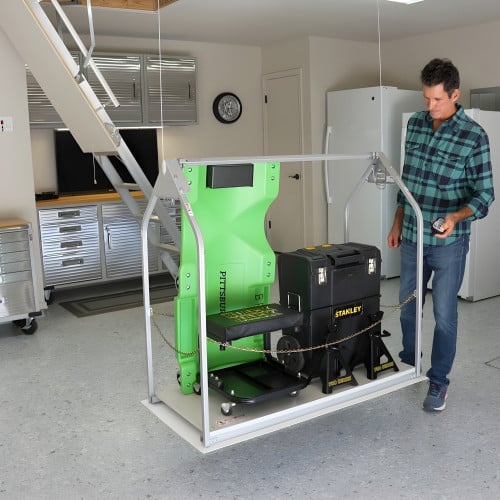

Build the kind of garage that makes wrench time easier and your storage setup smarter. This extra-high attic storage lift takes the awkward balancing act on a pull down attic ladder out of the routine and turns overhead storage into a cleaner, more controlled process. Load up the platform with detailing bins, track-day totes, seasonal wheels, camping gear, or the boxes that always seem to eat your floor space. Then move everything up and out of the way so your garage feels more like a working shop and less like a storage unit.

Specifications

• Floor-to-Floor: 14-20 ft
• Ceiling Height: 19 ft. Max
• Joist Height Max: 18" (incl. decking & sheet rock)
• Lifting Capacity: 35 Cu. Ft., 250 lbs. per load

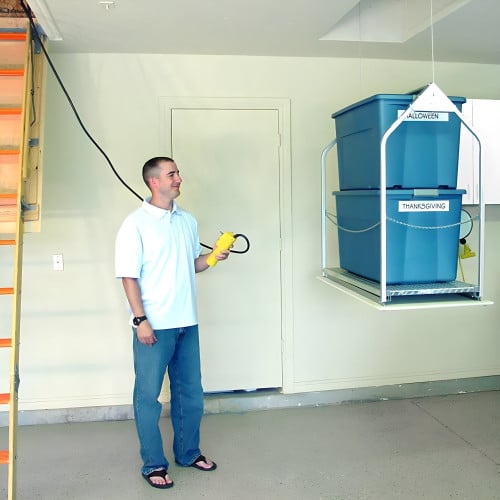

• Control: Mounted Wall Switch (50ft of wiring included) Wall Switch install info, click here

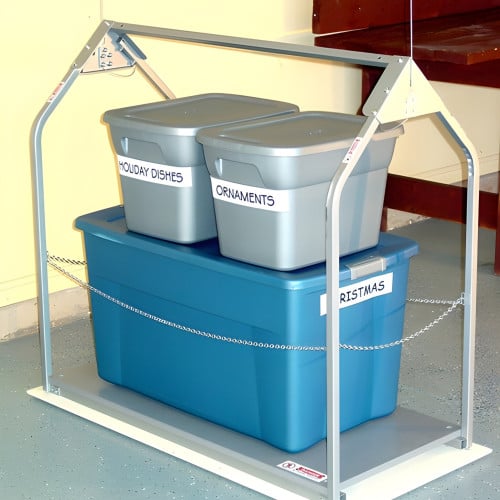

• Platform Dimensions: 28 3/4"W x 56"L x 52 3/4"H
• Weight: 206 lbs
• Lift Speed: 8"/sec. (10-ft. in approx. 15 seconds)
• Cables (2): .093 steel w/zinc plating 1,000 lb. break
• Construction: Powder coated steel
• Motor: .6 HP Gear motor with automatic brake
• Voltage/Power: 115 vac, 60 hz, 4.5 amps

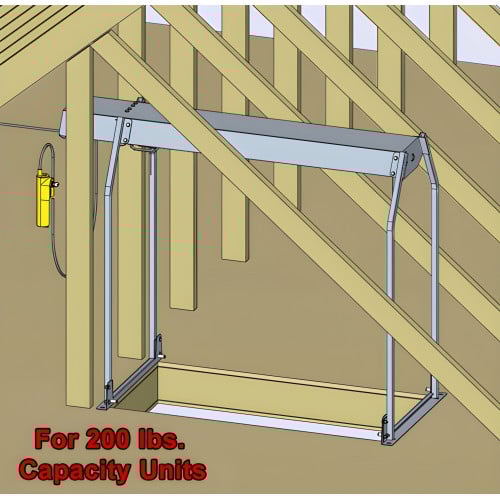

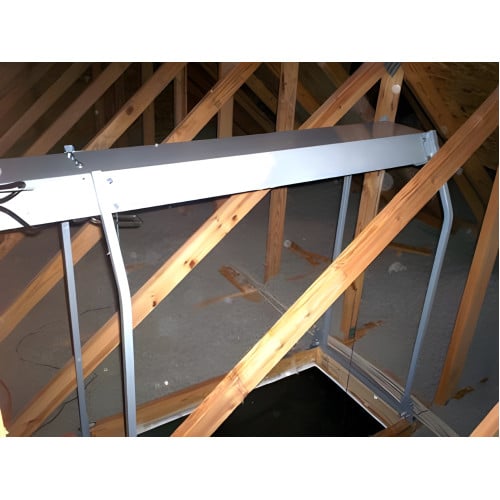

• Power-head Dim.: 34W x 69L x 60H
• Opening Required: 30 1/2 x 58 1/2" (+1/2", -0")
• Opening Finish: Smooth perpendicular sidewalls
• Electrical: 115 vac grounded power outlet
• Cover Panels: Fire retarding cover panels

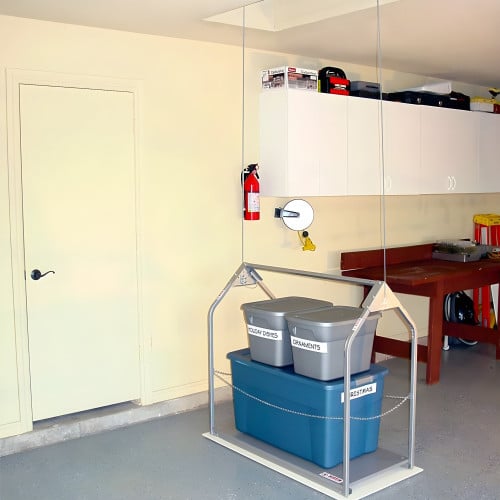

This garage attic storage lift system is made for organizing the gear you want to keep, not the clutter you want to work around. It is a strong fit for garages where cabinets, shelves, tools, and vehicles all need their own space without a pile of bins crowding the floor. Plan the project around the listed opening and electrical requirements so the lift can be integrated cleanly into your attic storage area.

Units are not intended or approved for lifting persons. Use it for storage loads only, and keep your garage workflow focused on the good stuff: cars, tools, projects, and gear that is finally where it belongs.

For additional specs and information about installation, click here
