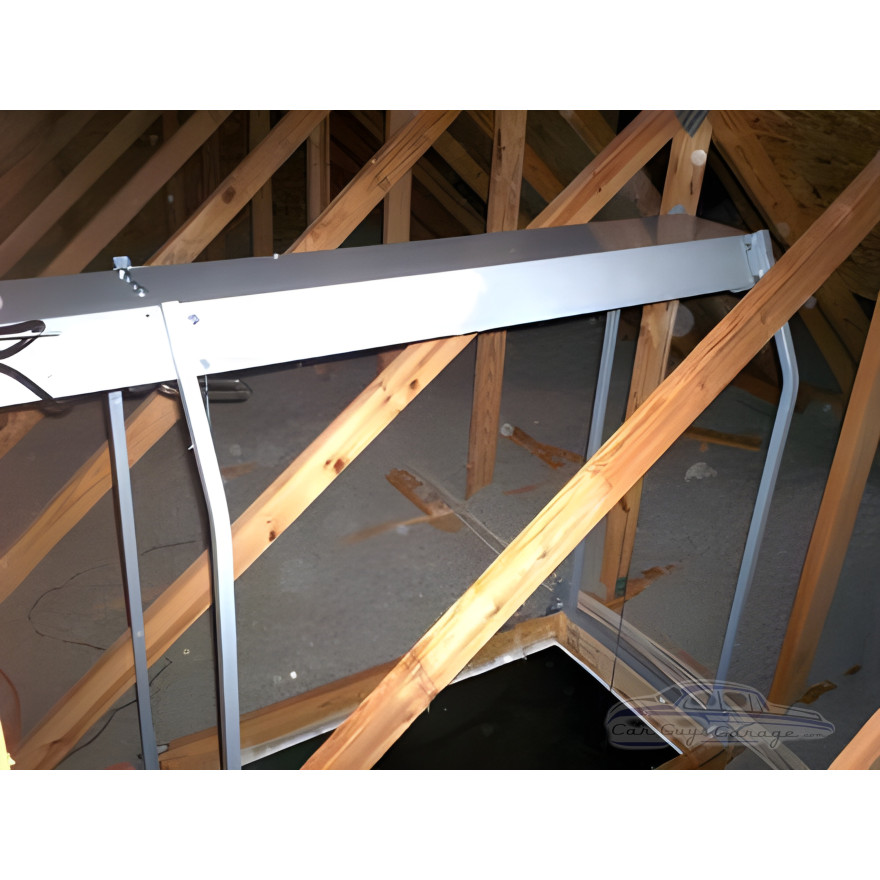

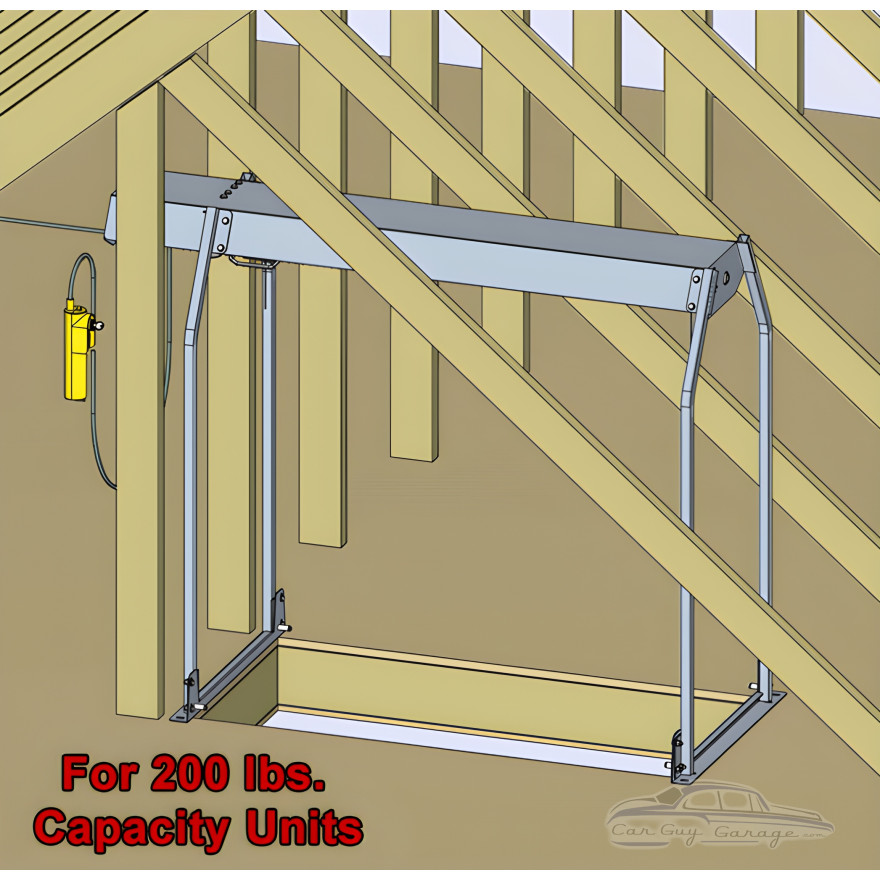

If your garage attic lift plan runs into truss framing, this legs-only kit is the piece that keeps the project moving. It gives compatible Attic Lift setups a cleaner path in a truss roof layout, with purpose-built housing legs made to fit between the roof trusses instead of forcing a standard approach. That matters in a garage where storage, headroom, and structure all have to play nice together. For gear, bins, seasonal stuff, and garage overflow, it helps your lift setup match the space you actually have.

Specifications

• Installation use: Select attic lift units in truss roof construction spaced on 24" centers
• Structural note: Roof trusses must not be cut or modified because each member is load bearing within the assembly
• Attic Lift is not included
• Shipping box contents:
  • Left truss housing legs
    • Quantity: 2
  • Right truss housing legs
    • Quantity: 2
  • 1/4-20 x 3/4" hex bolts
    • Quantity: 16
    • Replaces 1/4-20 x 1-1/2" in standard hardware kit
  • 1/4-20 x 1-3/4" Phillips screws
    • Quantity: 4
    • Replaces 1/4-20 x 1-1/2" in standard hardware kit

Need the install details before you get started? Check the Product Manual (PDF).

Compatibility

Use this kit with the following compatible Attic Lift products. Match it to your lift model so your garage storage lift project starts with the right setup from the beginning.

• Attic Lift
• High Attic Lift
• Extra High Attic Lift
• Wireless Remote Attic Lift
• Wireless Remote High Attic Lift
• Wireless Remote Extra High Attic Lift

This accessory kit is a smart buy when you have confirmed your lift model and garage roof framing before ordering. Pair it with one of the compatible units above and keep the install focused, tidy, and garage-ready.
