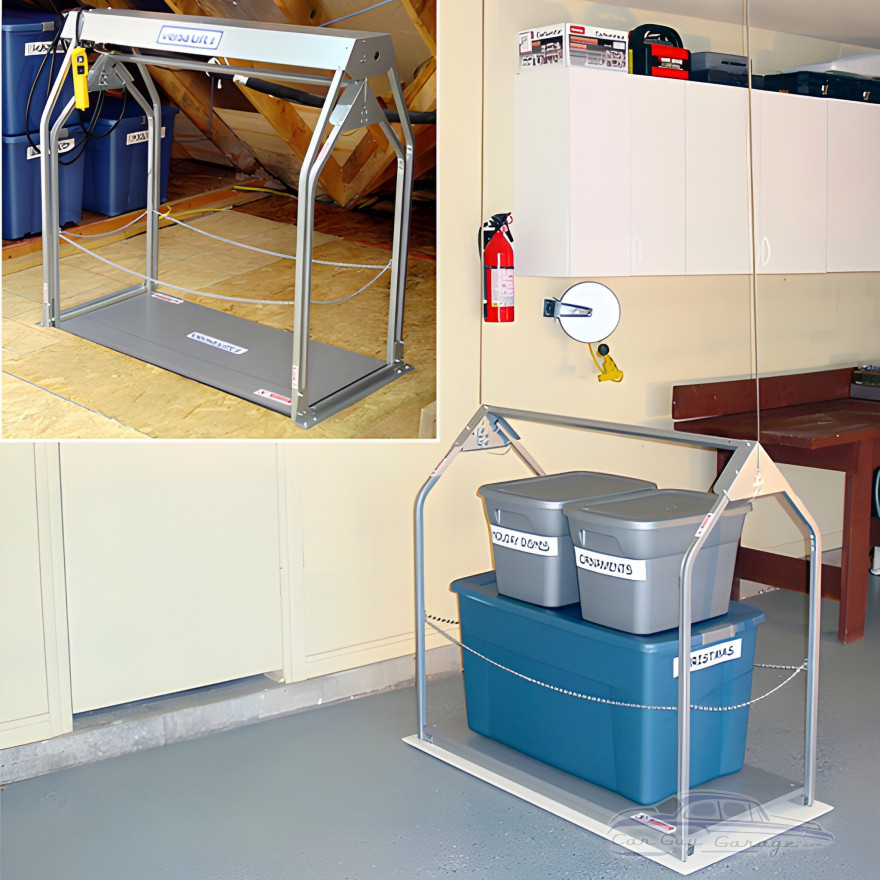

Clearing room for your ride just got a whole lot easier. This extra-high attic lift elevator turns unused attic space into practical overhead storage, keeping your garage floor open for parking, wrenching, and weekend projects. Load it with detailing totes, spare parts, or a set of track tires, then send your gear up with the mounted wall switch instead of wrestling everything up a pull down attic ladder. It is a smart fit for garages with taller ceilings where everyday storage needs to be more convenient and a lot less sketchy.

The setup works like a garage-friendly dumbwaiter for cargo, giving you a cleaner way to move supplies between the garage and attic. It is operated by a mounted wall switch, so the control stays simple and familiar. Units are not intended or approved for lifting persons.

Specifications

• Powder Coated Steel Frame
• Lifting Capacity: 200lbs max
• Lift Speed: 8in/sec (8ft in approx 12 sec)
• Cables (2): .093 steel 1,000 lb break
• Motor: .6 hp, 1725 rpm
• Voltage: 110 v AC
• Power: 4.5 amps, 560 watts
• Control: Mounted Wall Switch (50ft of wiring included) Wall Switch install info,click here
• 26" wide by 56" long by 46.25 high
• Weight: 170 lbs
• 48" office floor to roof rafters required
• Max Ceiling Height: 19ft
• Max Joist Height: 18"
• Max floor-to-floor: 14-17ft
• Opening size: 22.5" x 46.5"
• Framing: 24" x 48"

Installation Information

This garage attic elevator is built for applications with the listed ceiling, joist, opening, and framing requirements, so check your space carefully before ordering. For additional installation details and rough specs, use the resource below before planning your project.

For additional specs and information about installation, click here

If you are tired of giving up floor space or your back, this lift is a clean motorized storage upgrade. It helps turn the area above the garage into real usable storage while keeping your gear easier to access when the next project calls.
