200 lbs High Wall Switch Attic Lift

200 lbs High Wall Switch Attic Lift
Made in the USA
200 lbs High Wall Switch Attic Lift
  • Est delivery : Sep 24 - Sep 30
  • Model: 67272
$2,804.99

Get your coupon code

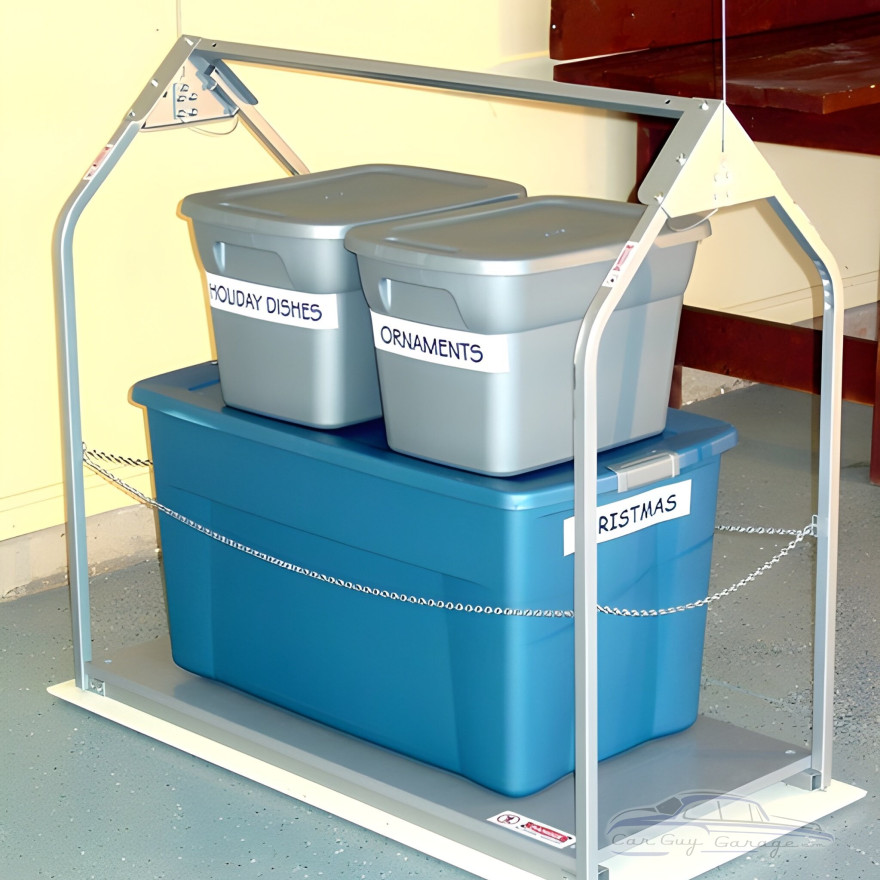

This 200 lbs High Wall Switch Attic Lift converts your attic space into valuable storage space that is easily accessible and out of sight. The attic lift is easily installed in a framed opening just like the one your folding ladder is in. Eliminate the risk and danger inherent in trying to climb up and down a rickety ladder with your hands full of heavy items with this space saving unit.

The attic lift is operated by a mounted wall switch. The attic lift is designed to lift up to 200 lbs. Units are not intended or approved for lifting persons.

Specifications:

  • Powder Coated Steel Frame
  • 200lbs max Lifting Capacity
  • Lift Speed: 8in/sec (8ft in approx 12 sec)
  • Cables (2): .093 steel 1,000 lb break
  • Motor: .6 hp, 1725 rpm
  • Voltage: 110 v AC
  • Power: 4.5 amps, 560 watts
  • Control: Mounted Wall Switch (50ft of wiring included) Wall Switch install info,click here
  • 20.75"w x 44"l x 39"h
  • Weight: 170 lbs
  • 48" attic floor to roof rafters required
  • Max Ceiling Height: 13ft
  • Max Joist Height: 16"
  • Max floor-to-floor: 11-14ft
  • Opening size: 22.5" x 46.5"
  • Framing: 24" x 48"

For additional specs and information about installation, click here
