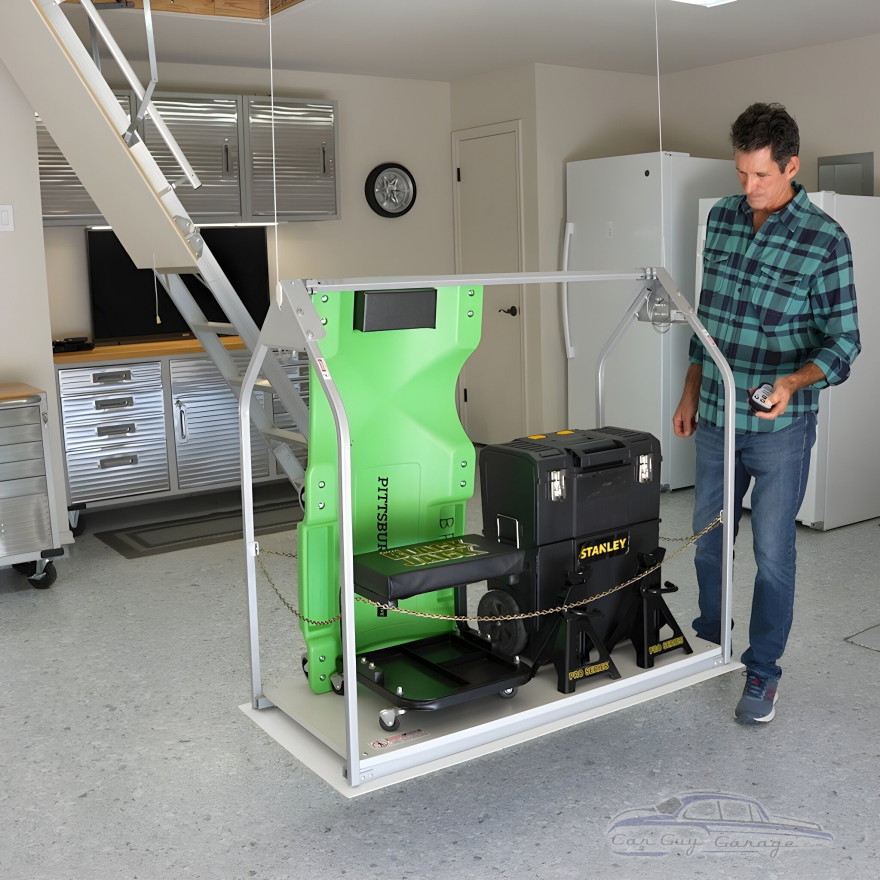

Clear your garage floor for the next wrenching session with an attic storage lift that does the heavy hauling for you. This motorized attic lift is built for moving bins, tires, detailing gear, toolboxes, and parts up into attic storage without making sketchy ladder runs. Load the platform, use the mounted wall switch, and send your gear upstairs while you keep the shop space open for the fun stuff. It is a smart upgrade for garage owners who want more usable floor space without giving up the storage they need.

The wall switch setup keeps operation straightforward, and the automatic brake helps hold position during use. Fire retarding cover panels add an extra layer of safety for a cleaner, more finished installation. Use it as a garage attic lift for seasonal storage, extra parts, or bulky garage items that do not need to live underfoot. Units are not intended or approved for lifting persons.

Specifications

• Floor-to-Floor: 11-14 ft
• Ceiling Height: 13 ft. Max
• Joist Height Max: 18" (incl. decking & sheet rock)
• Lifting Capacity: 35 Cu. Ft., 250 lbs. per load
• Control: Mounted Wall Switch (50ft of wiring included) Wall Switch install info, click here
• Platform Dimensions: 28 3/4"W x 56"L x 52 3/4"H
• Weight: 206 lbs
• Lift Speed: 8"/sec. (10-ft. in approx. 15 seconds)
• Cables (2): .093 steel w/zinc plating 1,000 lb. break
• Construction: Powder coated steel
• Motor: .6 HP Gear motor with automatic brake
• Voltage/Power: 115 vac, 60 hz, 4.5 amps
• Power-head Dim.: 34W x 69L x 60H
• Opening Required: 30 1/2 x 58 1/2" (+1/2", -0")
• Opening Finish: Smooth perpendicular sidewalls
• Electrical: 115 vac grounded power outlet
• Fire retarding cover panels

Installation Information

If you are planning an attic lift installation, measure carefully and review the rough-in requirements before ordering. The opening, joist height, ceiling height, and electrical requirements all matter, especially when you want the finished setup to look clean and work the way it should. For additional specs and information about installation, click here.

This attic lift system is for the garage owner who is done wasting floor space on stuff that belongs overhead. It brings practical storage convenience to a serious workspace, with the wall switch control included for easy operation. If your garage is tight but your attic has room to spare, this is the kind of upgrade that pays you back every time you clear the floor.
