250 lbs. Capacity Wall Switch Attic Lift

250 lbs. Capacity Wall Switch Attic Lift
Made in the USA

Get your coupon code

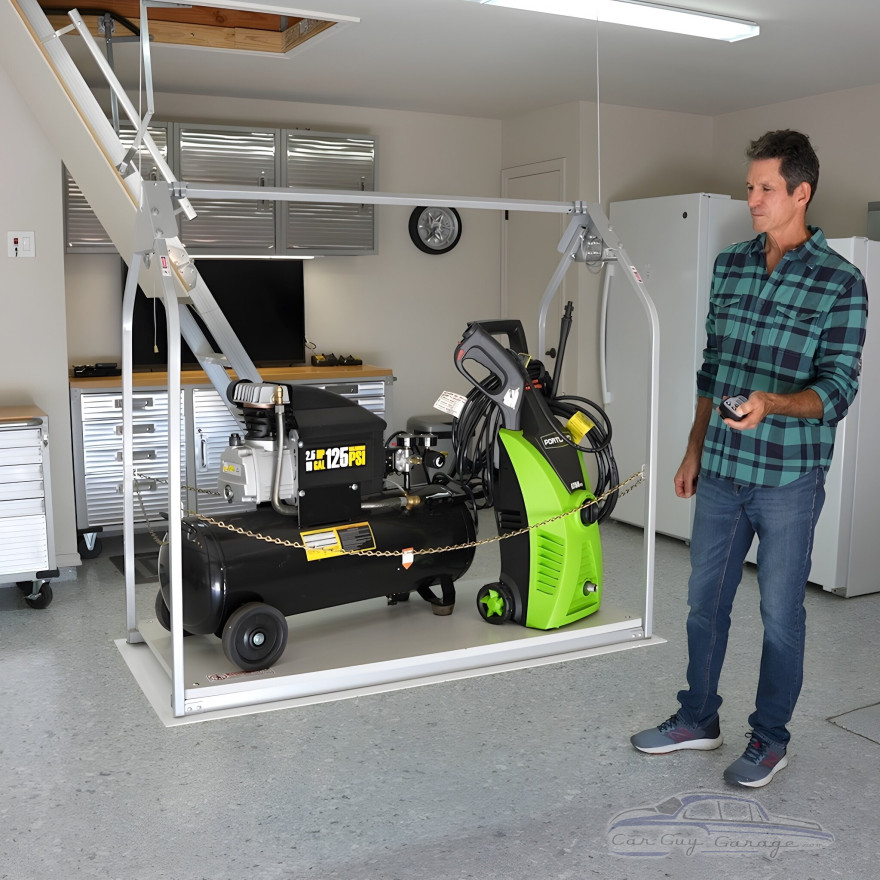

This 250 lbs. Capacity Wall Switch Attic Lift is the answer to lifting storage into your attic. Now you can keep home or garage space neat and put all those storage boxes up in the attic out of sight. Keep your seasonal clothing and holiday decorations stored in your attic. An attic lift eliminates the risk and danger inherent in trying to climb up and down a rickety ladder with your hands full of heavy items.

The attic lift is operated by a mounted wall switch. Lift is equipped with fire retarding cover panels for additional safety. This lift is designed to lift up to 250 lbs. Units are not intended or approved for lifting persons.
Specifications:

  • Corded Control: Hand-held remote w/15' cord & keylock
  • Floor-to-Floor: 8-11 ft
  • Ceiling Height: 10 ft. Max
  • Joist Height Max: 18" (incl. decking & sheet rock)
  • Lifting Capacity: 35 Cu. Ft., 250 lbs. per load
  • Control: Mounted Wall Switch (50ft of wiring included) Wall Switch install info,click here
  • Platform Dimensions: 28-3/4" W x 56" L x 52-3/4" T
  • Weight: 206 lbs
  • Lift Speed: 8"/sec. (10-ft. in approx. 15 seconds)
  • Cables (2): .093 steel w/zinc plating 1,000 lb. break
  • Construction: Powder coated steel
  • Motor: .6 HP Gear motor with automatic brake
  • Voltage/Power: 115 vac, 60 hz, 4.5 amps
  • Power-head Dim.: 34W x 69L x 60H
  • Opening Required: 30 1/2 x 58 1/2" (+1/2", -0")
  • Opening Finish: Smooth perpendicular sidewalls
  • Electrical: 115 vac grounded power outlet

For additional specs and information about installation, click here
