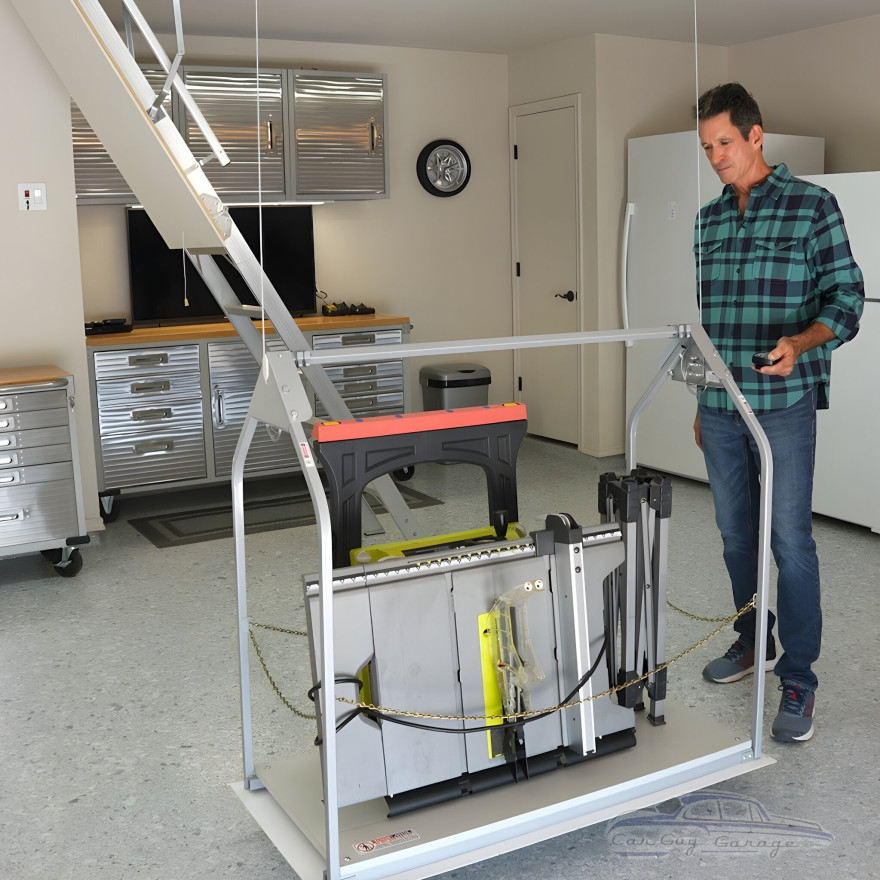

Got a tall-bay garage and more gear than shelf space? The Extra-High Attic Lift is a clean, motorized way to move parts bins, tires, detailing totes, and seasonal items to the attic without sketchy ladder climbs. It works like an attic elevator for cargo, built for spaces with ceilings up to 19 ft and a 250 lb capacity per load.

The hand-held corded remote has a keylock for safety, and the lift is equipped with fire retarding cover panels. Units are not intended or approved for lifting persons.

Specifications:

• Corded Control: Hand-held remote w/15' cord & keylock
• Floor-to-Floor: 14-17 ft
• Ceiling Height: 19 ft. Max
• Joist Height Max: 18" (incl. decking & sheet rock)
• Lifting Capacity: 35 Cu. Ft., 250 lbs. per load
• Platform Dimensions: 28 3/4"W x 56"L x 52 3/4"H
• Weight: 206 lbs
• Lift Speed: 8"/sec. (10-ft. in approx. 15 seconds)
• Cables (2): .093 steel w/zinc plating 1,000 lb. break
• Construction: Powder coated steel
• Motor: .6 HP Gear motor with automatic brake
• Voltage/Power and Electrical: 115 vac, 60 hz, 4.5 amps; grounded power outlet
• Power-head Dim.: 34W x 69L x 60H
• Opening Required: 30 1/2 x 58 1/2" (+1/2", -0")
• Opening Finish: Smooth perpendicular sidewalls
• Safety: Fire retarding cover panels
• Use: Units are not intended or approved for lifting persons

Ready to turn overhead space into practical garage storage? This lift helps keep the workflow smooth and the floor clear.

For additional specs and information about installation, click here
