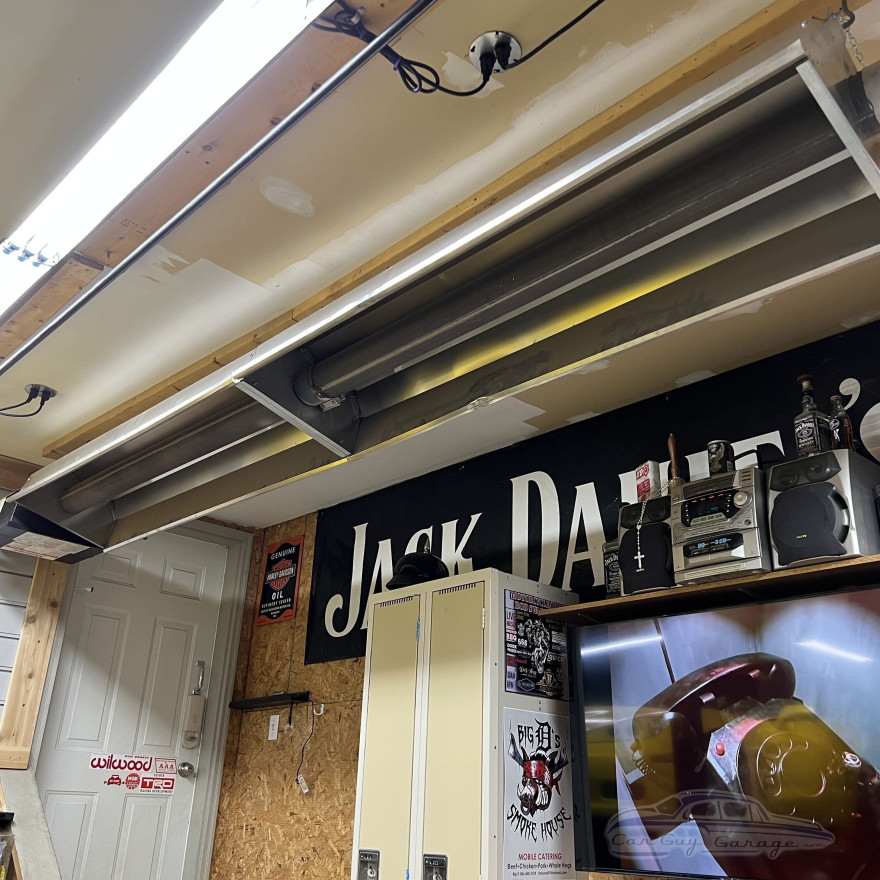

40,000 BTU Natural Gas Radiant Garage Tube Heater

Cold garage days should not decide when you get to wrench, detail, or hang out with your favorite machines. This 40,000 BTU natural gas radiant tube heater brings quiet infrared comfort to garages and shops by warming the surroundings - floors, walls, vehicles, tools, and you - instead of blasting air around the room. That means a steadier, more dialed-in feel when you are working late, storing a prized ride, or melting off the mess that follows a snowy drive. It is built for insulated spaces and comes with the controls and installation pieces that help make the setup straightforward.

Specifications

• Fuel Type: Natural gas
• Heat Output: 40,000 BTU
• Heater Type: Radiant tube infrared garage heater
• Coverage: from 14' x 12' (168 sq. ft.) up to 24' x 26' (624 sq. ft.)
• Insulation Requirement: intended for a garage that is insulated with a minimum of an R-12 rating in the walls and roof
• Non-Insulated Garage Note: a non-insulated garage will consume more fuel and will feel cooler than an insulated garage
• Size: 10 feet long by 15 inches wide
• Thermostat and modulating control included
• Certified for indoor and outdoor use
• Vents through the wall or roof
• Hanging kit included
• Slim profile with low clearance requirements
• Multiple tube heaters can be grouped to reach the length you need
• Uses 30%-40% less energy than forced-air style systems
• Melts snow and ice off vehicles and helps keep the garage floor warm and dry
• Construction: high-quality stainless steel
• Reflector: aluminum, eight-sided reflector designed to stay stable through heat cycles
• Standard Equipment:
  • Pre-assembled and prewired burner control housing
  • Industry-standard gas, electrical, and venting connections
  • Balanced air rotor
  • Thermal overload protection motor
  • Visual burner inspection sight glass
  • Combustion and air proving safety switch
  • 3-Try direct spark, electronic ignition - no pilot lights to light, no valves to turn, and no thermocouples to replace
  • 100% safety shut-off
  • Low voltage thermostat connection
  • 4" heat-treated aluminum combustion tube
  • 4" mild steel radiant heat exchanger
  • Tube couplers
  • Joint/hanger pieces
  • Heat economizer baffle

Fuel Configuration

This unit is the natural gas version. The heater line is available for natural gas or propane, so you can match the setup to the fuel source that makes sense for your garage or shop project.

Helpful resources:

• Instruction Manual
• Garage Heater Brochure

If you want a radiant tube heater for garage work that feels calm, efficient, and built for real wrench time, this is the kind of heat that makes the whole space more usable. Add it to an insulated garage or shop and keep the projects moving when the weather turns ugly.
