25K BTU Natural Gas Radiant Garage Heater

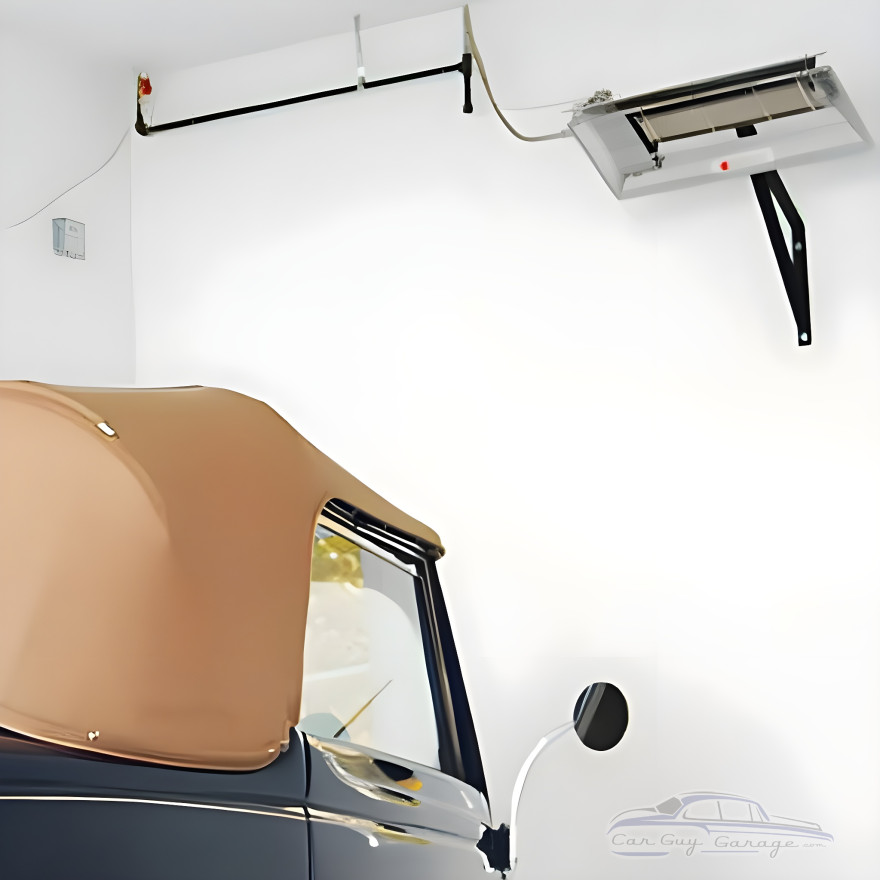

This 25K BTU Natural Gas Radiant Garage Heater has a millivolt powered thermostat that adjusts for individual comfort levels. The heater has a welded wall mounting bracket that simplifies installation. The heater also has a unique thermocouple that generates power from pilot flame for gas control and automatically shuts off gas if pilot light goes out. The aluminized steel burner plenum houses venturi and baffles, enabling air-gas mixture to produce constant grid combustion with no wasted fuel. The chrome-plated, steel grill protects burner from any damaging object.

For installation instructions on this garage heater click here

Specifications:

• Large Capacity - Heats 500-600 sq. ft. (2 1/2 car garage)
• Efficient Infrared Heat - Directly heats people and objects which in turn heats surrounding air to desired temperature.
• Economical - No electricity required
• Instant Heat - Includes adjustable thermostat for individually controlled warmth
• Quiet, Clean, Odor-Free Operation
• Garage heater ships Complete In Package For Easy Installation
• Includes Wall Louver For Fresh Air Intake
• Maintenance Free - No moving parts to service
• CSA Certified
• Limited 1 Year Manufacturer Warranty - On gas control
• Limited 5 Year Manufacturer Warranty - On burner
• 25,000 BTU/hr
• Normal Mounting Position: 30 degrees
• Mounting Clearance to Combustibles: Top: 14" x Side: 16" x Back: 12" x Below: 48" (Minimum Distance from Unit to Vehicle)
• Heat Reflector Dimensions: 26-1/2" L x 11-9/16" W x 3-3/4" H
• Total Heater Dimensions: 29-3/4" L x 12-1/4" W x 7" H
• Shipping Weight: 25lbs.
• Gas supply connection is 1/2" dia. (NPT) gas pipe.
• Manifold Pressure: 10"
