Propane Infrared Garage Heater with Thermostat, 22,000 BTU

Cold concrete and numb fingers can turn a good wrenching session into a short one. This propane infrared garage heater is built for car people who want their bay, tools, and project space ready when the temperature drops. The millivolt powered thermostat lets you dial in comfort while keeping the setup straightforward. It is a clean, focused way to make winter garage time feel a lot more like garage time.

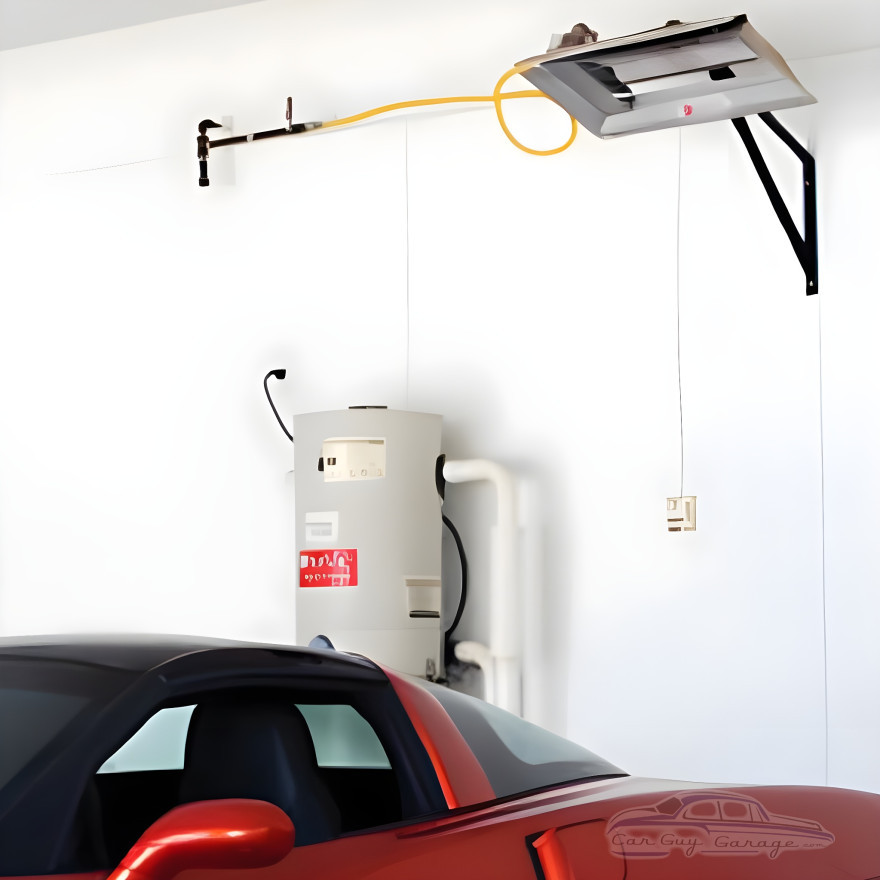

Mount it with the welded wall mounting bracket and keep your floor space open for the car, toolbox, and everything else that somehow lands in the garage. A unique thermocouple generates power from the pilot flame for gas control and automatically shuts off gas if the pilot light goes out. Inside, an aluminized steel burner plenum houses the venturi and baffles so the air-gas mix delivers constant grid combustion with no wasted fuel. A chrome-plated steel grill shields the burner from damage, so the heater is ready for regular shop life.

For installation instructions on this garage heater click here

Specifications

• Large Capacity - Heats 500-600 sq. ft. (2 1/2 car garage)
• 22,000 BTU/hr
• Efficient Infrared Heat - Directly heats people and objects which in turn heats surrounding air to desired temperature.
• Economical - No electricity required
• Instant Heat - Includes adjustable thermostat for individually controlled warmth
• Quiet, Clean, Odor-Free Operation
• Garage heater ships Complete In Package For Easy Installation
• Includes Wall Louver For Fresh Air Intake
• Maintenance Free - No moving parts to service
• CSA Certified
• Limited 1 Year Manufacturer Warranty - On gas control
• Limited 5 Year Manufacturer Warranty - On burner
• Normal Mounting Position: 30 degrees
• Mounting Clearance to Combustibles: Top: 14" x Side: 16" x Back: 12" x Below: 48" (Minimum Distance from Unit to Vehicle)
• Heat Reflector Dimensions: 26-1/2" L x 11-9/16" W x 3-1/4" H
• Total Heater Dimensions: 29-3/4" L x 12-1/4" W x 7" H
• Shipping Weight: 25lbs.
• Gas supply connection is 1/2" dia. (NPT) gas pipe.
• Manifold Pressure: 10"
• 100 LB propane tank or larger recommended (Not Included)

Installation Notes

Before install day, review the instructions so you can plan clearances, gas supply, and mounting position. This propane garage heater with thermostat is a solid choice for a 2 1/2 car garage where you want controlled warmth without adding moving parts to service.

For the garage owner who actually uses the space, this radiant propane heater helps keep projects moving when the weather does not cooperate. Set it up right, fire up the heat, and get back to the build.
