40,000 BTU Propane Radiant Tube Garage Heater, 10 ft

Built for garage use, this 40,000 BTU liquid propane unit turns cold shop time into real wrenching time. It warms objects and surfaces first, so your tools, floor, and vehicle feel the heat without the blower noise of a forced-air gas garage heater. Floors dry out, snow and ice melt off vehicles, and the comfort feels steady instead of gusty. It is a smart fit for a shop heater setup, vehicle maintenance space, hobby garage, craft area, pet area, or attached-garage setup where dependable overhead heat matters.

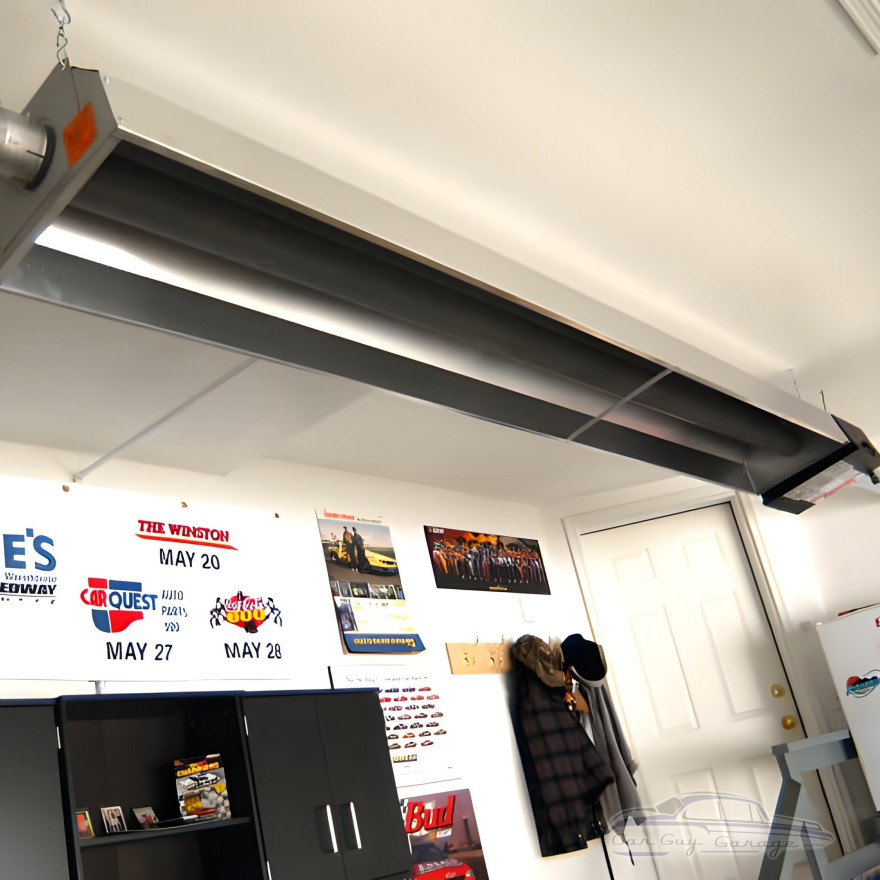

This infrared tube heater is built for quiet, draft-free comfort and a cleaner ceiling-mounted layout that does not eat up valuable floor space. It covers an area from 14' x 12' (168 sq. ft.) up to 24' x 26' (624 sq. ft.), with performance intended for a garage insulated to at least R-12 in the walls and roof. A non-insulated garage will use more fuel and feel cooler than an insulated garage. If you want a propane garage shop heater that feels more like warm sunshine than hot air blasting around, this one belongs on the short list.

Specifications

• Heat output: 40,000 BTU
• Fuel type: liquid propane
• Size: 10 feet long by 15 inches wide
• Coverage area: from 14' x 12' (168 sq. ft.) up to 24' x 26' (624 sq. ft.)
• Intended insulation level: garage insulated to at least R-12 in the walls and roof
• Uses 30%-40% less energy than traditional heating systems
• Thermostat and modulating control included
• Hanging kit included
• Certified for indoor and outdoor applications
• Can be vented through the wall or roof
• Meets low clearance requirements
• Slim, narrow profile
• Multiple units can be grouped to hit the length you need
• Heavy-duty construction with high-quality stainless steel
• Eight-sided aluminum reflector resists fatigue and warp
• Anti-walk reflector design helps prevent shifting or twisting during expansion and contraction
• Easy-light, 3-Try direct spark electronic ignition with 100% safety shut-off
• No standing pilot, no valves to turn, and no thermocouples to replace
• Pre-assembled, prewired burner control housing
• Industry-standard gas, electrical, and venting connections
• Balanced air rotor
• Thermal overload protection motor
• Visual burner inspection sight glass
• Combustion and air proving safety switch
• Low voltage thermostat connection
• 4" heat-treated aluminum combustion tube
• 4" mild steel radiant heat exchanger
• Tube couplers and joint/hanger pieces
• Heat economizer baffle

Installation and configuration notes

• This model is a 10 ft liquid propane unit, and the heater line is available in various lengths and configurations.
• The heater line is available for natural gas or propane.
• Quiet, draft-free radiant heat can make adjacent or upstairs rooms feel more comfortable in attached-garage setups.

Downloads

• Instruction Manual
• Garage Heater Brochure

Install it above the work zone, set the thermostat, and get back to using the space instead of avoiding it. For a garage, shop, or workspace that needs efficient LP radiant heat without a roaring blower, this 10 ft unit brings the right kind of comfort to cold-weather projects.
