75,000 BTU Natural Gas Radiant Garage Tube Heater

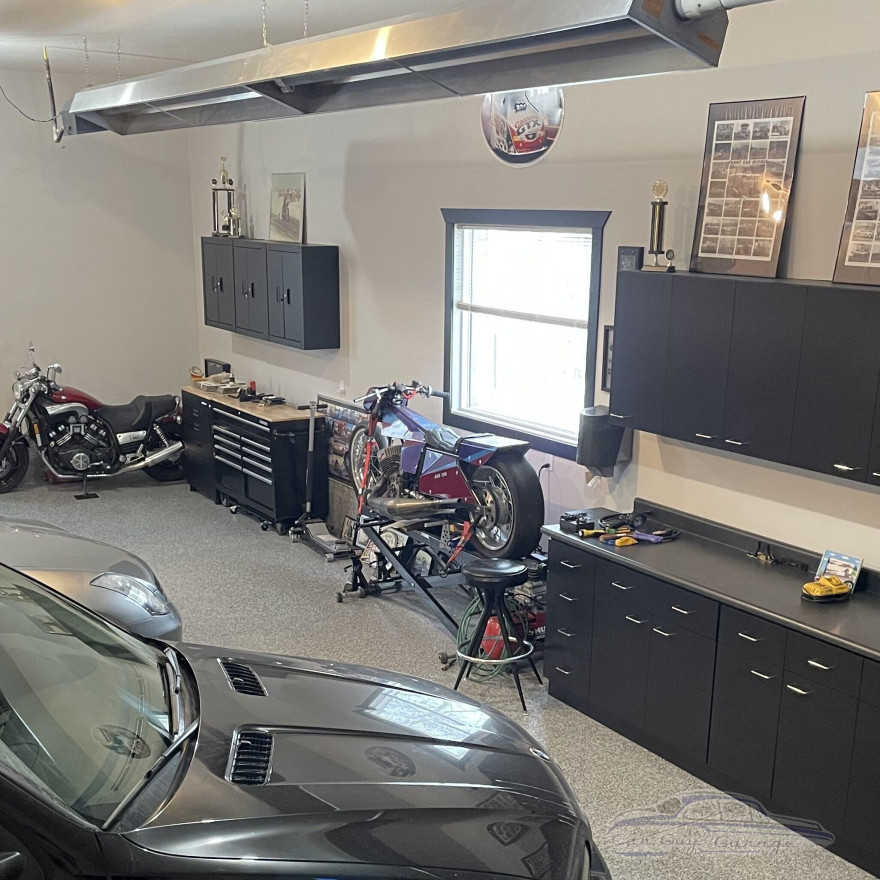

Turn your garage into a year-round wrenching spot with this radiant tube heater for garage projects and serious shop time. Instead of blasting air around the room, the infrared heat warms the things in the space - cars, tools, floors, and people - so the comfort feels steady, quiet, and draft-free. That is a big deal when you are working on projects or just trying to keep your hands from freezing while you work. For an attached garage, that kind of heat can also make rooms above or next to the heated space feel noticeably cozier.

This 75,000 BTU natural gas model is built for real garage heating where floor space matters and comfort matters even more. The slim profile works well in a busy car guy setup, and the included thermostat, modulating control, and hanging kit help keep the project moving. It can melt snow and ice from vehicles and help keep the garage floor warm and dry, which makes winter work a lot less miserable. A non-insulated garage will consume more fuel and will feel cooler than an insulated garage, so the insulation note below is worth checking before you buy.

Specifications

• Heating output: 75,000 BTU
• Fuel: Natural gas
• Coverage: will cover an area 27' x 36' or 972 sq. ft. to 40' x 40' or 1600 sq.ft.
• Insulation requirement: intended for a garage that is insulated with a minimum of an R-12 rating in the walls and roof
• Overall size: 20 feet long by 15 inches wide
• Thermostat, modulating control, and hanging kit included
• Certified for indoor and outdoor use
• Vents through the roof or the wall
• Uses 30%-40% less energy compared to conventional heating systems
• Quiet, draft-free operation
• Melts snow and ice from vehicles, keeping the floor warm and dry
• Meets low clearance requirements
• Sleek architectural design
• Heavy-duty construction with high-quality stainless steel and an anti-walk reflector design to prevent shifting or twisting during expansion and contraction
• Reflector: largest and heaviest gauge in the industry; eight-sided aluminum design for stability during temperature changes
• Pre-assembled and prewired burner control housing
• Industry-standard gas, electrical, and venting connections
• Balanced air rotor and thermal overload protection motor
• Visual burner inspection sight glass
• Combustion and air proving safety switch
• 3-Try Direct Spark Ignition with electronic ignition, no manual pilot lighting, no valves to turn, no thermocouples to replace, and 100% safety shut-off
• Low voltage thermostat connection
• 4" heat-treated aluminum combustion tube and aluminum reflector
• 4" mild steel radiant heat exchanger
• Tube couplers, joint/hanger pieces, and a heat economizer baffle

Documents

• Instruction Manual
• Garage Heater Brochure

Configuration notes

This is a natural gas tube heater for garage installs that need clean, efficient radiant warmth. The heater family is available in various lengths and configurations, with natural gas or propane options, so you can plan around the size of the space, venting path, and fuel setup.

If you want steady heat without turning your garage into a wind tunnel, this gas radiant tube heater is a smart upgrade. It brings the kind of comfort that keeps projects moving, vehicles drier, and your favorite workspace usable when the temperature drops.
