Propane Radiant Tube Heater for Garage - 75,000 BTU, 20 ft

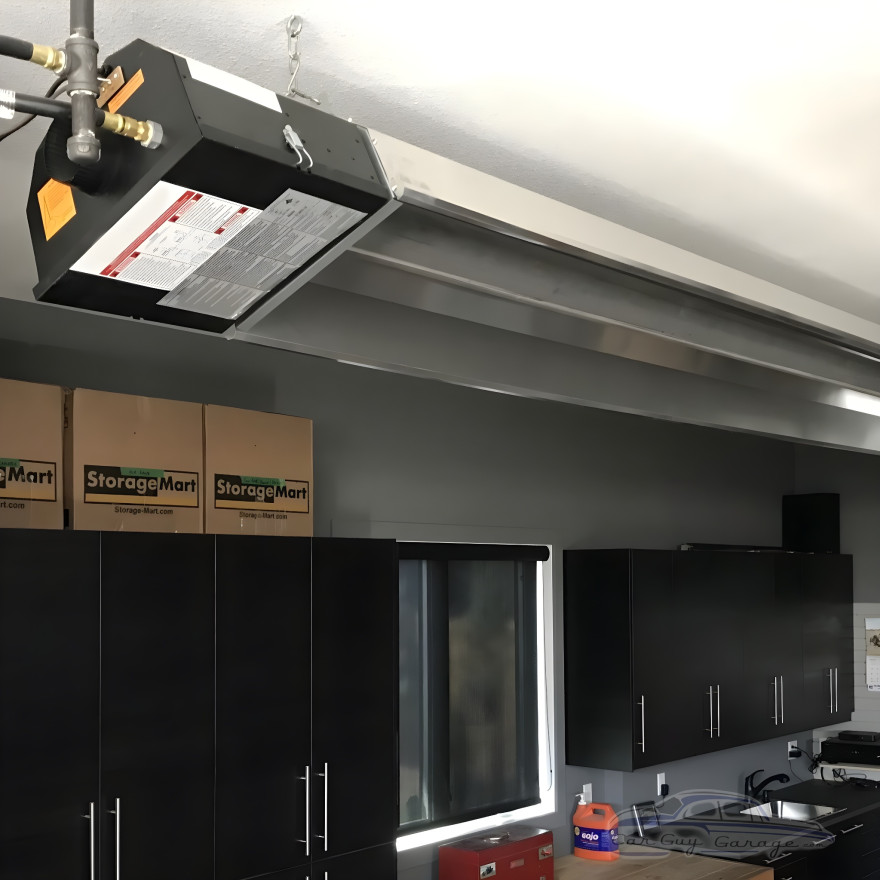

Turn your garage into a legit wrenching bay with a propane radiant tube heater for garage comfort that feels clean, steady, and shop-ready. Instead of blasting air around, its infrared heat warms the stuff that matters - floors, tools, vehicles, walls, and people. That means fewer cold-soaked tools, a warmer slab under your boots, and a workspace that is easier to enjoy when winter tries to shut the project down. The ceiling-mount design keeps your floor space open while delivering quiet, draft-free operation.

Specifications

• Heat Output: 75,000 BTU
• Heater Length: 20 feet
• Heater Width: 15 inches
• Coverage: approximately 27' x 36' (972 sq. ft.) up to 40' x 40' (1600 sq. ft.)
• Intended for a garage insulated with a minimum of an R-12 rating in the walls and roof; a non-insulated garage will consume more fuel and will feel cooler than an insulated garage
• Fuel Compatibility: natural gas or propane
• Thermostat, modulating control, and hanging kit included
• Approved for both indoor and outdoor use
• Flexible venting options through the wall or roof
• Uses 30%-40% less energy compared to conventional heating systems
• Meets low clearance requirements for safety
• 3-Try Direct Spark Ignition with 100% safety shut-off
• Instruction Manual: Instruction Manual
• Garage Heater Brochure: Garage Heater Brochure

Standard Equipment

• Pre-assembled and prewired burner control housing
• Industry-standard gas, electrical, and venting connections
• Balanced air rotor
• Thermal overload protection motor
• Visual burner inspection sight glass
• Combustion and air proving safety switch
• Low voltage thermostat connection
• 4" heat-treated aluminum combustion tube
• Aluminum reflector with largest and heaviest gauge reflector in the industry, eight-sided design, and anti-walk design to prevent shifting or twisting during expansion and contraction
• 4" mild steel radiant heat exchanger
• Tube couplers
• Joint/hanger pieces
• Heat economizer baffle

Garage-Friendly Benefits

• Helps melt snow and ice from vehicles and keeps the garage floor warm and dry
• No pilot lights to ignite manually, no valves to turn, and no thermocouples to replace
• Heavy-duty construction with high-quality stainless steel
• Sleek, architectural design
• Creates additional heated space for hobbies, vehicle maintenance, pets, crafts, and more
• Provides beneficial heat for the home in attached garage situations, including rooms above or next to the heated garage

This 75,000 BTU heater is built for people who actually spend time out there, not just for keeping a space barely above freezing. Multiple units can be grouped together to hit the length you want, and the heater line is available in various lengths and configurations. If you want quiet warmth, open floor space, and a more comfortable place to wrench, this ceiling-mount heater is ready to earn its spot overhead.
