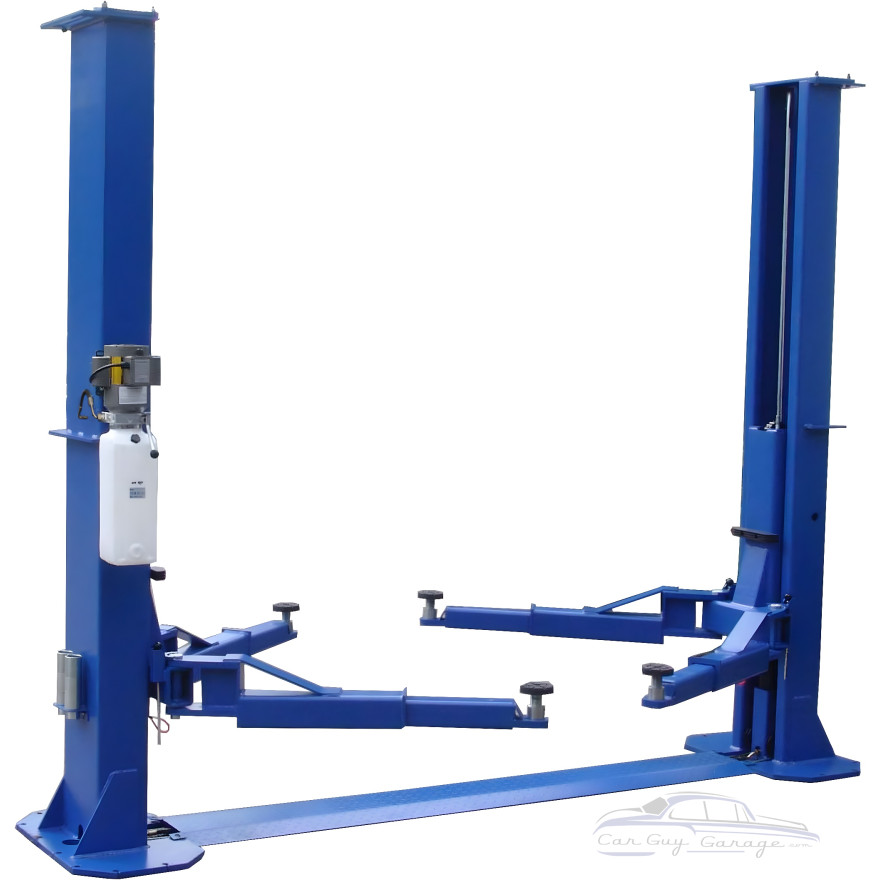

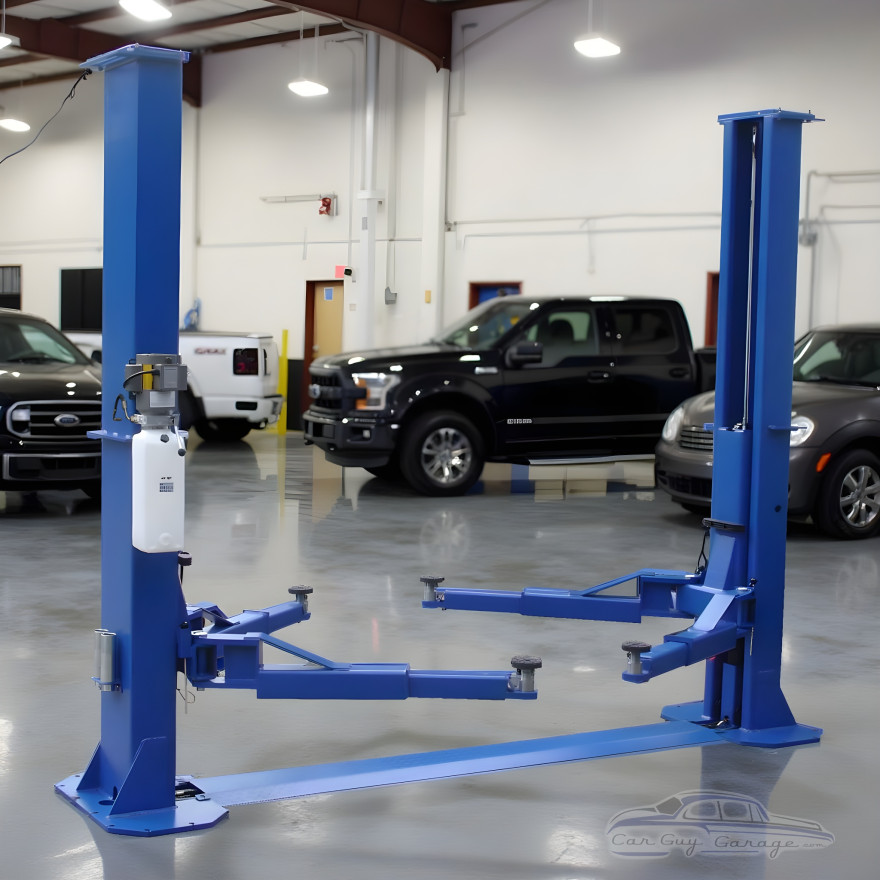

12,000 Lb Two Post Floor Plate Car Lift

  • 12,000 lbs capacity
  • Symmetric arms

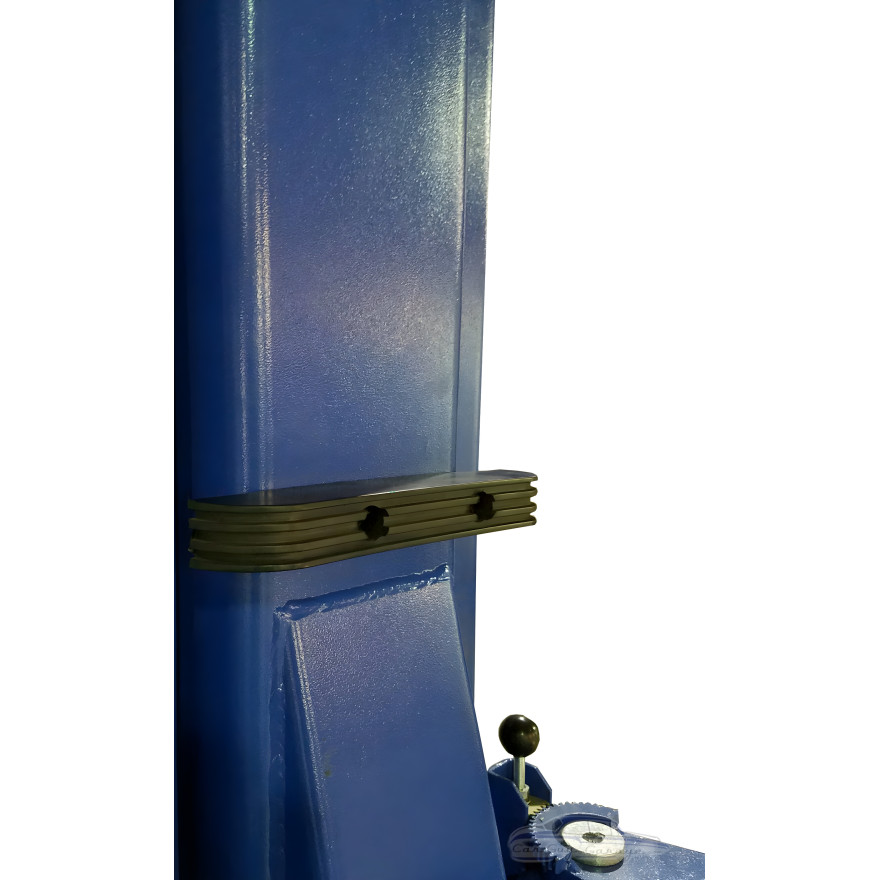

  • Rubber door guards
  • Chain drive cylinders
  • Dual point lock release
  • Auto arm restraint system

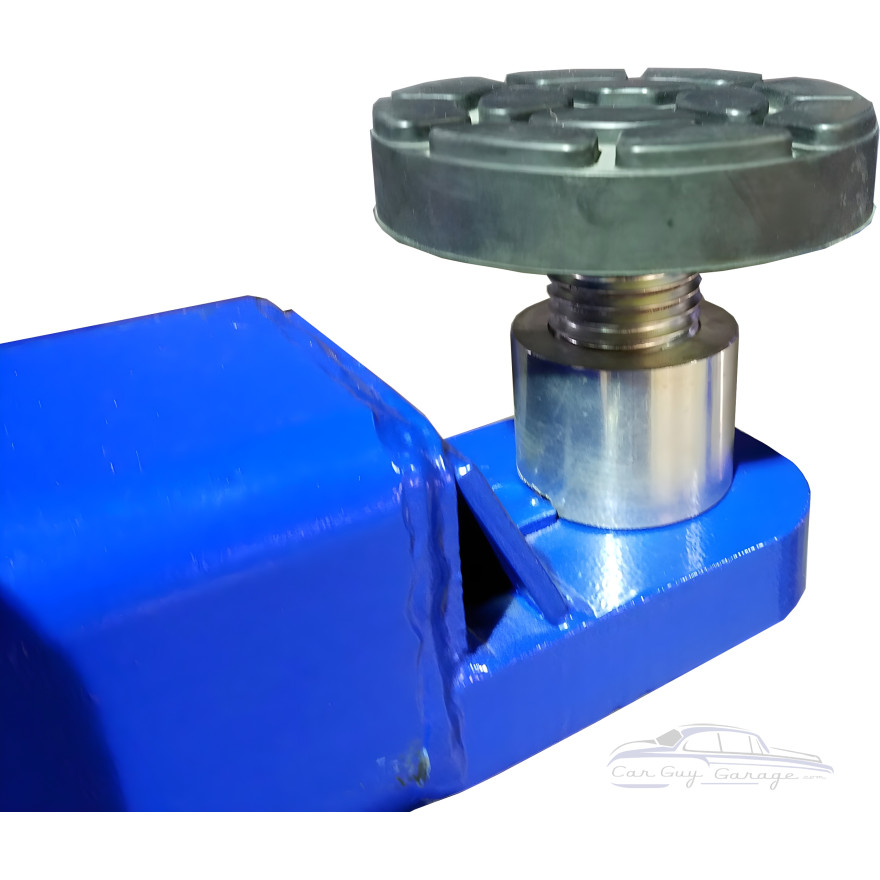

  • Spin up lift pads
  • Stackable adapters included
  • Internal hose routing

Specifications

Capacity 12,000 lbs.
Height Overall 121-1/2"
Width Overall w/ Power Unit 147-7/8"
Max Lift Height 76-1/2"
Width Between Columns 120-5/16"
Min. Pad Height 5"
Drive Thru Clearance 109"
Lifting Speed 45S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Floor Plate
Short Arm Reach - min/max 37" - 52-1/2"
Long Arm Reach - min/max Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs.
Ship Weight 2,460 lbs
Power 220V - 20 AMP - 1 PH


To read the installation manual and operating instructions click here

Concrete Requirements: 4 1/4" Min. Thickness / 3,000 PSI with steel or fiber mesh reinforcement

Typical Garage Ceiling Heights:
Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
Two Full Size Cars: 120" / 3048 mm. (10 ft)
One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)

This lift will arrive at your location on a flat bed semi truck. If you want to unload the lift at your home garage, we suggest calling up a tow truck company that has a tow truck with a boom on the back that is capable of hoisting the lift off the shipping truck when it arrives. It is the customers responsibility to have the necessary equipment to off-load the lift upon delivery.
