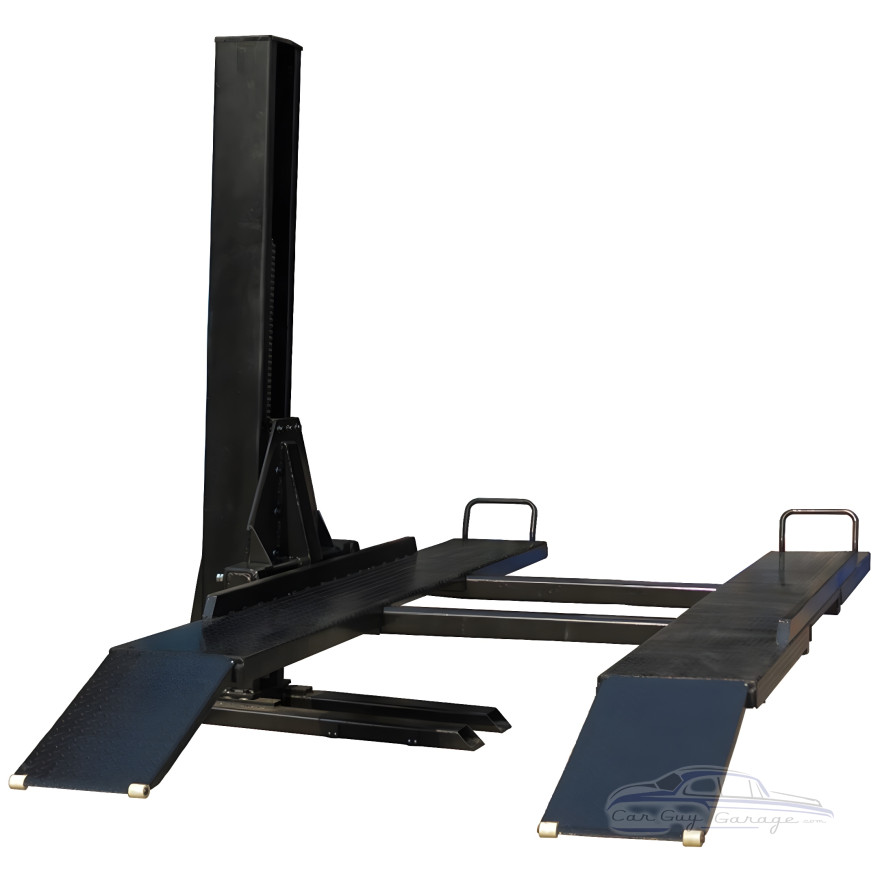

6,000 lb Single-Post Cantilever Parking Lift, 115V, Low Profile

Give your garage the kind of breathing room that makes every project, weekend cruise, and daily driver shuffle feel easier. This single post parking lift is built for drivers who want clean vehicle storage without filling the floor with a bulky setup. The cantilever design keeps things tidy, while the low approach is a big win when your pride and joy sits close to the pavement. If your garage culture is all about smart space, this is a serious upgrade.

It is a great fit for home garages, collector spaces, and tight layouts where stacking cars makes more sense than expanding the building. Use it for storing a seasonal toy, opening up more floor area, or making the most of a garage with limited room to move. The design can be installed to lift from the left or right side, giving you more flexibility when planning around walls, doors, and the way you actually use your space.

Specifications

• Capacity: 6,000 lbs

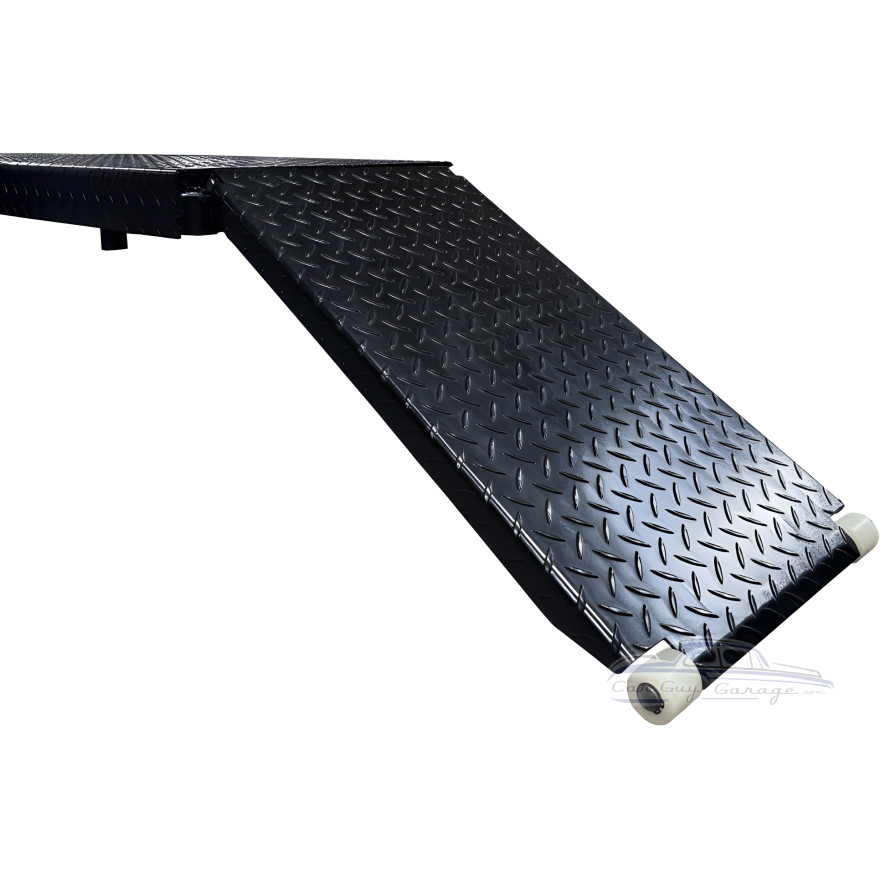

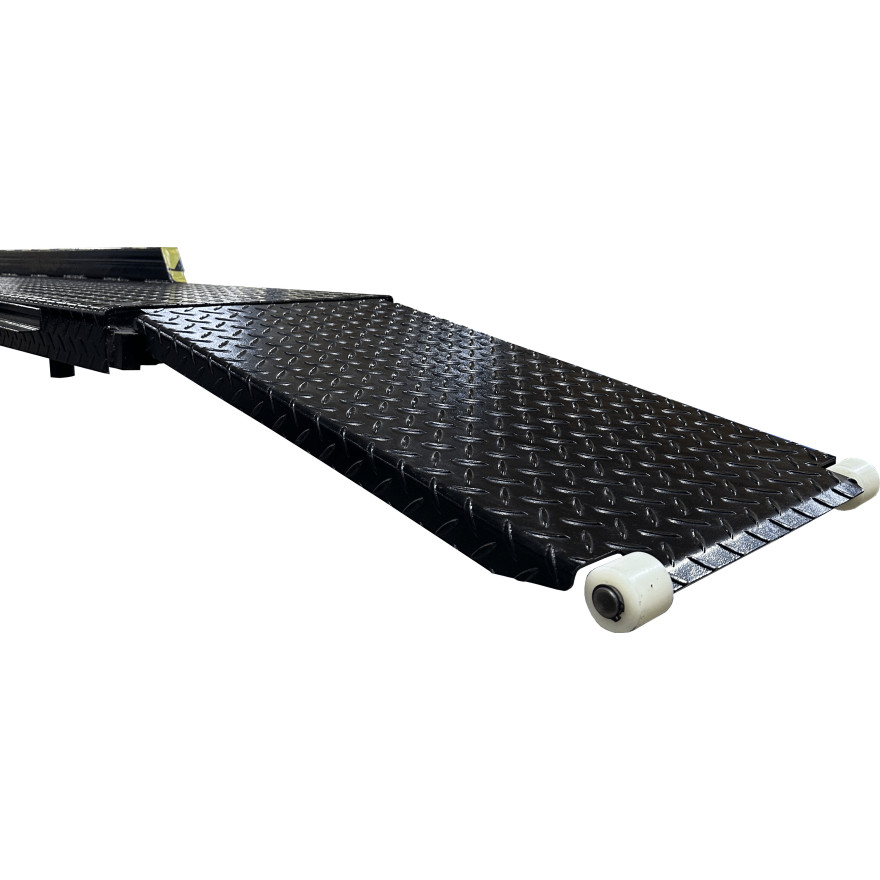

• Low profile approach ramps for vehicles with low ground clearance
• Lift can be installed to lift from left or right side
• Minimal footprint allows for multiple installations
• Low post height
• Commercial grade hydraulic cylinder and heavy-duty leaf chain
• Reliable DURO electric/hydraulic pump

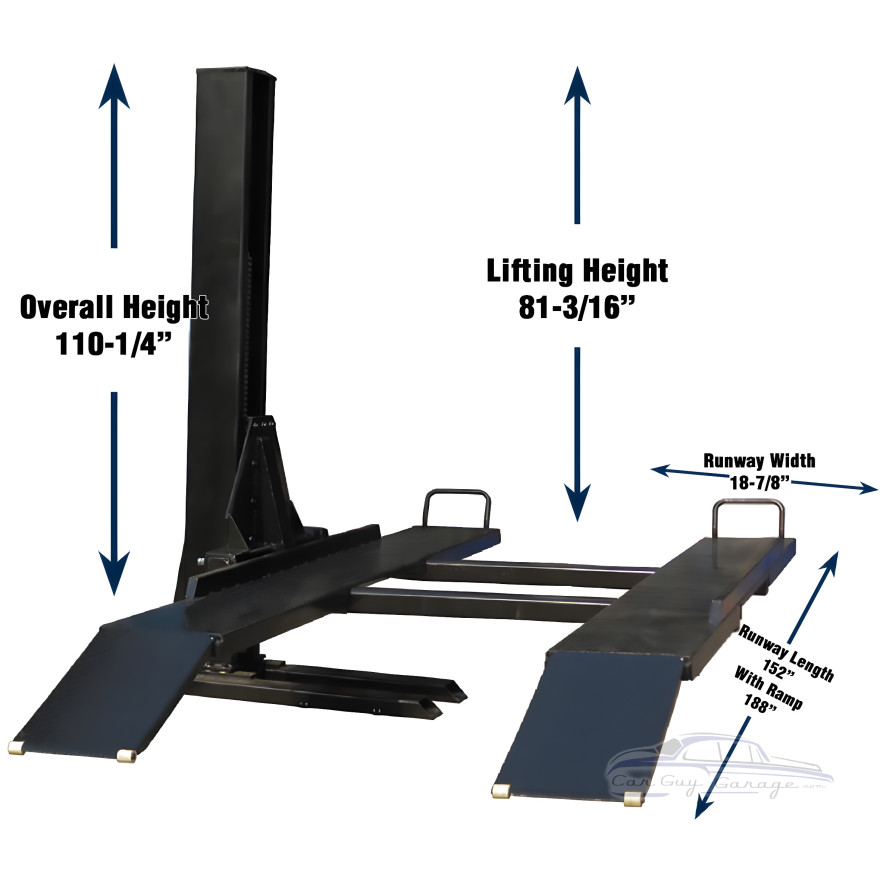

• Overall Length w/Ramp: 188"
• Overall Width (Outside Base Plates): 112-3/16"
• Overall Height: 110-1/4"
• Lifting Height: 81-3/16"
• Width Between Posts: NA

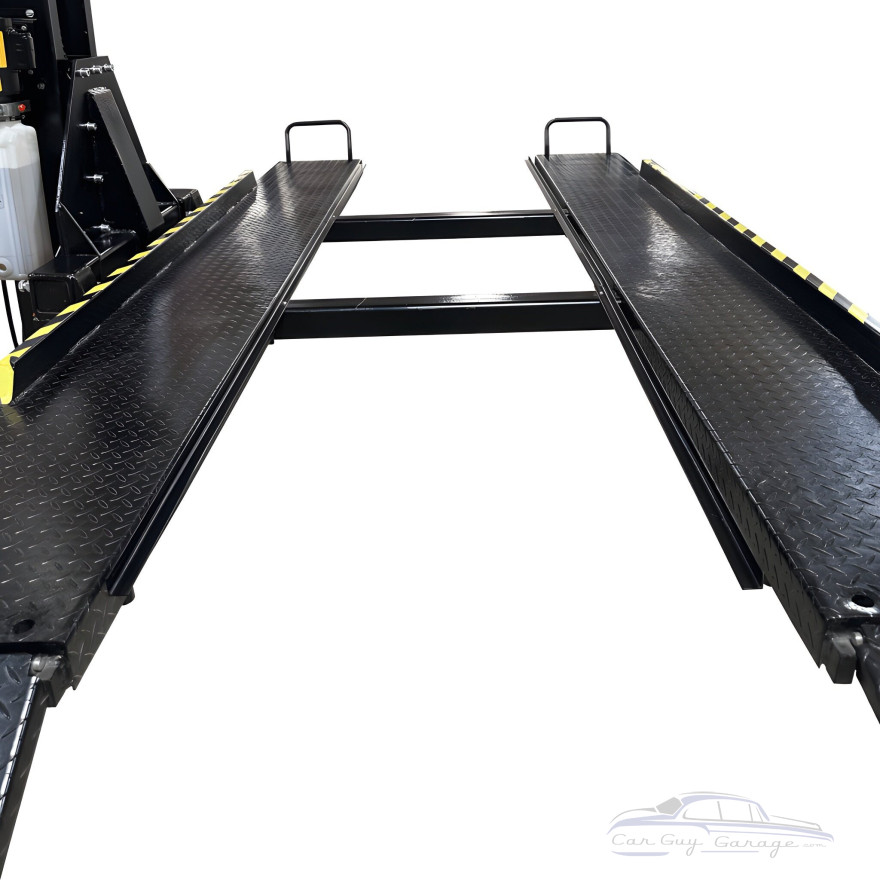

• Length of Runways: 152"
• Width of Runways: 18-7/8"
• Lifting Speed: 90S
• Maximum Clearance under Track: 77-3/16"
• Cable Diameter: 3/8"
• Base Plate Size: 52"x39"
• Lock Position: 19
• Ship Weight: 2,610 lbs
• Power: 115V - 20 Amp -1PH

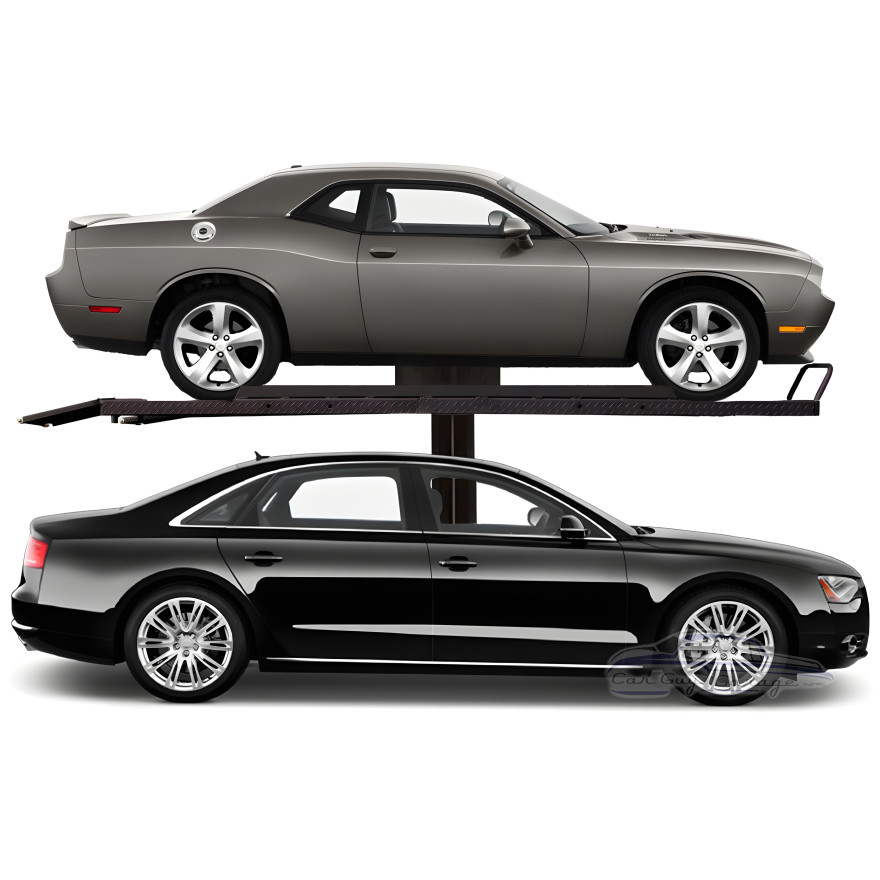

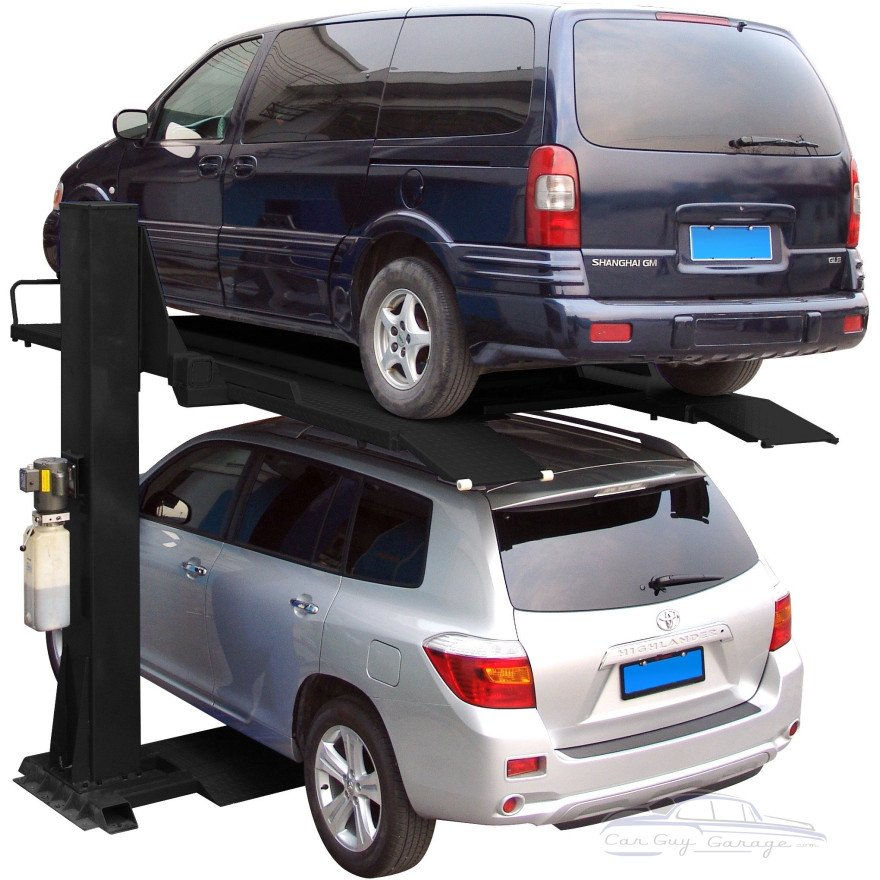

Typical Garage Ceiling Heights:
Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
Two Full Size Cars: 120" / 3048 mm. (10 ft)
One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)

Install notes and real-world tips:
Concrete should be a minimum of 6" thick and 3,000psi tensile strength with steel or fiber mesh reinforcement.
This unit features manual locks and does not require an air supply to disengage them.

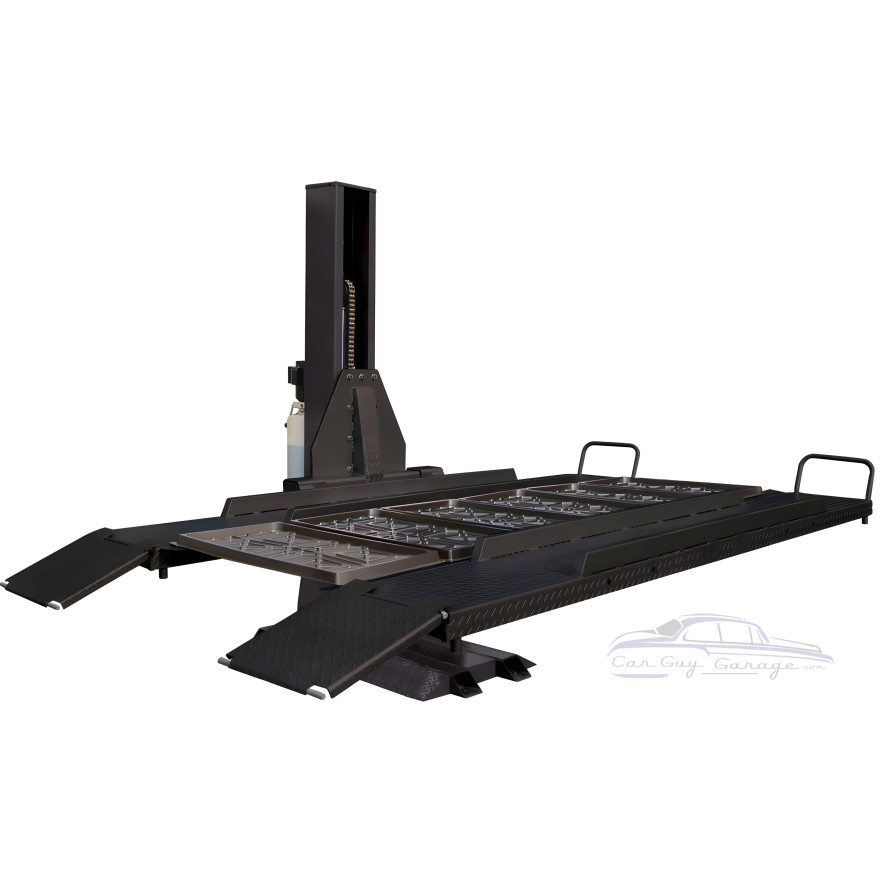

Drip tray options

• None
• 3 at 42in wide (wide runway) FP8K-DS
• 4 at 39in wide (narrow runway) FP9KDX-DT

Use the dropdown to order the setup that matches your layout from day one. Choose no trays if you want the base lift configuration, or select the wide runway or narrow runway package listed above when that better fits your garage plan.

Shipping and unloading:
This lift ships LTL on a semi truck. For home garage delivery, many customers arrange a local tow truck with a boom to hoist the lift off the freight truck. It is the customer's responsibility to have the necessary equipment to off-load upon delivery.

Want all the fine print and installation details? Click here for the full manual.

If you're unsure of your concrete floor and want to pour a concrete pad for this lift, here are the specs needed for a concrete pad.

For shoppers comparing a single post car lift for sale, this lift keeps the focus on usable storage, clean placement, and low-profile access. Pick your accessory configuration, plan your ceiling height and concrete requirements, and turn that garage into a better organized two-car space.
