12,000 lb Direct Drive Symmetric Car Lift

12,000 lb Direct Drive Symmetric Car Lift

Get your coupon code

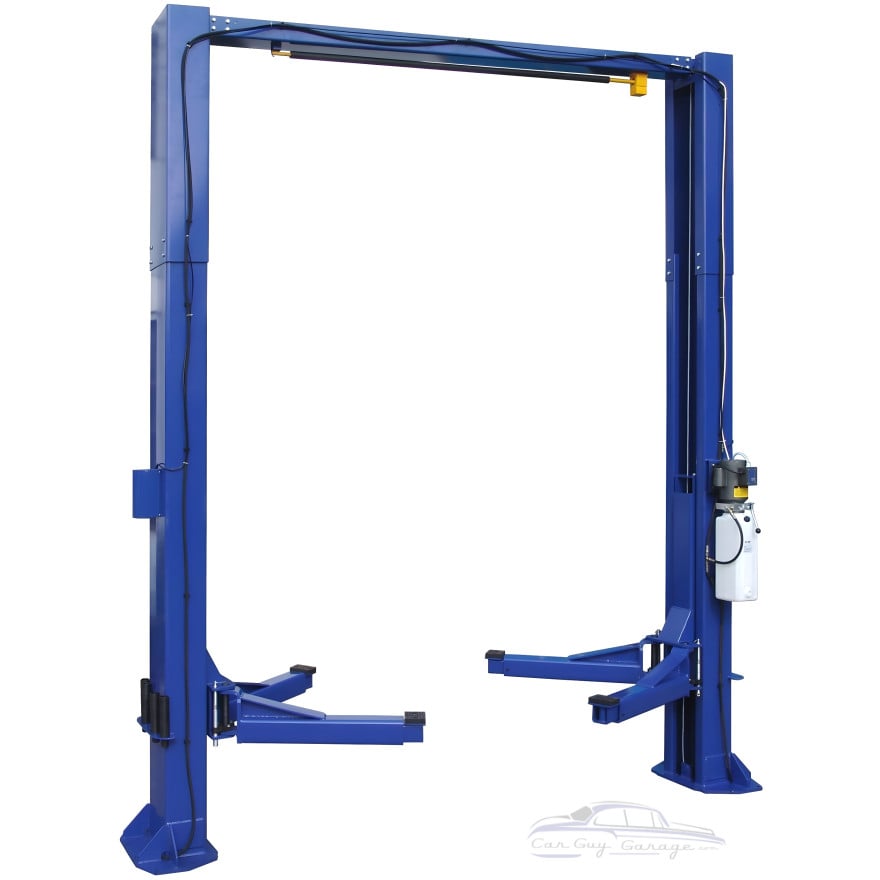

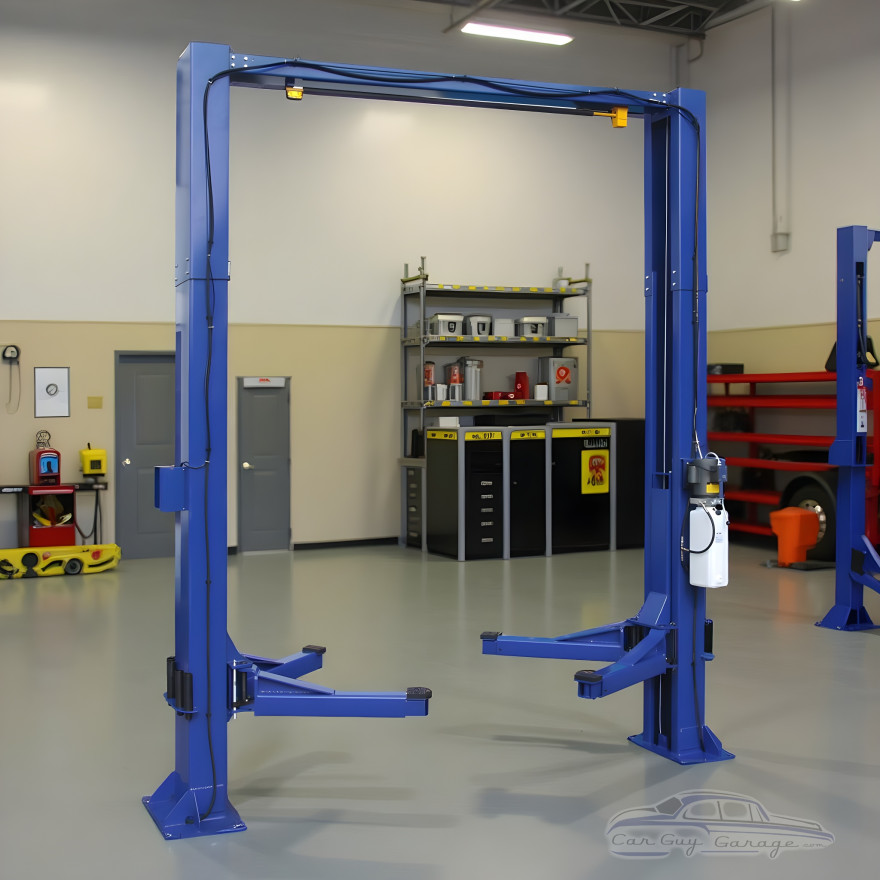

This 12,000 lb. Blue Direct Drive Symmetric Lift is ideal for those seeking a clear floor heavy duty lift to suit their commercial needs while maintaining efficient output. Direct drive lifts feature fewer rotating parts than a chain over cylinder lifts providing you with reliable service. The fully gusseted oversized base plates and big lifting arms with reinforced swivel pin holes, promise years of reliable service.
Features:

  • 12,000 lbs Capacity
  • Symmetric Arms
  • Rubber Door Guards
  • Direct Drive push Cylinders
  • Single Point pneumatic Lock Release
  • Heavy Duty Arm Restraint System
  • Drop-in Lift Pads
  • Stackable Adapters Included
  • External hose guards

Specifications

Capacity 12,000 lbs.
Height Overall 165″
Width Overall w/ Power Unit 151″
Max Lift Height 72″
Width Between Columns 122″
Min. Pad Height 5.5″
Drive Thru Clearance 109″
Lifting Speed   50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 37-5/8″ – 56-3/4″
Long Arm Reach – min/max Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs.
Ship Weight 2,295 lbs
Power 220V – 20 AMP – 1 PH

For A Full Manual and specs click here for a complete PDF on this lift

Concrete Requirements: 4" Min. Thickness / 3,500 PSI

This unit features manual locks and does not require an air supply to disengage them.
This lift will arrive at your location on an LTL semi truck. If you want to unload the lift at your home garage, we suggest calling up a tow truck company that has a tow truck with a boom on the back that is capable of hoisting the lift off the shipping truck when it arrives. It is the customers responsibility to have the necessary equipment to off-load the lift upon delivery.
