- Model: 71439
Get your coupon code

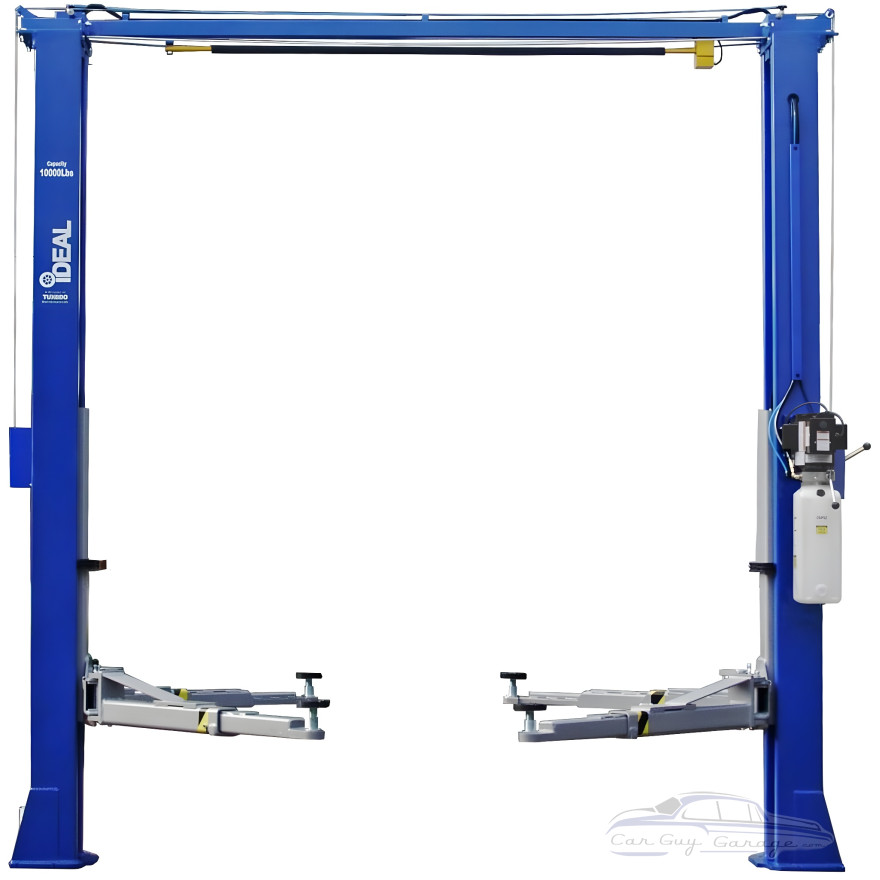

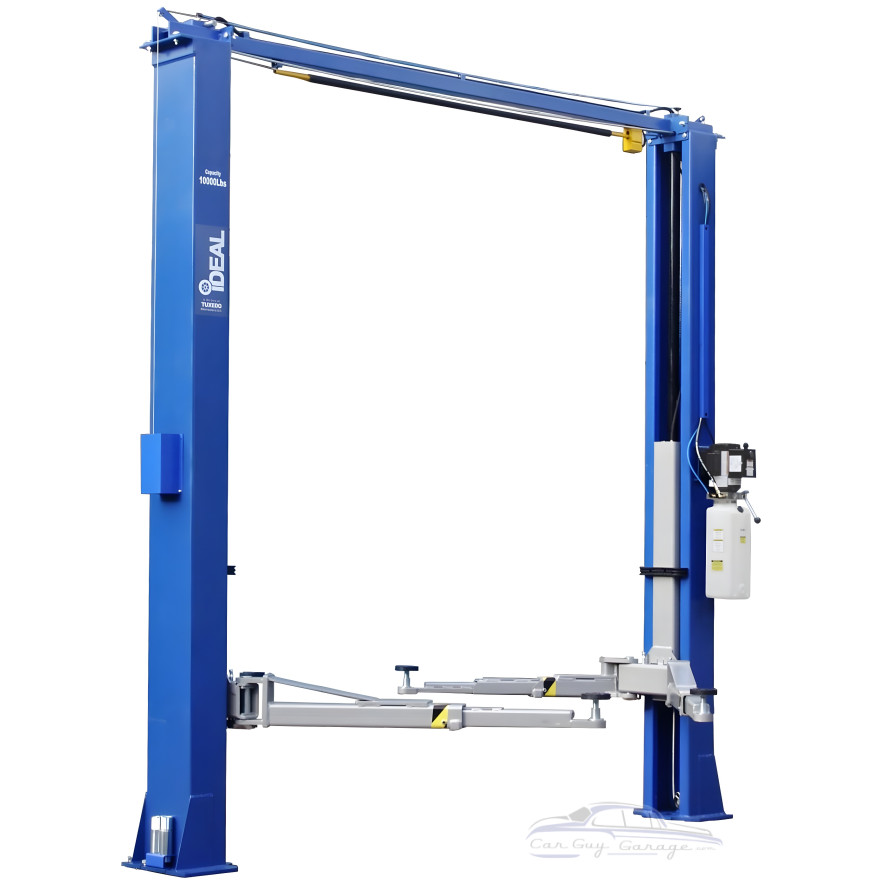

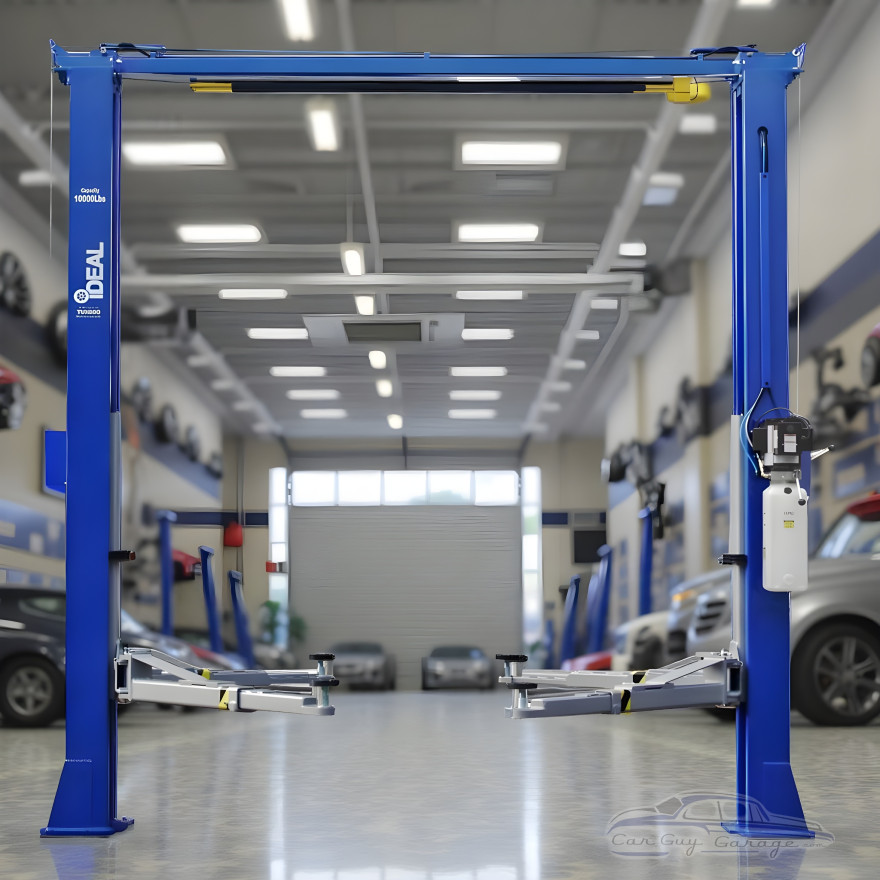

10,000 Two Post Clear Floor Direct Drive Asymmetric Car Lift
- ALI certified
- 10,000 lbs capacity

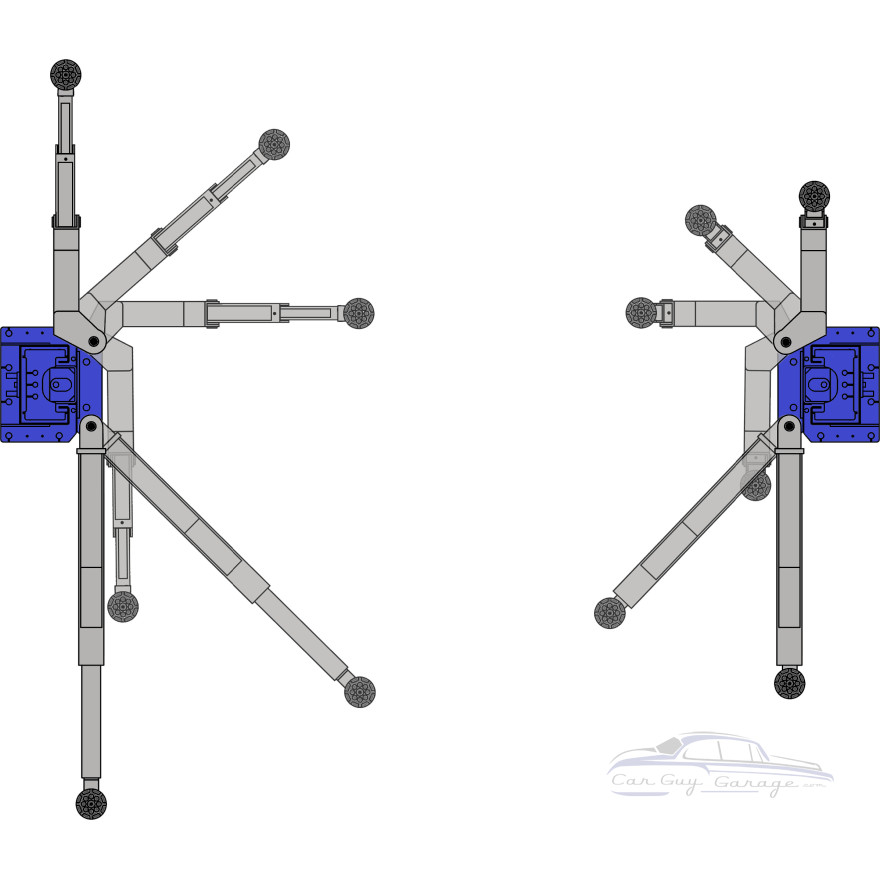

- Bi-Symmetric arm design
- Rubber door guards

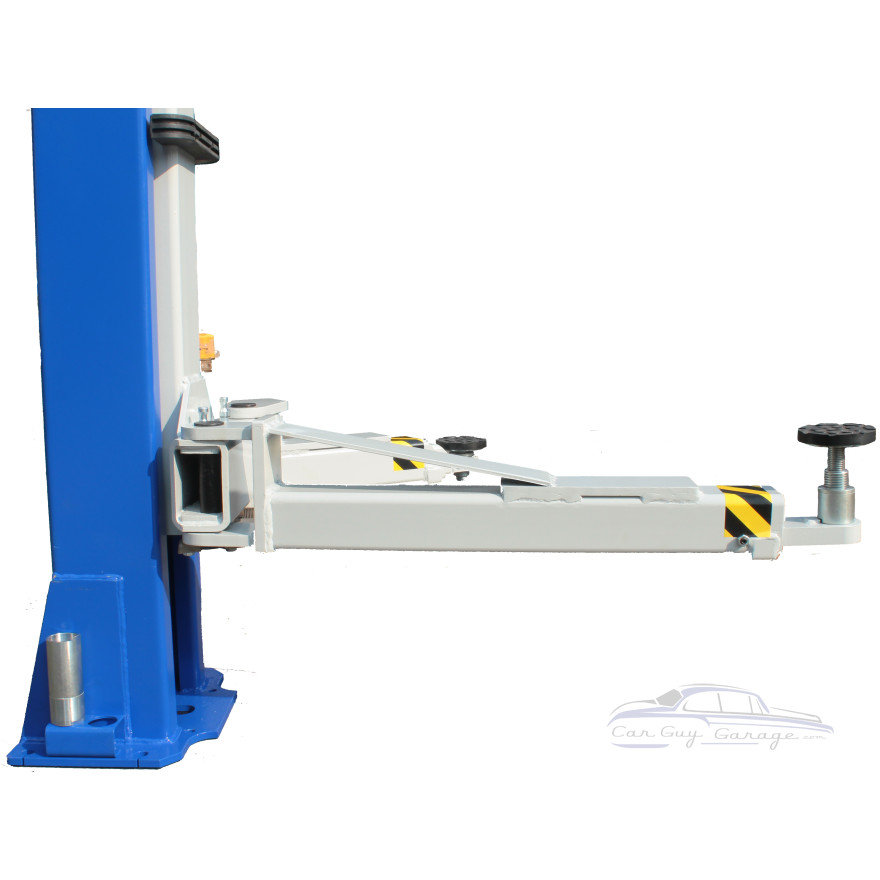

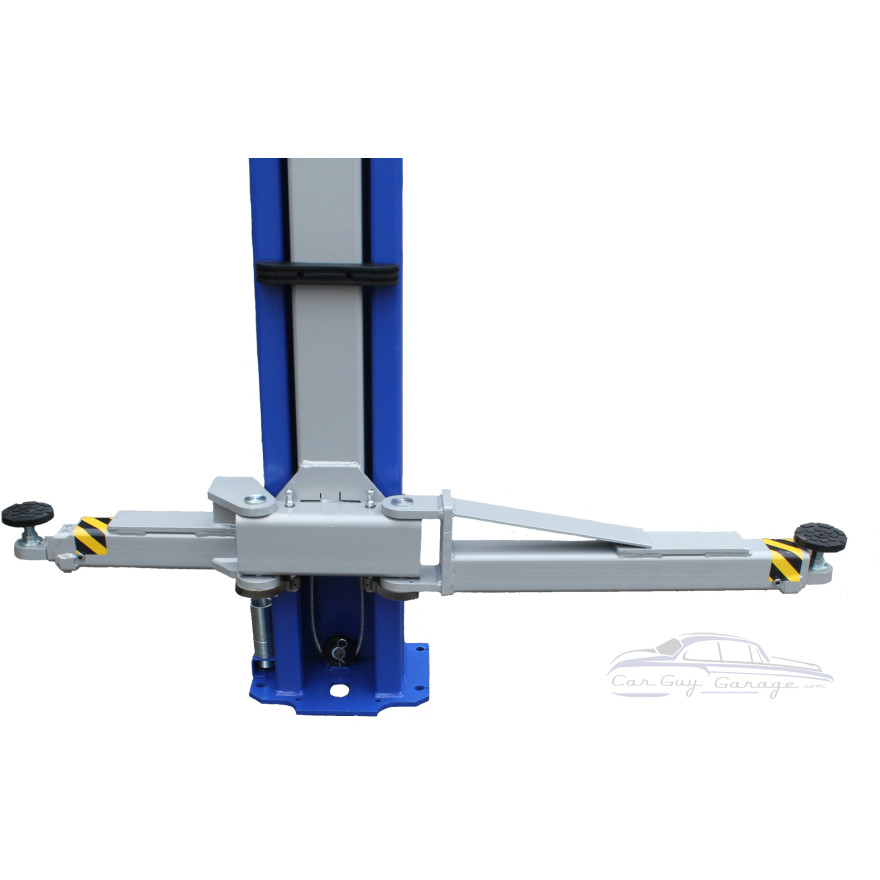

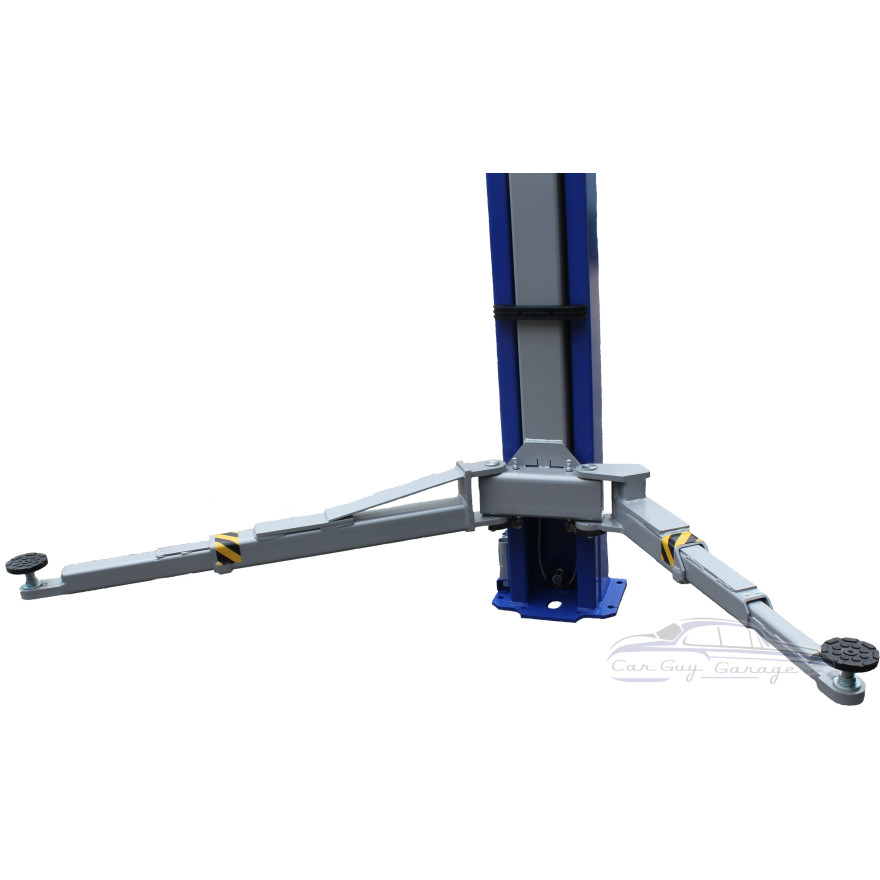

- 3 Stage front arms
- Single piece column
- Direct drive pull cylinders
- Single point lock release
- Heavy duty arm restraint system
- Spin up low profile lift pads
- Stackable adapters included
- External hose guards
- Duro certifed power unit – MET, UL, CSA
Specifications
Capacity | 10,000 lbs. |
Height Overall | 144″ |
Width Overall w/ Power Unit | 145-1/2″ |
Max Lift Height | 71″ |
Width Between Columns | 116″ |
Min. Pad Height | 4″ |
Drive Thru Clearance | 104″ |
Lifting Speed | 50S |
Asymmetric / Symmetric | Bi-Symmetric |
Clear Floor / Floor Plate | Clear Floor |
Short Arm Reach – min/max | 23″-45″ |
Long Arm Reach – min/max | 41″-59″ |
Narrow Bay Setting | NA |
Max Load Per Arm | 2,500 lbs |
Ship Weight | 1,705 lbs |
Power | 220V – 20 AMP – 1 PH |
To read the installation manual and operating instructions click here
Concrete Requirements: 4 1/4" Min. Thickness / 3,000 PSI
Typical Garage Ceiling Heights:
Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
Two Full Size Cars: 120" / 3048 mm. (10 ft)
One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)
This lift will arrive at your location on a flat bed semi truck. If you want to unload the lift at your home garage, we suggest calling up a tow truck company that has a tow truck with a boom on the back that is capable of hoisting the lift off the shipping truck when it arrives. It is the customers responsibility to have the necessary equipment to off-load the lift upon delivery.
