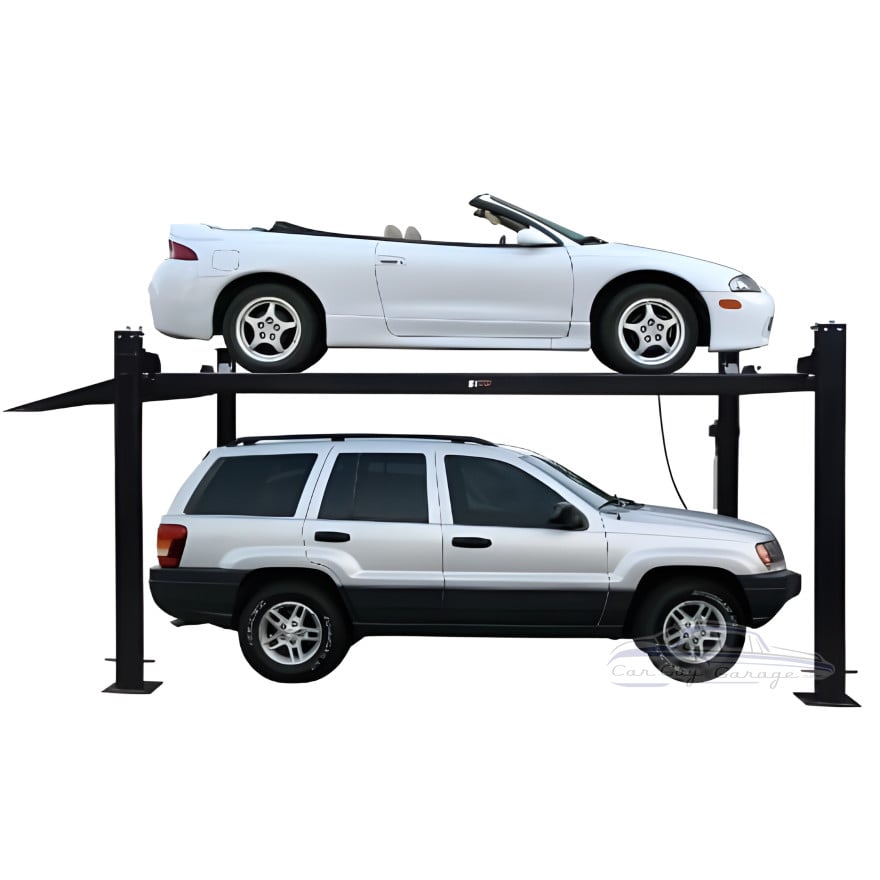

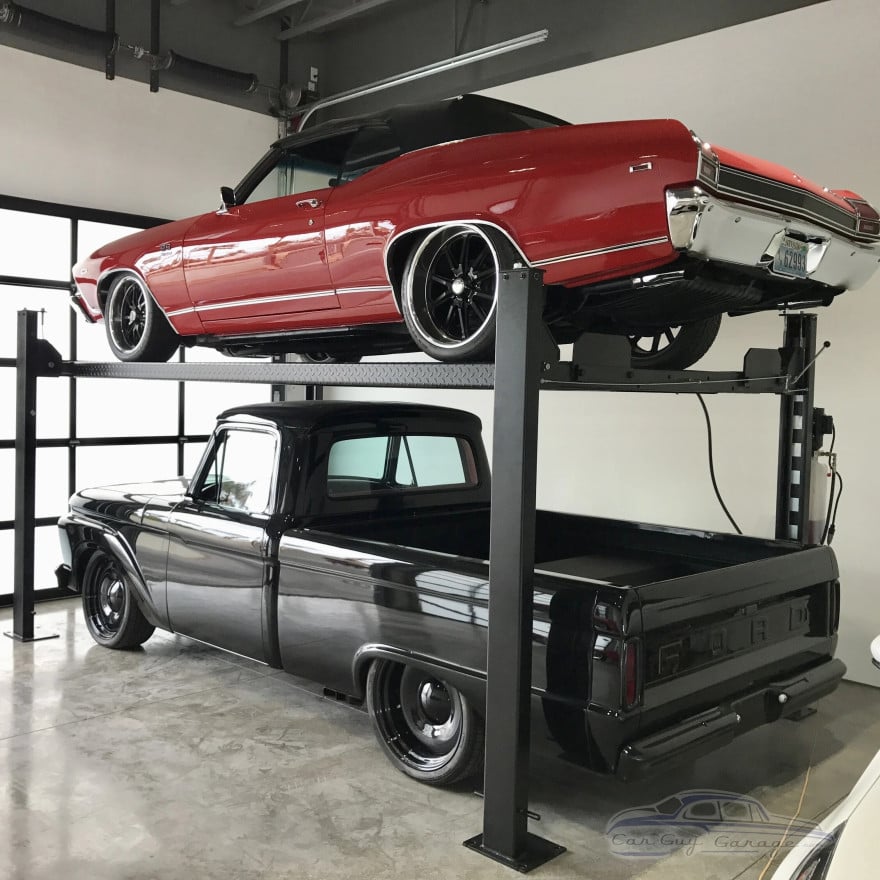

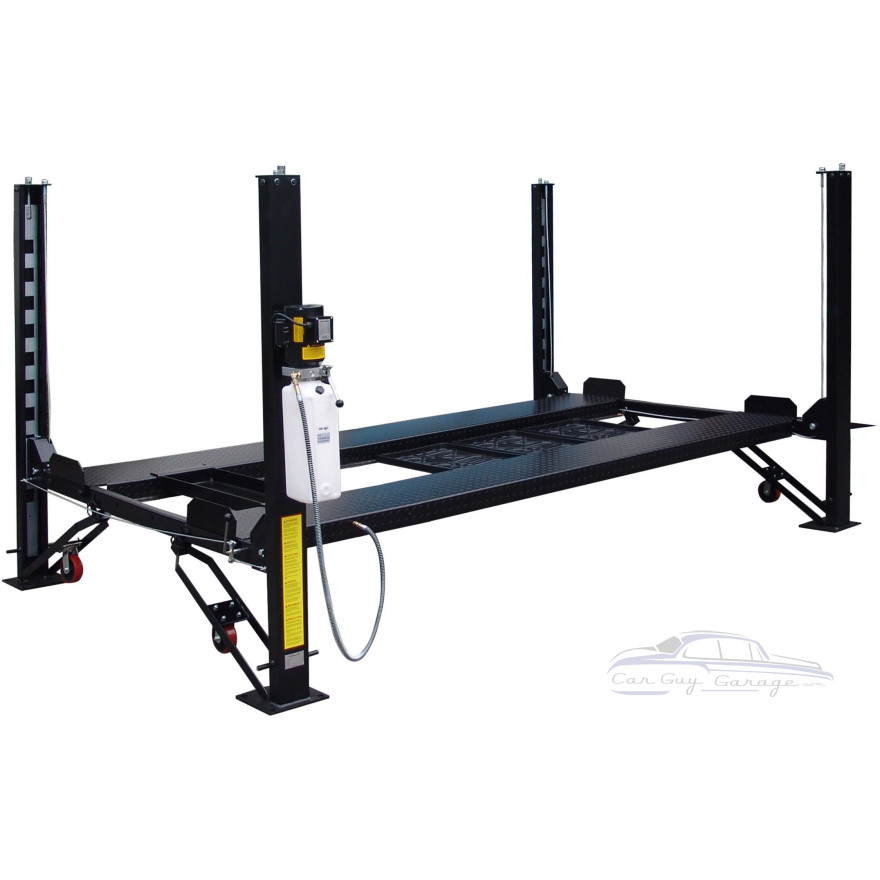

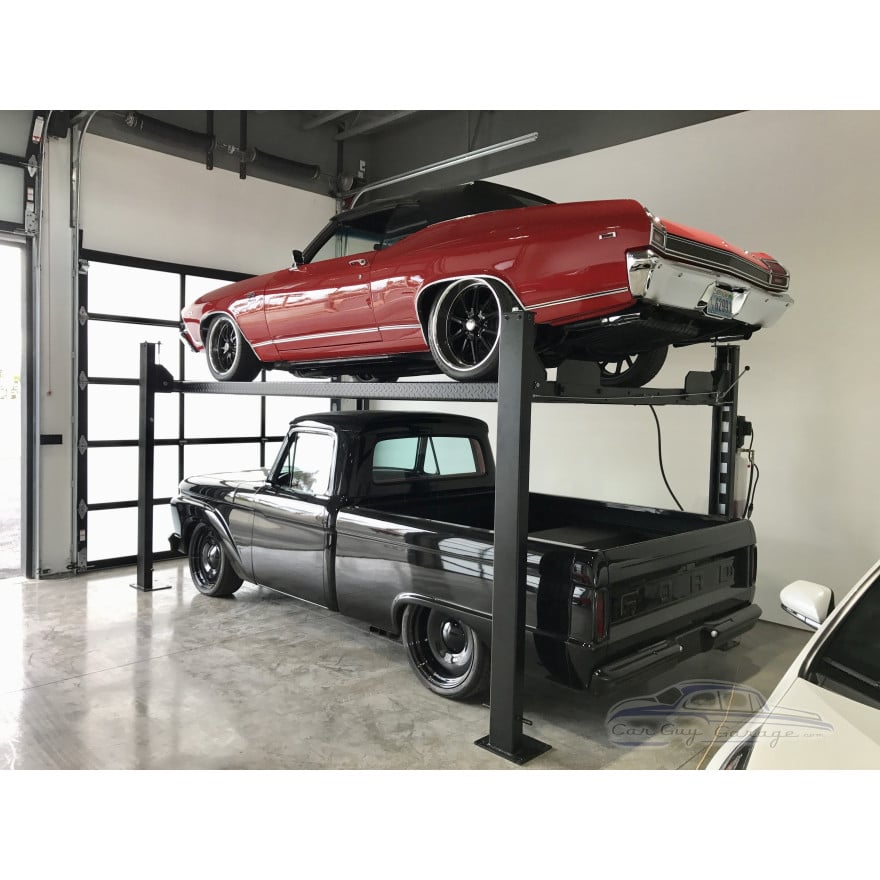

The 8,000 lb Four Post Deluxe Storage Lift Extended Length / Height provides more than just smooth operation and good looks. The safety features and durability make it the best choice for your service and storage lift needs. This version provides a longer length and height to accommodate larger vehicles.
- 8,000 lbs. Capacity
- Extended Lift Height & Length
- Cable Driven
- Single Point Manual Lock Release
- Adjustable Locking Positions
- Slack Cable Safety
- Steel Approach Ramps
- Fits in larger residential garages
- Great for storage of many full-size trucks
- Includes Drip Trays, Jack Tray & poly Caster Kit
|Overall Length w/Ramp||222-1/2″|
|Overall Width (Outside Base Plates)||109-3/8″|
|Width Between Posts||100-5/16″|
|Length of Runways||180-1/2″|
|Width of Runways||18-5/8″|
|Maximum Clearance under Track||78″|
|Base Plate Size||10″ x 12″|
|Ship Weight||1,800 lbs|
115V 20 Amp 1PH
Typical Garage Ceiling Heights:
Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
Two Full Size Cars: 120" / 3048 mm. (10 ft)
One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)
Concrete Requirements: 4 1/4" Min. Thickness / 3000 PSI
This unit features manual locks and does not require an air supply to disengage them.
This lift will arrive at your location on an LTL semi truck. To unload the lift at your home garage, we suggest calling a tow truck company and scheduling a truck with a boom that is capable of hoisting the lift off the shipping truck when it arrives at the delivery location. It is the customer's responsibility to have the necessary equipment to off-load the lift upon delivery.

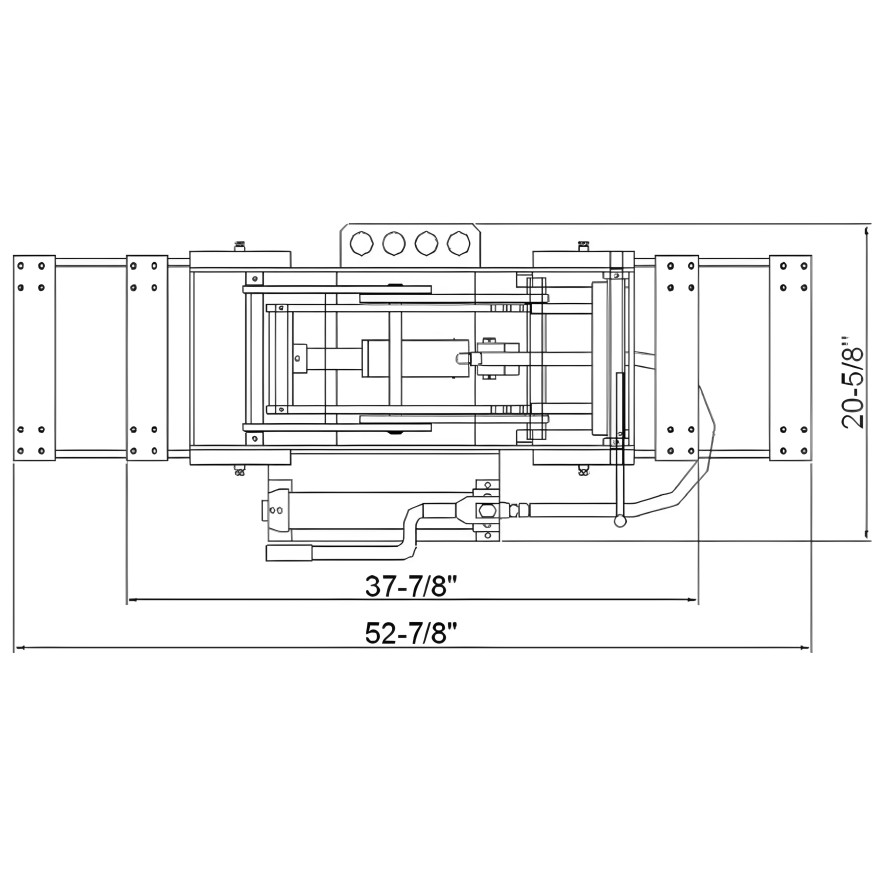

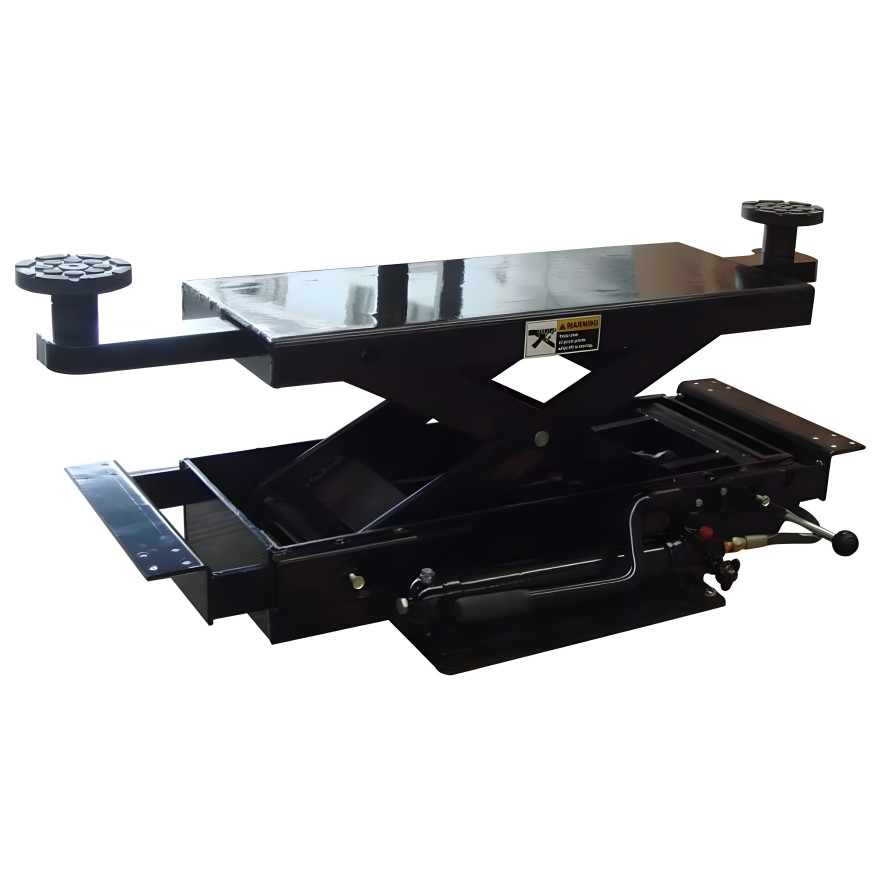

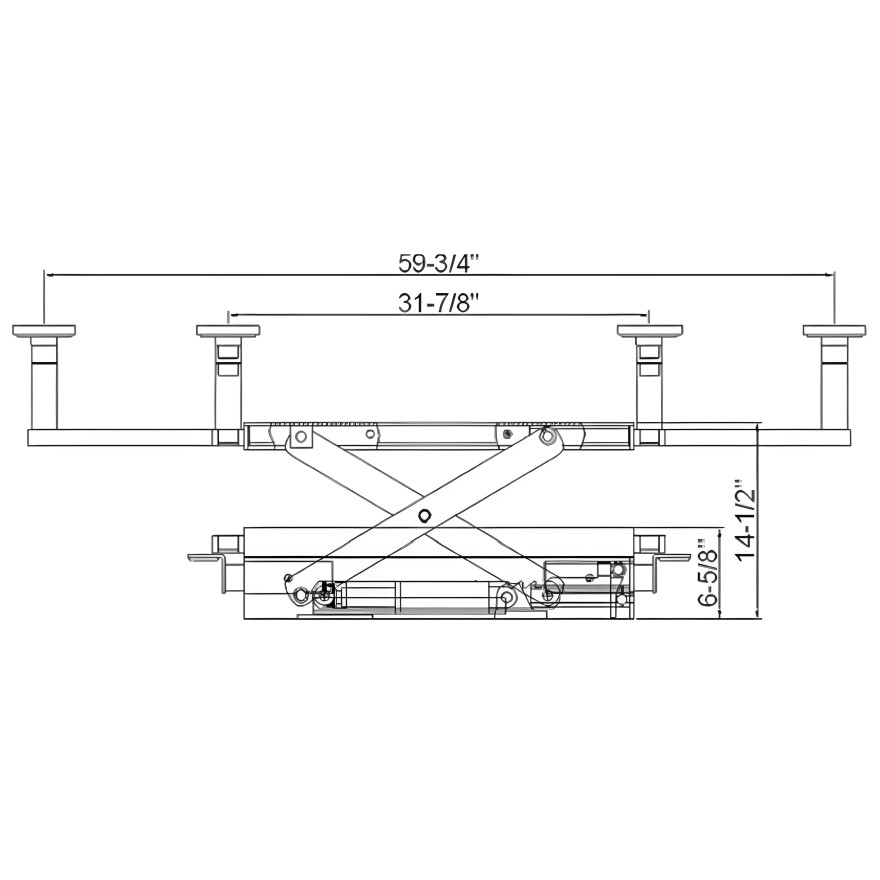

Optional Sliding Scissor Jack
Adding on the optional sliding scissor jack enables you to raise up the car by the frame while the car is on the lift. This lets you remove the tire and work on the car while it is on the lift.
- Low profile eliminating the need to swing away when the lift is at floor level
- 3,500 lbs capacity, suitable for any passenger cars
- Equipped with hand-operated pump
- Overall length: 37 7/8"
- Overall width: 20 5/8"
- Lifting height: 6 5/8 - 14 1/2"
- Lifting capacity: 3,500 lbs
- Long arm extensions: 31 7/8 - 59 3/4"
- Movable stand extensions: 37 7/8 - 52 7/8"
To include the sliding jack, select the option from the dropdown menu and click add to cart.
