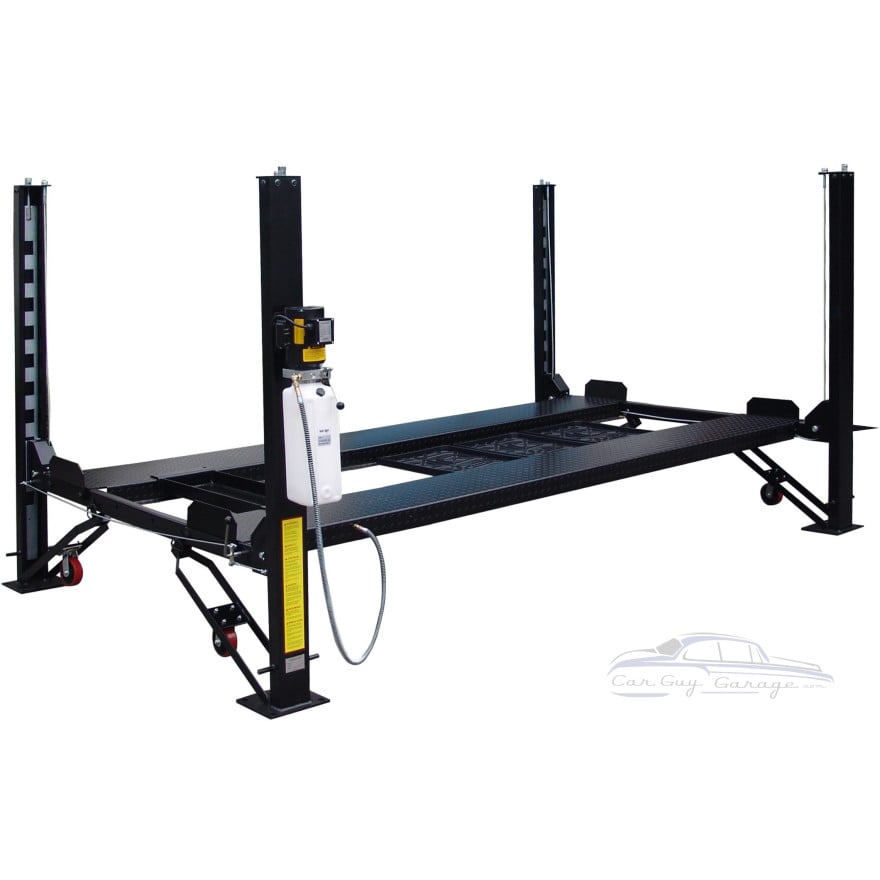

8,000 lb Home 4 Post Car Lift with Drip Trays and Casters

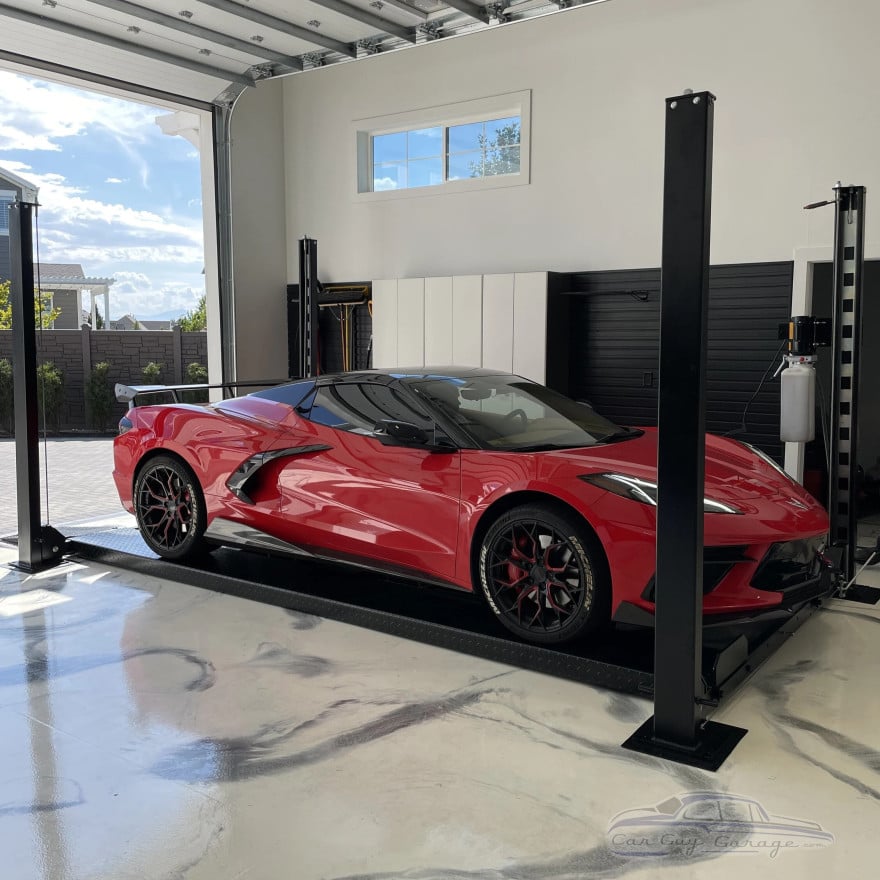

Turn a tight garage into a smarter workspace with this home 4 post car lift built for storage, detailing, and weekend wrenching. The drive-on layout keeps daily use simple, while the safety features and included garage-friendly add-ons make it easy to live with in a real residential setup. It is a strong fit for car lovers who want more room for parking, more access for projects, and a cleaner way to organize the space around their vehicles. If your garage is equal parts parking spot and passion project, this setup brings serious capability without overcomplicating the job.

Specifications

• Capacity: 8,000 lbs
• Cable driven
• Single point manual lock release
• Lock Position: 10 adjustable locking positions
• Slack cable safety
• Steel approach ramps
• Fits in most residential garages
• Includes drip trays, jack tray and poly caster kit
• Overall Length w/Ramp: 207-5/16"
• Overall Width (Outside Base Plates): 103-1/2"
• Overall Height: 86"
• Lifting Height: 74-3/4"
• Width Between Posts: 94-1/2"
• Length of Runways: 165-1/2"
• Width of Runways: 18-5/8"
• Lifting Speed: 90S
• Maximum Clearance under Track: 70"
• Cable Diameter: 3/8"
• Base Plate Size: 10" x 12"
• Ship Weight: 1,705 lbs
• Power: 115V - 20 Amp - 1PH; selectable Power Unit options: 110V/1 Phase or 220V/1 Phase 30 Amp Fuse

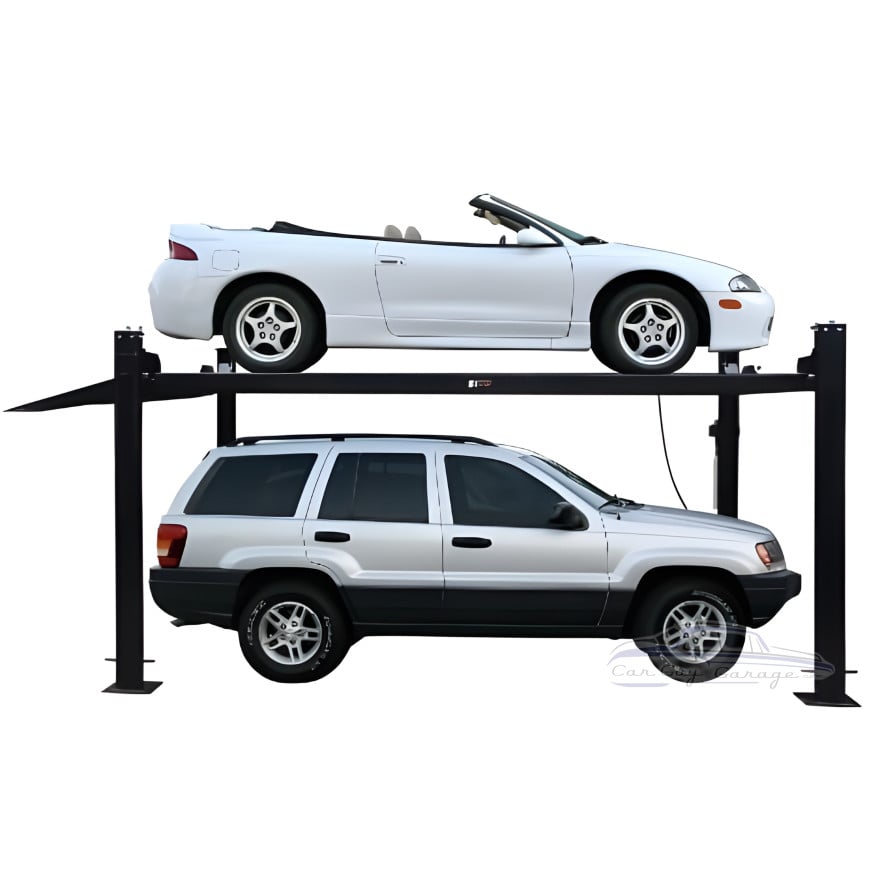

• Typical Garage Ceiling Heights: Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft); Two Full Size Cars: 120" / 3048 mm. (10 ft); One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)
• Concrete Requirements: 4 1/4" Min. Thickness / 3000 PSI
• Manual locks do not require an air supply to disengage them

Power Unit and Sliding Jack Options

Select the power unit and choose the lift with or without the sliding scissor jack. With the jack tray in place, the optional jack lets you lift by the frame for wheel work, including tire rotations, brake jobs, and suspension tweaks on a home garage lift.

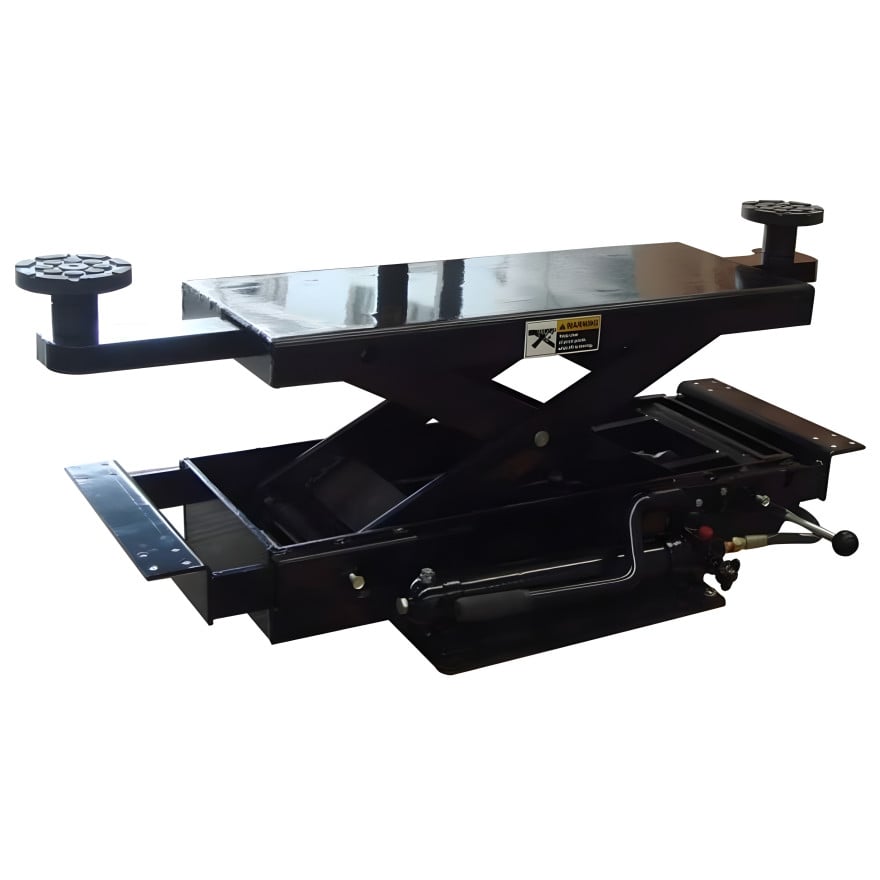

Sliding Scissor Jack Details

• Low profile eliminating the need to swing away when the lift is at floor level
• Equipped with hand-operated pump

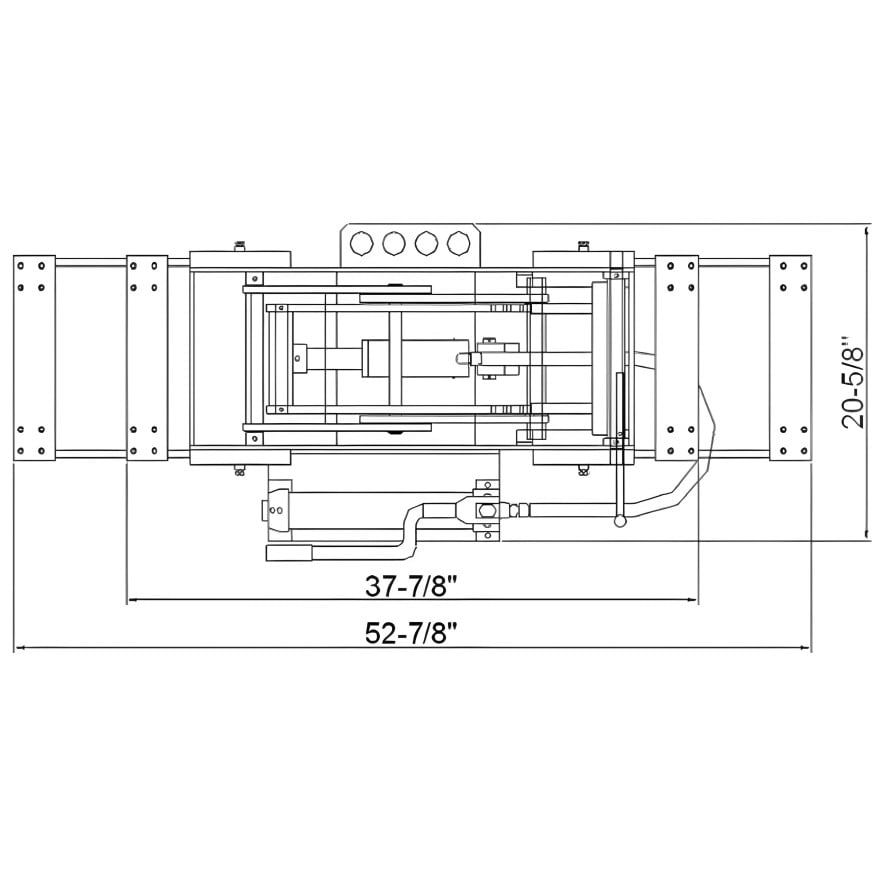

• Overall length: 37 7/8"
• Overall width: 20 5/8"

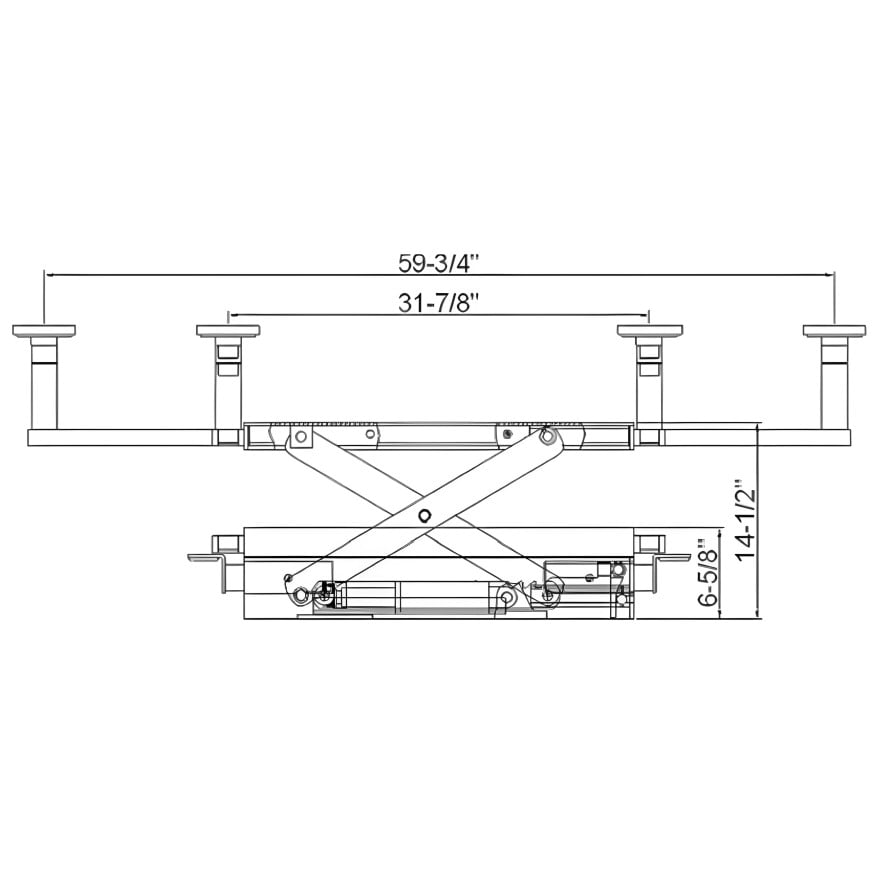

• Lifting height: 6 5/8 - 14 1/2"
• Lifting capacity: 3,500 lbs, suitable for most passenger cars
• Long arm extensions: 31 7/8 - 59 3/4"
• Movable stand extensions: 37 7/8 - 52 7/8"

To read the installation manual and operating instructions click here.

Delivery Note

This lift will arrive at your location on an LTL semi truck. To unload the lift at your home garage, we suggest calling a tow truck company and scheduling a truck with a boom that is capable of hoisting the lift off the shipping truck when it arrives at the delivery location. It is the customer's responsibility to have the necessary equipment to off-load the lift upon delivery.

Choose the configuration that matches your garage, then get ready to make better use of your floor space for parking, storage, and home service.
