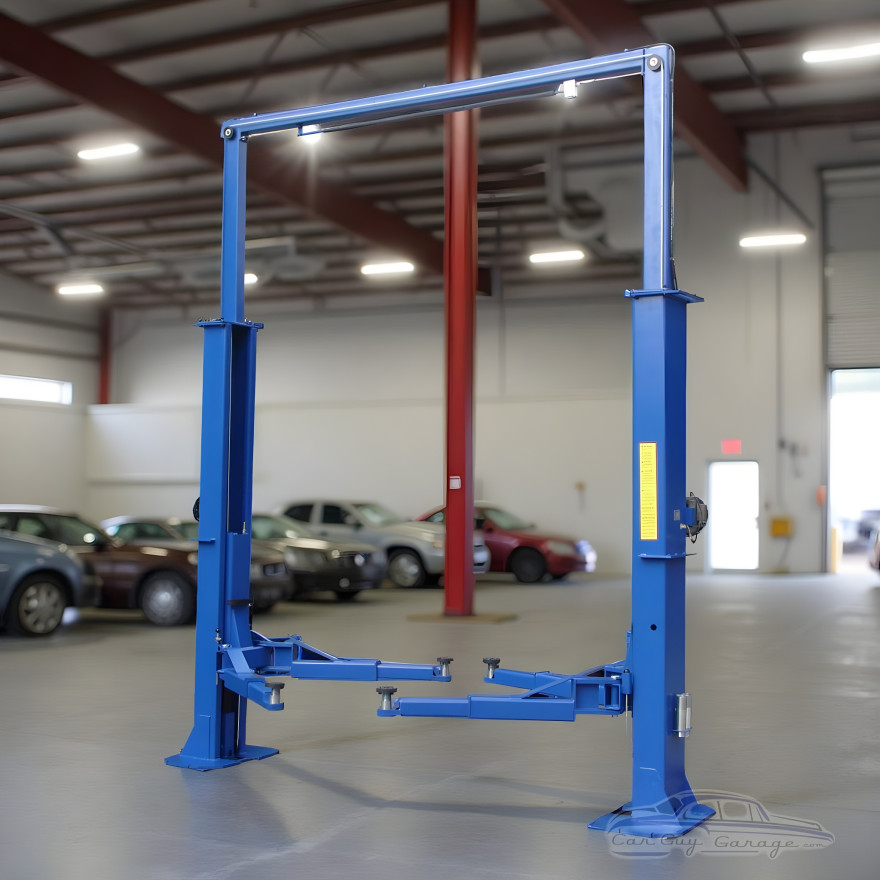

15,000 lb Heavy Duty 2 Post Car and Truck Lift, Clear Floor Symmetric

This 15,000 lb Heavy Duty 2 Post Car and Truck Lift is built for serious garage work, service bays, and truck-heavy jobs where capacity and open floor space matter. The clear floor layout keeps the work area easier to move through, so tool carts, creepers, and other shop gear are not fighting a floor plate. Symmetric arms make it a strong choice for longer vehicles and truck lift duties. Large twin 3" cylinders with low friction chain rollers, large base plates for extra stability, and an automatic electric override help support daily shop use.

Features

• Rubber door guards
• Chain drive cylinders
• Dual point lock release
• Auto arm restraint system
• Spin up lift pads
• Stackable adapter included
• Internal hose routing

Specifications

• Capacity: 15,000 lbs.
• Height Overall: 179-3/8"
• Width Overall w/ Power Unit: 148-3/8"
• Max Lift Height: 76-1/2"
• Width Between Columns: 120-3/4"
• Min. Pad Height: 5"
• Drive Thru Clearance: 109-3/8"
• Lifting Speed: 45S
• Asymmetric / Symmetric: Symmetric
• Clear Floor / Floor Plate: Clear Floor
• Short Arm Reach - min/max: 37" - 52"
• Long Arm Reach - min/max: Same
• Narrow Bay Setting: NA
• Max Load Per Arm: 3,750 lbs.
• Ship Weight: 2,575 lbs
• Power: 220V - 20 AMP - 1 PH

Real-world shop perks

• Clear floor layout keeps the work area open and easy to roll tool carts, transmission jacks, and creepers through.
• Symmetric setup is ideal for truck lift duties and long-wheelbase work.
• Made for garage and commercial bays alike - perfect as a primary lift or a dedicated service bay unit.

Installation and planning

• Concrete should be a minimum of 4 1/4" thick and 3,000 psi tensile strength with steel or fiber mesh reinforcement.
• This unit features manual locks and does not require an air supply to disengage them.

Manuals

To read the installation manual and operating instructions click here

Typical garage ceiling heights

• Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
• Two Full Size Cars: 120" / 3048 mm. (10 ft)
• One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)

Shipping and delivery

• This lift will arrive at your location on an LTL semi truck.
• If you want to unload the lift at your home garage, we suggest calling up a tow truck company that has a tow truck with a boom on the back that is capable of hoisting the lift off the shipping truck when it arrives.
• It is the customer's responsibility to have the necessary equipment to offload the lift upon delivery.

Plan your ceiling height, concrete, and unloading before delivery, then get ready to put this lift to work.
