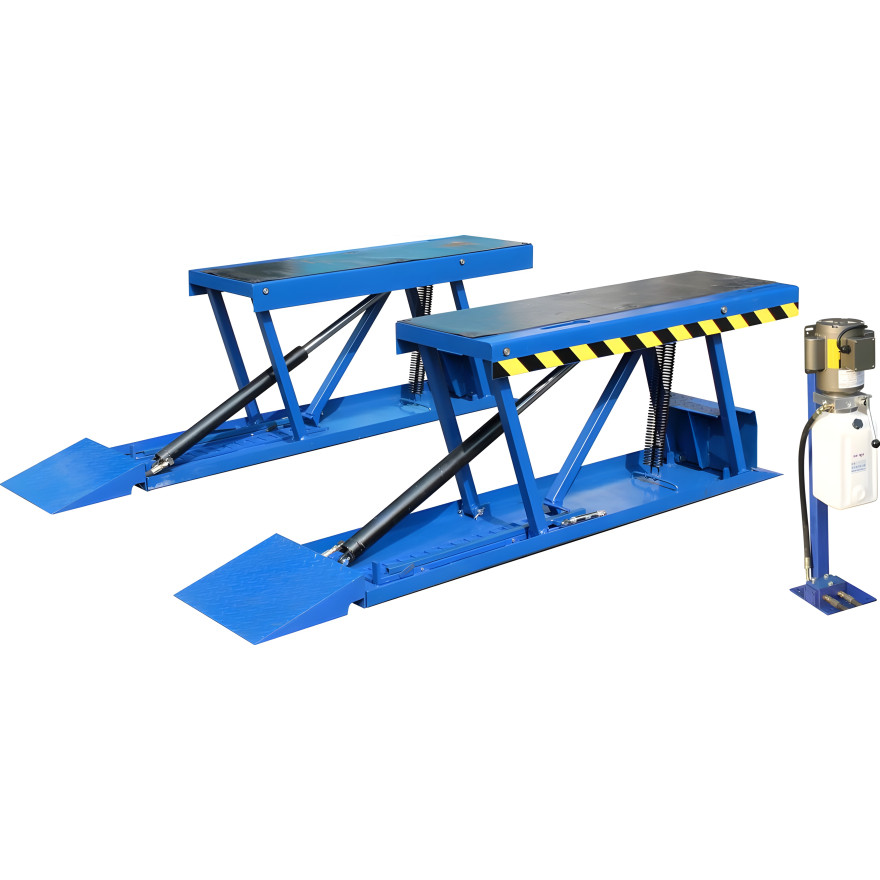

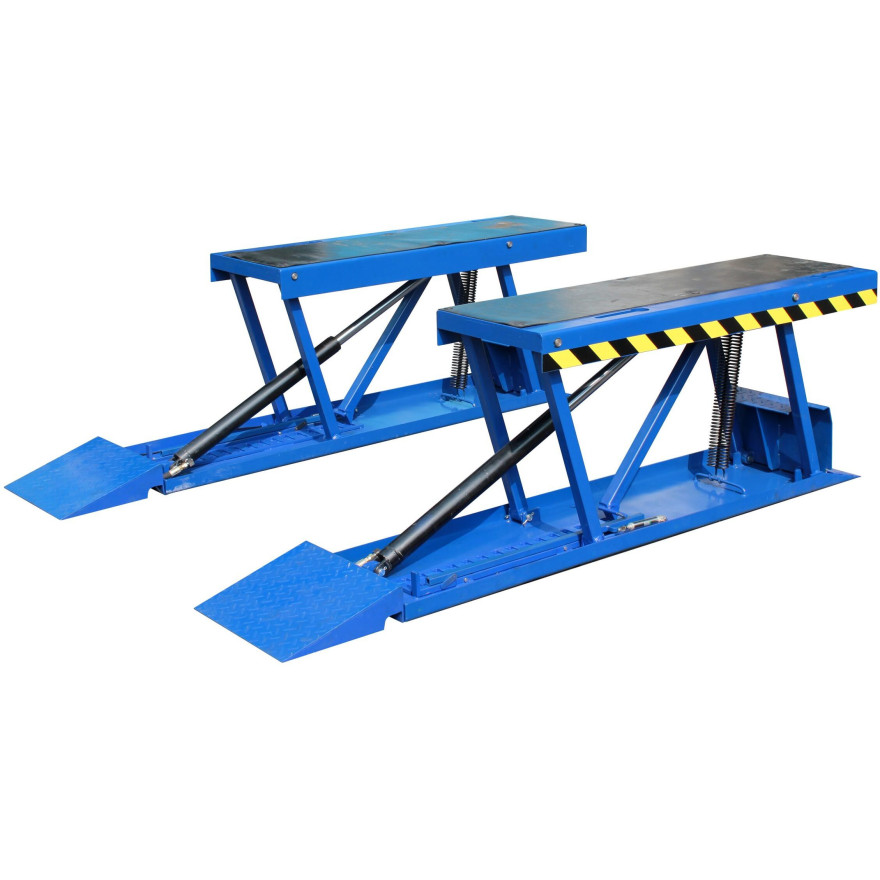

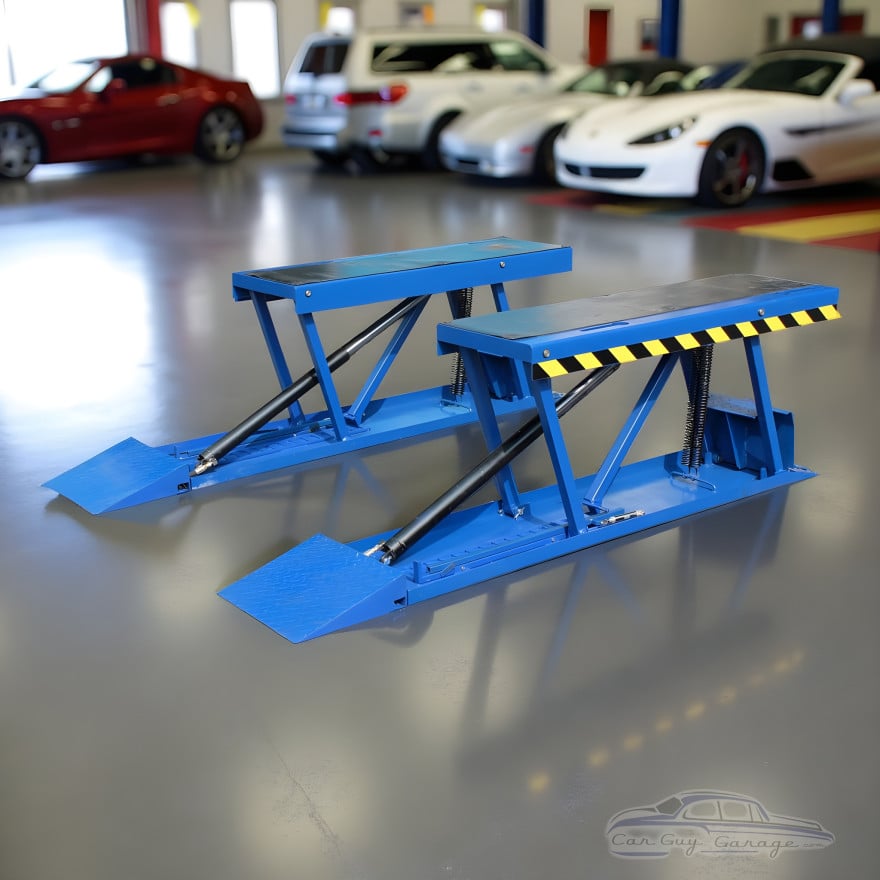

Low Rise Car Scissor Lift - 6,600 lb Floor Mount, Air Lock Release

Meet the shop upgrade that makes routine undercar and wheel work feel a whole lot less like crawling around on cold concrete. This low rise car scissor lift is aimed at home garages, quick-lube bays, detailers, and small shops that need real lifting capability without going to a full-height lift. It is a smart step up when you want faster access for oil changes, tire and brake jobs, and detailing in a tighter bay. Pull in, set up, lift, and get to work.

Specifications

• Capacity: 6,600 lbs
• Floor mounted design
• Low drive over height
• Single point pneumatic lock release
• Pit lift to extend quick lube services
• Rubber spacer blocks included
• Overall Length: 83-1/4"
• Overall Width: 66"
• Lifting Height: 28-1/2"
• Min. Pad Height: 4-1/4"
• Lifting Height with Adapters: 30"
• Width Between Runways: 0 to 29-1/2"
• Width of Runways: 18"
• Lifting Speed: 40S
• Pad Length: 53"
• Ship Weight: 770 lbs
• Power: 115V -15 Amp - 1PH

Installation Manual and Operating Instructions

To read the installation manual and operating instructions click here

Typical Garage Ceiling Heights

• Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
• Two Full Size Cars: 120" / 3048 mm. (10 ft)
• One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)

Shipping and Unloading

This lift will arrive at your location on a flat bed semi truck. If you want to unload the lift at your home garage, we suggest calling up a tow truck company that has a tow truck with a boom on the back that is capable of hoisting the lift off the shipping truck when it arrives. It is the customer's responsibility to have the necessary equipment to off-load the lift upon delivery.

If your space calls for a low profile car scissor lift instead of a towering post lift, this setup brings the right kind of confidence to everyday service work. Check the measurements, plan your unloading, and get your bay ready for a more capable garage routine.
