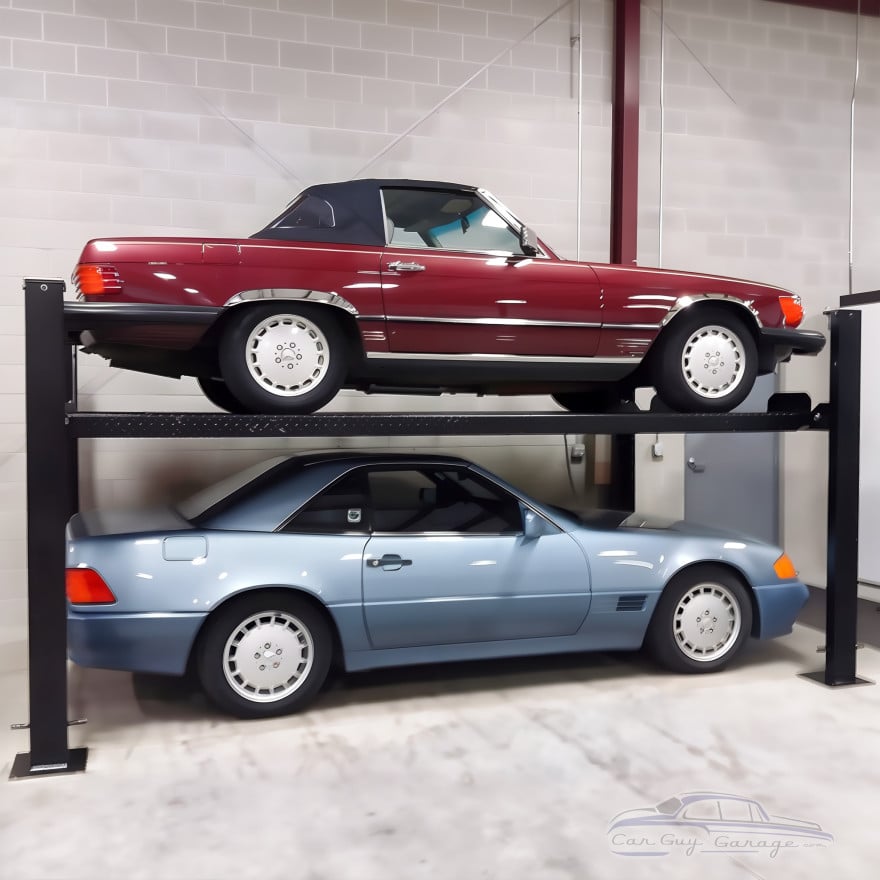

9,000 lb 4-Post Deluxe Car Storage Lift, Extended Length and Height

Build the garage you have always wanted with this 9,000 lb 4 post car lift in extended length and height. It is a commercial-grade lift built for vehicle storage or general service, with steady cable-driven performance, wide drive-through access, and smooth lifting for daily drivers, weekend cars, and shop work.

• Industry leading runway length and drive-thru width
• Cable driven
• Single point manual lock release
• Adjustable locking positions
• Slack cable safety

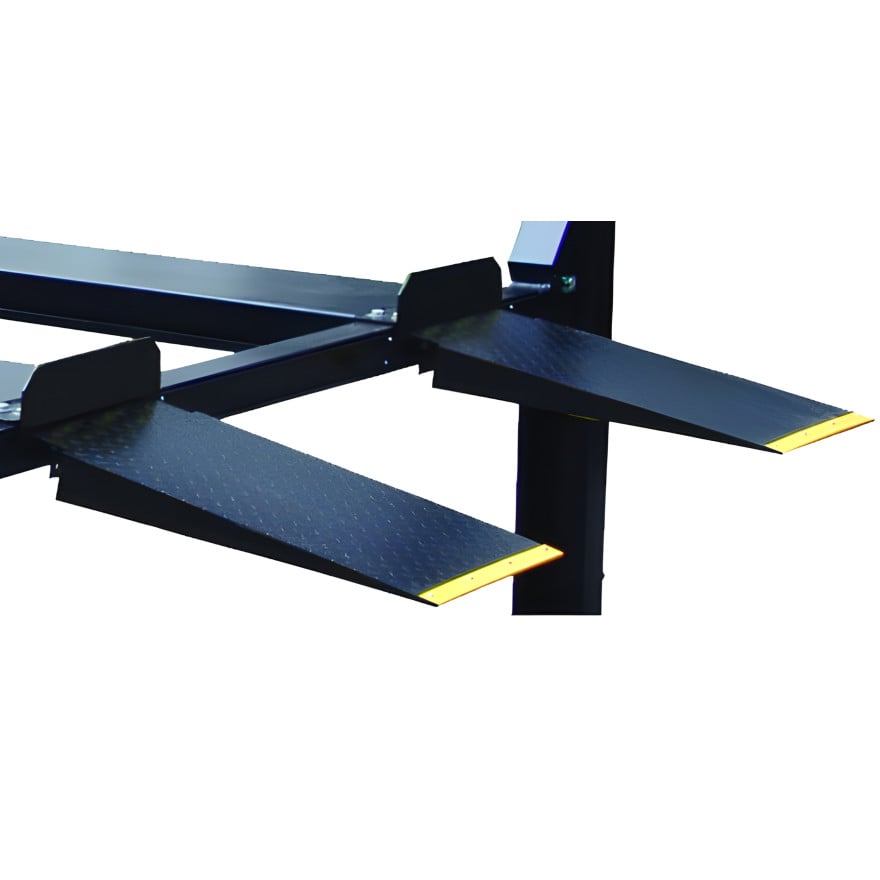

• Steel approach ramps
• Great for storage and/or general commercial service
• Includes drip trays, jack tray, and poly caster kit

Specifications

• Capacity: 9,000 lbs
• Overall Length w/Ramp: 239"
• Overall Width (Outside Base Plates): 123"
• Overall Height: 97"
• Lifting Height: 85"
• Width Between Posts: 111-1/2"
• Length of Runways: 188-1/2"
• Width of Runways: 20"
• Lifting Speed: 100S
• Maximum Clearance under Track: 81"
• Cable Diameter: 3/8"
• Base Plate Size: 12" x 12"
• Lock Position: 11
• Ship Weight: 2,354 lbs
• Power: 115V - 20 Amp - 1PH
• Concrete Requirements: 4" Min. Thickness / 3000 PSI

Planning your auto lift in the garage? Typical ceiling height guidelines:

Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
Two Full Size Cars: 120" / 3048 mm. (10 ft)
One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)

This unit features manual locks and does not require an air supply to disengage them.

Customer-Selectable Options

• Power Unit: choose 110V/1 Phase or 220V/1 Phase 30 Amp Fuse.
• Sliding Jack: choose Without or 4,500 lb Sliding Jack. The optional sliding jack is low profile, has a 4,500 lbs capacity suitable for passenger cars, and is equipped with a hand-operated pump.
• 90 Degree Power Unit Bracket Kit: choose Without or Power Unit Relocation Kit. The bracket can be mounted on the front or rear of the power unit column, has a powder coat finish, and includes mounting hardware.

This lift will arrive at your location on an LTL semi truck. To unload the lift at your home garage, we suggest calling a tow truck company and scheduling a truck with a boom that is capable of hoisting the lift off the shipping truck when it arrives at the delivery location. It is the customer's responsibility to have the necessary equipment to off-load the lift upon delivery.

To read the installation manual and operating instructions click here

Whether you are making room for another keeper or setting up a cleaner service bay, this extended lift helps maximize garage space without overcomplicating the setup. Choose the power unit, sliding jack, and relocation kit configuration that best matches your space and how you work.
