- Est delivery : Oct 14 - Oct 22
- Model: 69323
Get your coupon code

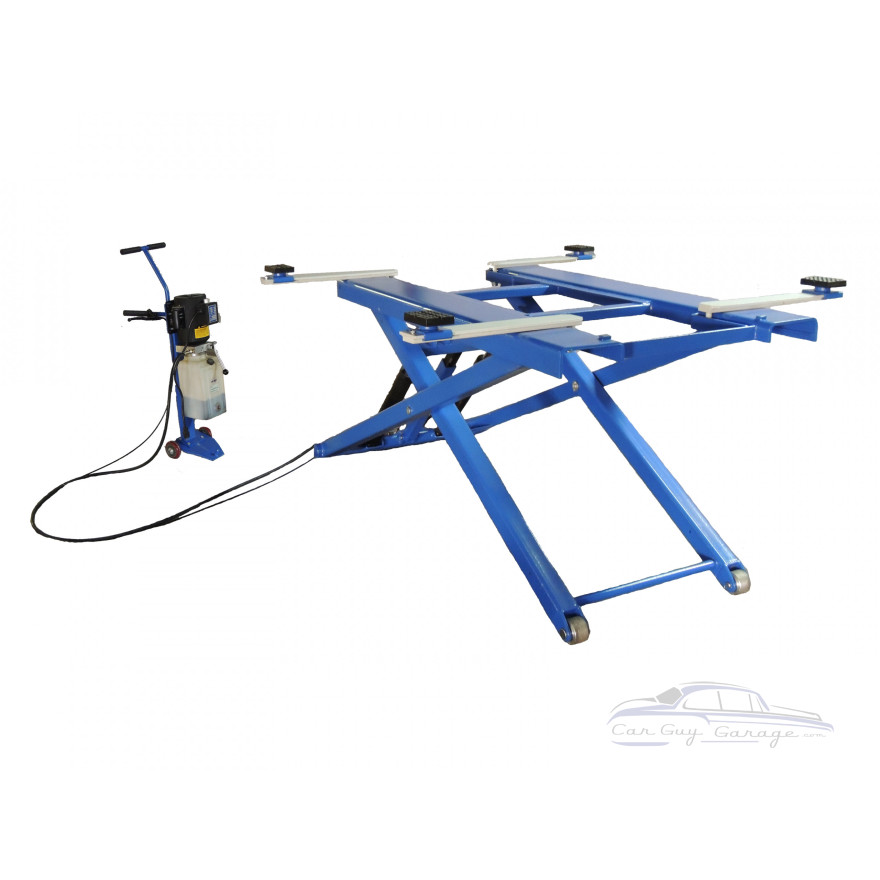

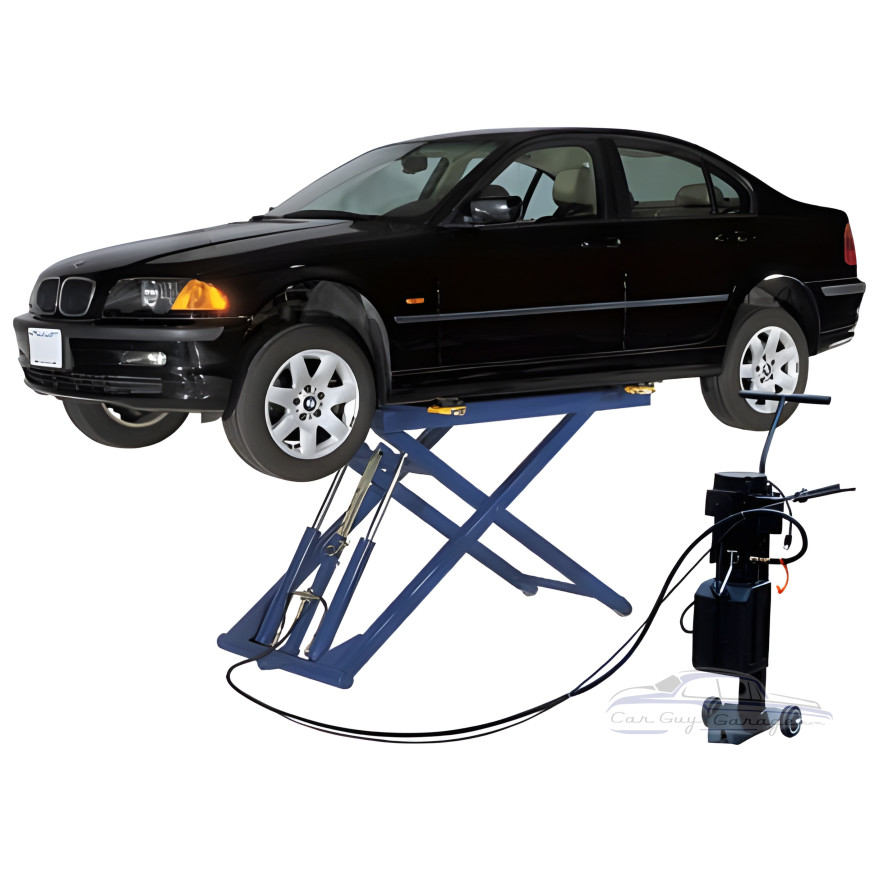

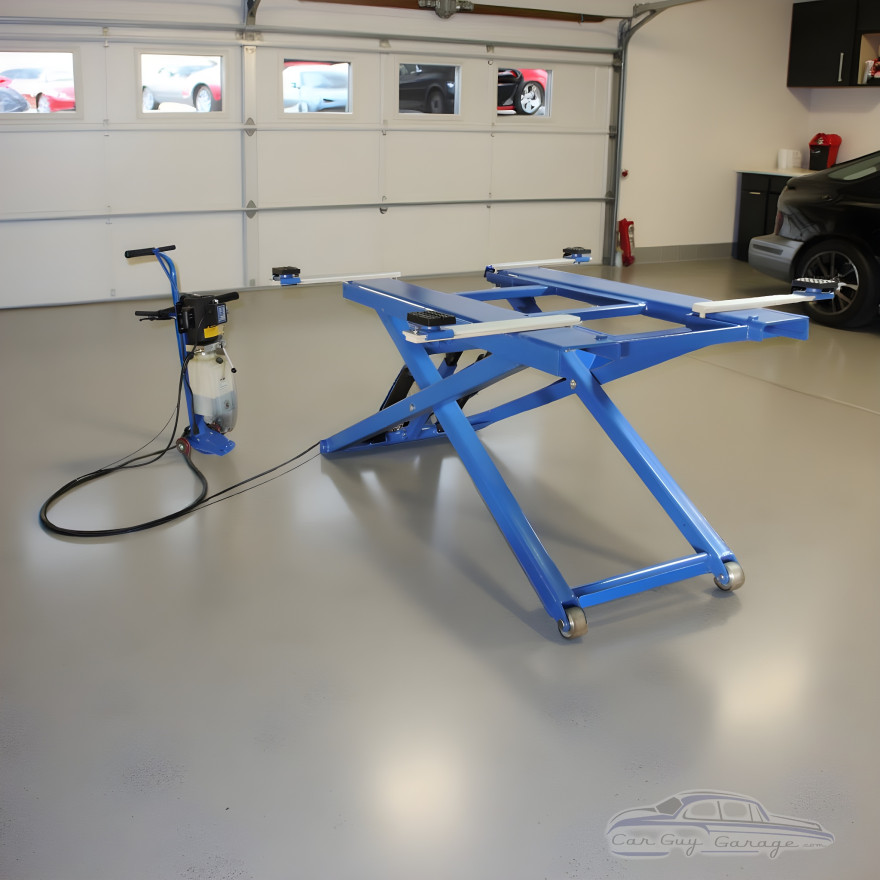

This 6000 lbs Mid-Rise Scissor Lift is will lift cars, vans and light-duty trucks.
Features:
- 6,000 lbs capacity
- 48" rise height
- Portable design
- Dolly mounted power unit
- Single point lock release
- Extended adjustable lift arms
- Durable rubberized lift pads
Specifications
Capacity | 6,000 lbs |
Overall Length | 96-1/2" |
Overall Width | 39-5/8"- 62" |
Lifting Height | 48-1/2" |
Min. Pad Height | 7" |
Lifting Height with Adapters | 54" |
Width Between Runways | NA |
Width of Runways | NA |
Lifting Speed | 40S |
Pad Length | 24"min / 83" max |
Ship Weight | 945 lbs |
Power | 115V - 15 Amp - 1PH |
To read the installation manual and operating instructions click here
Typical Garage Ceiling Heights:
Two Compact Cars/ Low Profile Sport Cars: 114" / 2896 mm. (9.5 ft)
Two Full Size Cars: 120" / 3048 mm. (10 ft)
One Full Size Car/One SUV: 138" / 3505 mm. (11.5 ft)
This lift will arrive at your location on an LTL semi truck. If you want to unload the lift at your home garage, we suggest calling up a tow truck company that has a tow truck with a boom on the back that is capable of hoisting the lift off the shipping truck when it arrives. It is the customers responsibility to have the necessary equipment to off-load the lift upon delivery.
